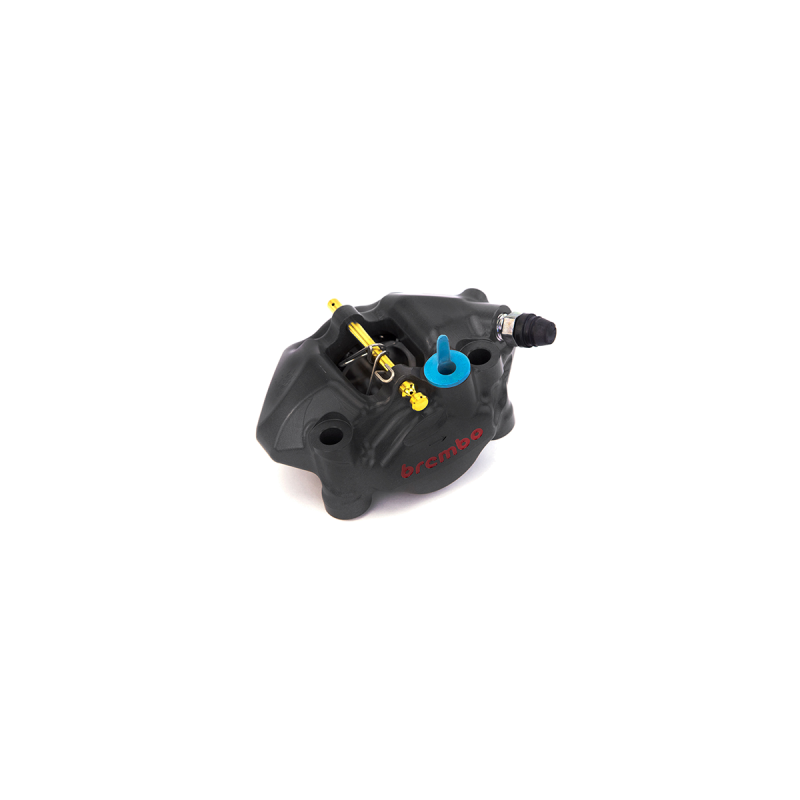

Brembo Caliper P2.34 Monobloc 60mm Front Right

Item Summary

60mm spacing

2 pistons

30mm piston diameter

About the Product

Monobloc brake caliper for Racing discs (30 mm brake area)!

P2 34 CNC Radial Monobloc - brake caliper 60 mm distance for fixing, especially for Moto 3 and ex 125cc Racing

Brembo Racing Pure, hard anodized

(ideal for 30 mm brake ring)

Specifications:

- Distance of the mounting hole 60 mm with offset 20,5 mm for the pure racing.

- 2 pistons, titanium with 2 x 34 mm in diameter

- Hard anodized surface

- 2 individual pads / pads are held with a 2 titanium pins

- Brake Fluid DOT 4 or 5.1

- Hand-painted, red Brembo - Logo, a sign of Brembo Racing Products

- Weight approx 320 grams

- Delivery without pads M049Z04 (part.-no is for 4 pads / 2 calipers!)!

Technical Characteristics

Position: Front

Caliper Body: Monoblock

Fixing: Radial

Number of Pistons: 2

Disc Height: 30mm

Piston Diameter - 34mm

Construction Material - CNC Material

Finishing - Hard Anodized

Bridges: 2

Weight (w/o pads) - 320gr

Brake Fluid - DOT 4

Hardware - Titanium

Pistons - Titanium

Center to Center - 60mm

Offset - 20.5mm

Pads Included: No

Spare Parts

Bleed Screw Cover

Bleeding Screw

Pin

Spring

Spindle

Thermotapes 88-127 degrees

Thermotapes 132-171 degrees

Z04 Brake Pads - M049Z04
