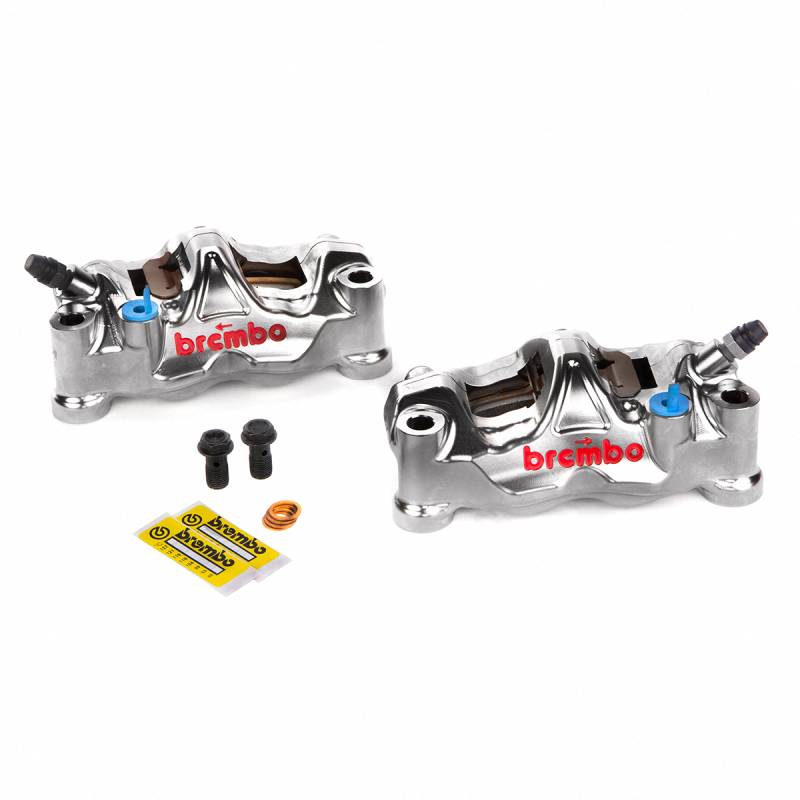

Brembo Caliper Set GP4-RX Radial CNC 130mm Nickel

220B01130
Radial Mount, CNC, 130mm Mount Spacing, Nickel


The body of this caliper is made entirely from billet and consists in two mechanically connected pieces. Particular attention was dedicated to finding high braking power and stiffness values, obtained tanks to painstaking design, the use of carefully selected raw materials and ultra modern metal machining technology discoveries.
The hydraulics were the focus of a careful fine-tuning. The use of four 32 mm diameter pistons allowed a further increase in braking power and modularity.
This model implements a surface finish borrowed from MotoGP. The nickel plating, in addition to giving it a decidedly attractive look, allowed the already strict machining tolerances to be refined, all to the advantage of performance and operating precision.
The brake pads slide in specific guides, machined onto the body of the caliper itself, which allow brake pad pins to be eliminated.
The Brembo logo is embossed and hand painted in classic Brembo Red. The product, provided in a kit, includes sintered brake pads which represent the absolute best quality available on the market today. The kit also contains an instruction manual, a set of Brembo stickers and extremely useful heat adhesives used in racing to control caliper operating temperature, which are indicative of the product’s racing nature.
Availability: Ships within 24-48 hours. Please note supply-chain related delays are possible. We will contact you with an ETA once your order has been processed
Pricing: $1,549.00

Qty:

Description

TECHNICAL FEATURES

Position FRONT
Caliper Body 2-PIECES
Ø Pistons mm 32
Pistons Q.ty 4
Disc height mm   32-34
Material Billet aluminium
Surface protection Nickel coating
Piston material Aluminium
Weight w/o pads (gr) 1000
Mounted pads included No
Offset (mm) 22.5
Note

2 calipers kit

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 18.0 lbs.
  • W16.0000” x H16.0000” x L16.0000”
