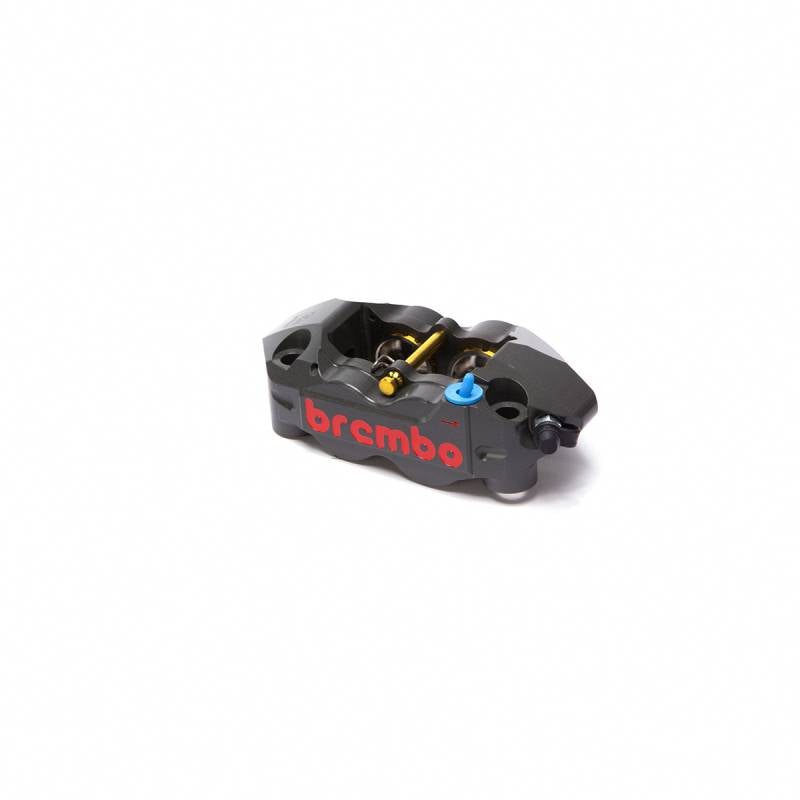

Brembo Caliper P4.32/36 Monobloc (2 Pads 1 Pin) 108mm Front Right HA

X973761
Radial Mount, 108mm Mount Spacing, Front, Right, Hard Anodized


Monoblock caliper, strictly racing, machined entirely from billet thanks to the use of numerically controlled equipment. The extremely low weight, just 649 grams without brake pads, and the use of titanium mounting bolting and pistons make it one of the best performing calipers in the entire Brembo range. The hydraulics were the focus of a careful fine-tuning. The use of four 32 and 36 mm differentiated diameter pistons allowed a further increase in braking power and modularity specifications.
The Brembo monoblock calipers made from billet are derived from Brembo’s great experience in racing which, crossing over into each phase of the production process, has allowed the mass/stiffness ratio and braking performance to be increased. These calipers contribute to the highest performance possible with a bike caliper and are the result of precise design calculations, as well as the use of the most advanced metal machining technologies available.
For this type of caliper we recommend the use of a “low strip” brake disc. For more information contact your local distributor.
This Component is designed and manufactured to be used exclusively in racing competitions and, therefore, the product shall be installed through specific adaptors not included in the packaging of the component and by highly qualified and competent professionals working in the “racing” field. Please contact our distributor for any further clarification.
Availability: Ships within 24-48 hours. Please note supply-chain related delays are possible. We will contact you with an ETA once your order has been processed
Pricing: $2,399.00

Qty:

Description

TECHNICAL FEATURES

Position FRONT
Caliper Body MONOBLOCK
Ø Pistons mm 32-36
Pistons Q.ty 4
Disc height mm  30
Material Billet Aluminium
Surface protection Hard anodized
Piston material Titanium
Weight w/o pads (gr) 649
Mounted pads included No
Offset (mm) 22,5
Note X97.37.60 left caliper X97.37.61 right caliper



Details

  • X973761
  • X973761
  • Brembo
  • Brakes
  • Ships within 24-48 hours. Please note supply-chain related delays are possible. We will contact you with an ETA once your order has been processed
  • New
