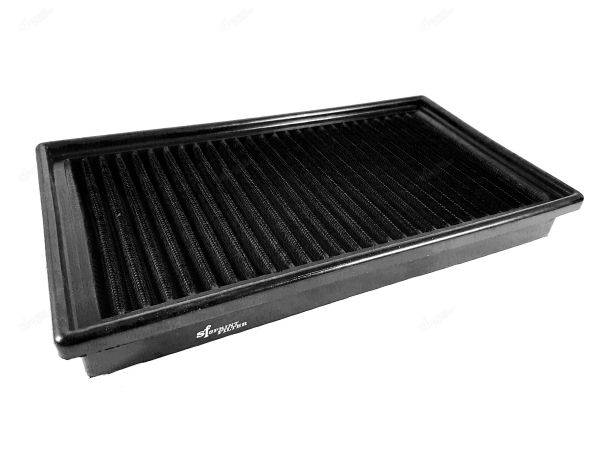

Sprint P08 F1-85 2020 K67 BMW S1000RR

402116
Sprint Filter P08 F1-85 BMW S1000RR (2020) K67 model
Reinforced polyurethane frame to aid installation
Single layer waterproof polyester
P08 F1-85 material currently used in MotoGP and WSBK
Highest existing permeability of any air filter on the market
Innovative polyester material allows for consistent airflow
Steel wire mesh with epoxy varnish finish
Patented PTFE (Teflon™) treatment creates a waterproof barrier
Optimized filter surface area provides more airflow, more power and more filtration
Increased air permeability and filtration efficiency when compared to cotton air filters
Airflow: 15,000 l/m2/sec. / Filtration: 85?m
Can be cleaned using only compressed air
Dry filter, no oil treatments required
Direct OEM replacement
1 year warranty
Availability: Ships within 24-48 hours and ships directly from our supplier. Please note supply-chain related delays are possible.
Pricing: $249.00

Qty:

Description

About Sprint Filter: Established in 1952, Sprint Filter started building high performance air filters and intake systems. Ever since their inception products have always been highly innovative and based on ongoing research and development of new filtering fabrics and intake systems. Sprint Filter air filters are widely gaining in popularity in the world of racing. Many top teams have chosen them, with their better performing polyester filter, for winning the World Championships.

About the P08F1-85: Developed and used by the leading Factory Teams in MotoGP and WSBK, P08F1-85 is the latest technological advancement from Sprint Filter with the highest existing permeability of any air filter on the market (allowing an impressive air flow of >15,000 l/m2/sec.), guaranteeing a filtering power of 85 μm that makes it even more exclusive.

All these features make P08F1-85 an air filter particularly suitable for racing, but with the special Sprint Filter technology it can also be used on the most sophisticated latest generation of 600cc and 1000cc supersports bikes that, in most cases, do not need fuel adjustment with special mapping of the ECU or additional control units. However, their use taps 100% of the potentials of this technological jewel.

Polyester - A Winning Technology: On the one hand, air filters have to guarantee good air flow. On the other, they have to filter large particles so they don't end up in the cylinders. The two operations are opposed to each other, and the best air filter is the one that optimizes these two functions. Production motorbikes are normally fitted with paper filters, while the usual solution for sports filters was oil soaked cotton. With its adoption of the polyester membrane filter, Sprint Filter has taken a huge leap forward, making all previous systems obsolete.

Structure: Polyester fabric is extremely permeable and solid and cannot be affected by folding during construction, by the difference in pressure during operationon or by maintenance. On the other hand, the cotton filter has a weft that depends on the overlapping and number of layers used. Moreover, it tends to lose its shape during these phases and, as a result, some zones will benefit from a high filtration value while others will filter poorly.

Main Features:

  • Constant filtration and air flow value over time.
  • In terms of efficiency, the P08 polyester filter retains 93.13% of 100 μ. particles as compared to the 76.42% that cotton retains.
  • Construction of the support in just one material, to prevent unwanted separation of different materials.

Steel Mesh: Another step forward has been taken for the P08 and P16 air filters, which once again distance themselves from the competition owing to the use of innovative technologies. After using the polyester filtering element, Sprint Filter is the first company in the world in this market to use steel mesh with epoxy varnish to support the membrane filter. The advantages? The strength of the wire allows a wider mesh to be woven, with the free surface increasing from 66% to 80%, which means the filter can be made with superior structural characteristics.

Using steel instead of a light alloy does not increase the weight. Not only is the mesh wider, but the diameter of the wire used is smaller than that of the past, and this more than compensates for the greater specific weight. Finally, even the look of the filters has now improved: less polyurethane seepage is noticed on the filtering map (orange for P08s, white for P16s and P037s, black for P08F1-85s) so it is better defined.

"Waterproof" Tissues: Sprint Filter air filters are the only filters in the world with "waterproof" characteristics (Sprint Filter patent, meaning SF is the only air filter manufacturer in the world that produces waterproof air filters for internal combustion engines), making the product even more exclusive and suitable even for use in more demanding conditions.

Air Flow: The polyester air filter guarantees a very high air flow that neither cotton filters (whose permeability depends on the number of layers used), nor OE paper filters can achieve. Remember the simple equation: More Air = More Power!

Filtration: The construction precision of the polyester filter offers a filtration degree equal to that declared and is constant over time. The cotton filter, instead, has extremely variable openings, from just a few microns to several tenths. This means that, initially, the cotton filter has a low filtering power (equal to 50% of a contaminant with a range of between 5 and 200 μ). Only after a dust cake forms on the surface does the filtering power increases up to 80% of the above-mentioned range, but there is a resultant drastic pressure drop. In short, a cotton filter has low filtering power for half of its lifetime, while for its remaining lifetime it has a very high pressure drop.

Efficiency: Many dyno tests have confirmed the importance of a flow with a minimum degree of impedance. A 4-cylinder 1000cc bike (fitted with a P08 filter) without any remapping of the control unit, supplied more torque and 2.5 HP more at half the power curve, in that area that can guarantee a "fuller" response to the throttle.

In its engineering course, Trinity Saint David Swansea University tested the most popular motorcycle air filters on the market, checking the performance of each filter with a Super Flow flow bench. The test was set up in a simple but effective way: different brands of filters were fitted on a square section pipe, through which a set quantity of air was pushed.

The curve distribution is evident: the polyester Sprint Filter filter definitely breaks away from the "group" of cotton filters (among which the Sprint Filter waterproof polyester filter ranks very well), and sponge filters are positioned at the bottom of the chart. The structure of the filtering elements was then checked under the microscope, and in this case as well the uniformity and compactness of the polyester were obvious.

Maintenance: Maintenance of the air filter is important for the protection, care and efficiency of the engine. A clean and undamaged filter will always ensure the correct quantity of clean air for the airbox.

Another air filter maintenance aspect not to disregard is how long it lasts. Apart from the time required for disassembly and reassembly, cotton filters demand downtime for washing, drying and oiling the filtering element, all operations not necessary with a polyester filter. The Sprint Filter air filter cleaning procedure is, in fact, extremely easy and quick: just use an air jet in the opposite direction of the suction to remove most of the debris collected. No washing or drying is necessary, so it can be refitted straight away.

For exceptionally dirty filters begin with compressed air, then using a common household detergent, allow the filter to soak for 15-30 minutes and gently agitate the filter in the solution. Rinse the filter with clean water until the water runs clear. Allow to air dry thoroughly and then reinstall. Reminder, Do Not Oil.

Race Proven Performance: Sprint Filter has been a part of World Championships in MotoGP, Moto3, Superbike, Supersport, and Superstock. Sprint Filter is the first choice of championship contenders. Research and development is constantly carried out at the highest levels of racing in search of maximum filtration without compromising power.

Fuel Economy: By optimizing the air/fuel mixture the Sprint Filter allows you to consume less fuel all the while gaining more power!

Long Lasting: If cared for properly, the Sprint Filter will last for the entire time you own your bike.

sprint technical sheet

Fitment

  • S1000RR (2020)
  • S1000RR (2019) European Model Only

Videos

Details

  • 402116
  • 402116
  • Sprint Filter
  • 2020 BMW S1000RR
  • Engine Performance
  • Ships within 24-48 hours and ships directly from our supplier. Please note supply-chain related delays are possible.
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W18.0000” x H12.0000” x L6.0000”
