MWR Air Filter for Honda CBR500R, CB500X, & CB500F (2013+)
Ask us
- $95.95
- $95.95
- Unit price
- per
4 interest-free payments of $24 with Affirm. See if you qualify
Vendor:
MWR
SKU:
MC-030-15
This item is out of stock but available to order.
See Availability Remark below.
Choose Your Product Options:
Choose Region *
Choose your region
Painting Format *
Choose between high resolution ready-to-print digital image or a museum quality canvas print
Image Resolution *
Choose Image Resolution
Frame
Portrait Canvas Size (With Frame) *
Choose Canvas Size
Add HQ Digital Image
Add a high resolution 300 DPI ready-to-print digital image to go along with your canvas print
Mint as NFT
Mint this AI artwork as an NFT on Polygon and display it in our Legacy AI meta gallery
Select Your Bike to Verify Fitment
MWR Air Filter for Honda CBR500R, CB500X, & CB500F (2013+) MC-030-15
Not a copy of the standard air filter, always searching for solutions, either it’s the performance , protection or fitment . Caution: clean and re-oil at least once a year with MWR air filter oil & cleaner . Remapping the ECU or the Fuel Control Module is recommended
MWR Air Filters are built upon 2 decades of experience in developing and producing high performance air filters for road, race, and off road use.
This experience has been gained working with some of the biggest air filter companies in Europe in areas such as World MX, Dakar (bikes, cars and trucks), Moto GP, WSB, BSB, AMA and even Rallycross. The knowledge gained during this period was invaluable and led MWR to develop their range of performance foam filters.
The Performance Filter (MC-030-15)
This filter is a direct performance upgrade from your bikes standard filter. Offering better airflow and protection than the original, this filter will (when maintained correctly) last the life of your bike, simply clean and re-oil once a year.
The Full Race (RACE ONLY) air filter (MC-030-15-R)
Developed
on the track, NOT on a dyno but in real life on bikes with Data-loggers
being tested and developed in part with TOP Teams for ultimate
performance. With new materials and a new design, protection is on the
same level as the filters above, only for a shorter period of time
before they must be serviced.
It makes the bike stronger and
smoother, therefore it saves tires and fuel. Check the air filter every
race weekend and always start each race weekend with a well oiled
filter. This air filter is not developed to reduce the inlet noise. Due
to the design features of this filter we do not recommend it for road
use.
IMPORTANT NOTE:
Due to the special design we created a very large opening so a modification to the airbox lid might be very clever to increase power even more compared to all other sportsfilters for this bike. WORLD SUPERBIKE TECHNICAL DIRECTOR Scott Smart has already this modification approved for the WSS300 class

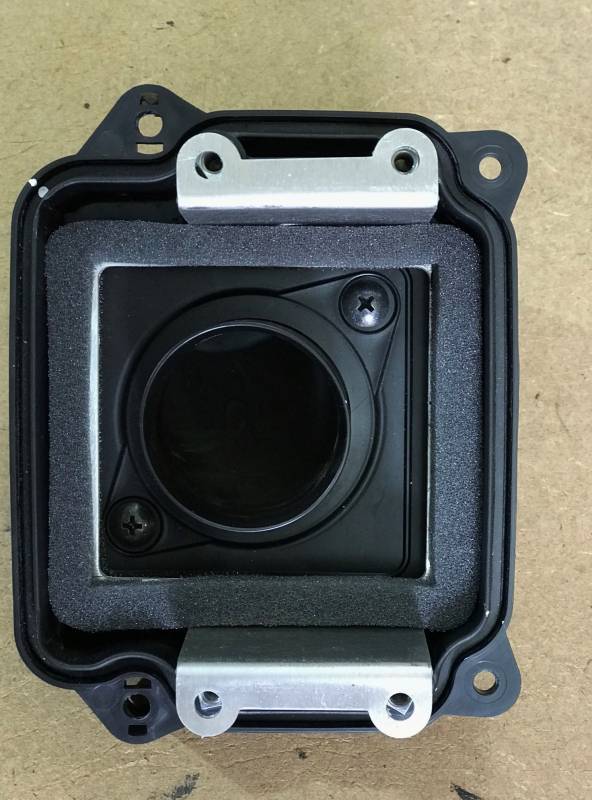

Modification is quite simple make a hole of 80x80 mm in the middle of the airbox lid (see pictures attached to this post) . On one picture it is clearly to see the difference between stock airbox opening and opening according to our modification
Airbox mod can be done on both road and race bikes ...... but road bikes choose for the roadbike filter and race bikes choose for the racebike filter.
Fuel adjustments or the use of a RapidBike are necessary after the installation and modification
Fitment Info
This product is built specially for the following vehicles
| Year | Make | Model |
|---|---|---|
| 2013 - 2025 | Honda | CB500F |
| 2013 - 2025 | Honda | CB500X |
| 2013 - 2025 | Honda | CBR500R |
