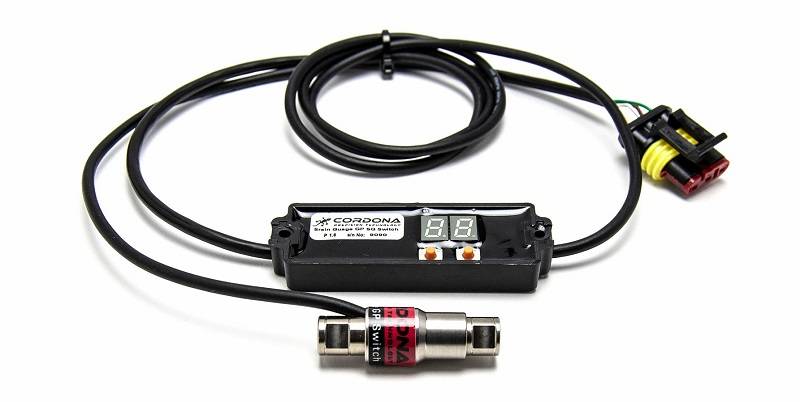

Cordona GP SG Switch Ducati Panigale Quickshifter
Ducati, Cordona, Quickshifter,
Quickshifter for Ducati Panigale 899, 959, 1199, 1199R (2013-2014)
• Senses both Push and Pull linkages
• Automatic set up, logic firmware asks the rider to perform an up shift after installation and the sensor will automatically learn and remember push or pull
• Only 14mm diameter
• Fully computerized, 25mhz processor
• Automatic compensation for temperature, creep and vibration
• Preload set up on digital miniature panel 1m from the Switch, adjustable 1-30kg
• Upgraded in 2012 to 1.2 version, adjustable between commonly open circuit and commonly closed circuit
• Sensor is available as spare in case of crash damage, plug in a new sensor and go
• Absolutely water proof with sealed connectors
• No movable parts
• Sensor has Magic Threads and can take both Right and Left hand bolts on each end; so the sensor can be installed anywhere on the shift rod, to face in either direction
• Super Durable billet made from stainless steel
• Billet made 230mm Shift rod incl. and nuts and studs
• Prototype tested continuously for 7 days, 603 000 upshifts with 45kg force. Equivalent of 12years racing use
• Adjustable killtime, 10-99ms. Preset to 65ms at delivery.
• Suitable for Dyna 2000/4000.
• Can be set to default and used with PQ8 or other ECUs with QS capability.
- Currently our delivery times are 7 to 10 business days from time of order confirmation.
- Item Requires Shipping
- 2.0 lbs.
- W12.0000” x H12.0000” x L4.0000”
