AiM MXK10, Kawasaki ZX-10R, 11-15

AIM MXK10 GEN 4

MXK10-Gen4 is an Aim Dash Logger designed to be easily installed as a full Plug & Play dash logger. The kit is completely compatible with the original connector and with the original bracket fixing points of your 2011-2015 (4th gen) Kawasaki Ninja ZX-10R.

* Please note: if you want your current mileage added to the dash, please state what you want it to be (miles or km) in the notes section of the order.

Features:

• Full Plug and Play Replacement Display – No re-wiring needed for 2011-2015 (4th gen) Kawasaki Ninja ZX-10R.
• Dedicated mount bracket
• GPS module, with bracket and built in world wide track database
• Data logger for download and analysis using Free Race Studio software
• Download by USB or WiFi
• Compatible with the Aim Smartycam Video System
• May be expanded to add lambda or sensors

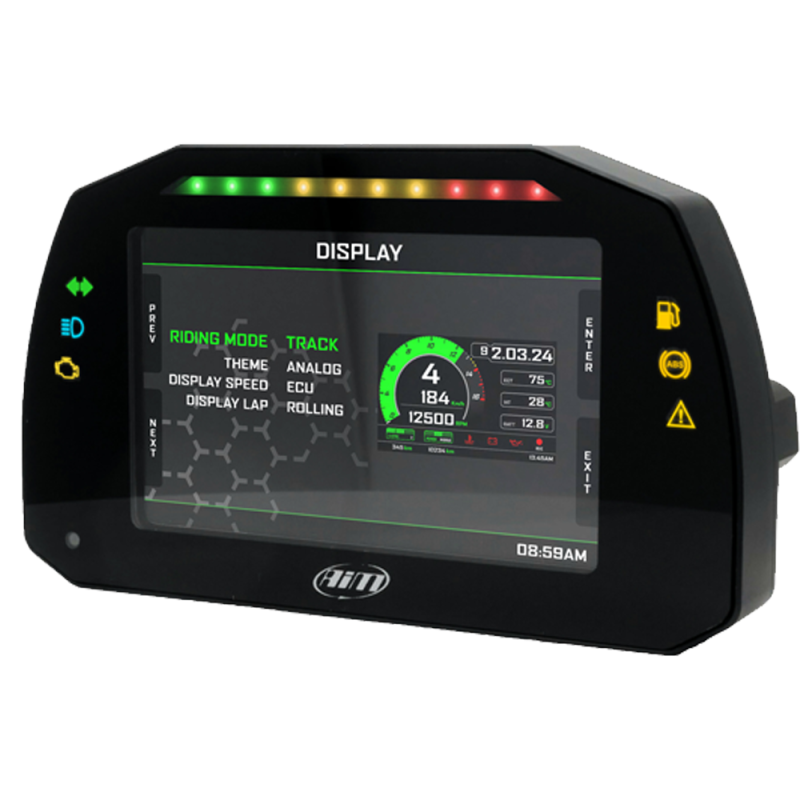

Thanks to its high contrast 5’’ TFT display, reading data will always be crystal clear whatever the conditions. Lightweight by design, the MXK10-Gen4 aluminium body adds to the awesome look of the Kawasaki Ninja ZX-10R, offering a better and more aggressive look.

GPS is an optional fit, included in the kit free, it is not needed to make the system work in any way.

Full Plug & Play Road legal Display

The Aim MXK10 is a full Plug & Play dash display, completely compatible with the original Ninja ZX-10R connector and bracket fixing points of your bike.

WATCH THE TUTORIAL

MXK10 GEN4 Kit

EVERYTHING STILL UNDER COMPLETE CONTROL

GET THE BEST OUT OF AIM MXK10

A Wide, Complete and User-friendly Menu

LAP TIMING AND DATA LOGGING FOR THE TRACK WITH FREE GPS INCLUDED

EXPANSION AVAILABLE IF NEEDED

MXK10 may even manage a wide range of CAN expansion modules in order to let you acquire data also from suspensions potentiometers, brake pressure sensors, lambda values or tyre temperature sensors, in order to gather even more specific data.

EXPANSIONS

MXK10 may even manage a wide range of CAN expansion modules in order to let you acquire data also from suspensions potentiometers, brake pressure sensors, lambda values or tyre temperature pyrometers, in order to gather even more specific data.

Lambda controller

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda values, allows to verify the behaviour of your ECU.

Channel Expansion

It permits to add four 0-5 Volt analogue channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

SmartyCam HD Cameras

The on-board cameras that overlays on videos the data sampled by your logger.

CONNECTION EXAMPLES

WI-FI CONNECTIVITY AND ANALYSIS
