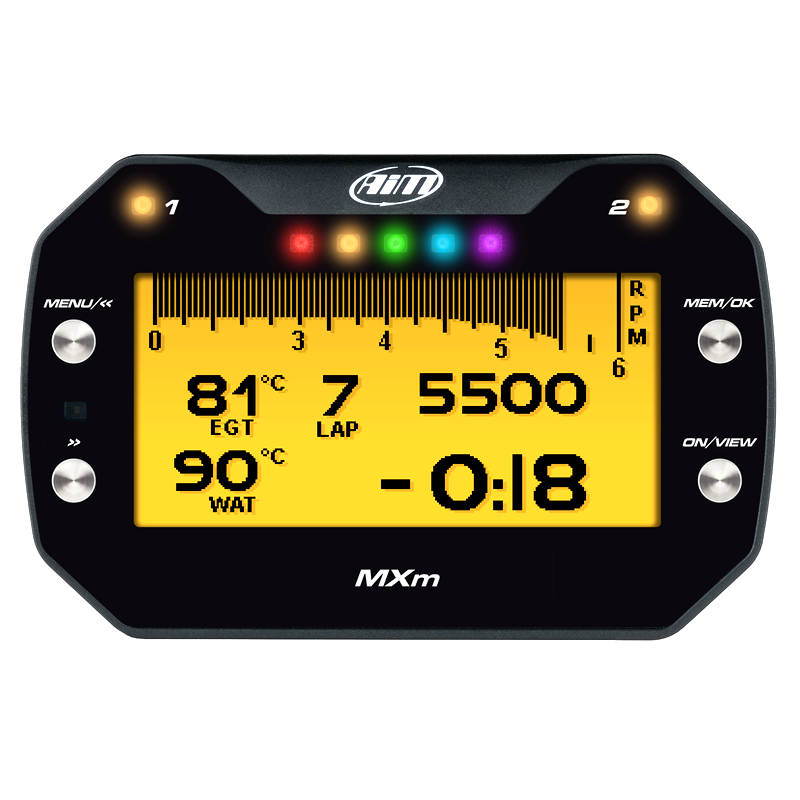

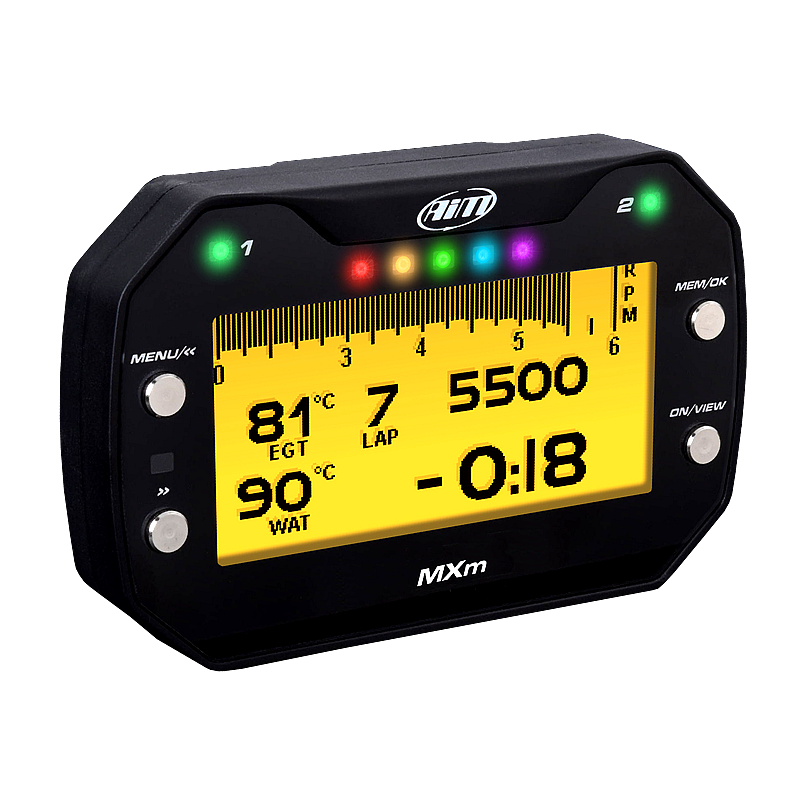

AiM MXM Motorcycle Data Logging Dash With GPS

The Aim MXm 4” Motorcycle Data Logging Dash with GPS, offers a perfect to be fit into any kind of motorcycle providing crucial riding data.

The Aim MXm Motorcycle Data Logging Dash With GPS provides all the info needed by racers. It samples and shows key info like speed, lap times, RPM, gears, it has a 9 axis inertial platform, multiple math channels and much more. Its strengths are the compactness, which makes MXm perfect to be fit into any kind of motorcycle and its plug-and-play usage is complete but simple. The MXm is the perfect device for both Pro and Amateur racers.

A wide range of data sources

MXm samples data coming from your ECU, the internal GPS, the inertial platform (accelerometer, gyro and magnetometer), 4 fully configurable analogue inputs, 3 digital inputs (2 speed inputs + 1 coil RPM input) and predefined math channels.

For the most demanding, the system can be connected to the Lambda controller and to the SmartyCam HD in order to obtain the full Aim experience.

Integrated shift lights and alarms

MXm features a 5 LED shift light array. Choose from a host of advanced multicoloured RGB shift light patterns that can be customized to your liking, and for each unique gear when required. The MXm also features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their colour, select a solid alarm - or flashing one - and the flashing frequency.

Two power outputs

MXm features two power outputs that can drain up to 15 A each. The two power outputs can be configured in order to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/deactivate a cooling fan or circulation pumps, etc. when a certain event happens.

Sharp Liquid Crystal

MXm features a high contrast LCD display, with an outstanding black to white ratio. The wide 268x128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the back light at optimum brightness levels.

The screen can be back lit in one of the seven available colours:

Data recall on screen

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.

Choose your own data layout

You can organise this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.

Wi-Fi connectivity

Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 metres away.

MXm Connection Examples

Race Studio 3

Race Studio 3 is the true 'engine' of your MXm, as it will manage all your activities related to:

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, shift lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyze all data recorded by MXm and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
