Aim MXS Strada Icon

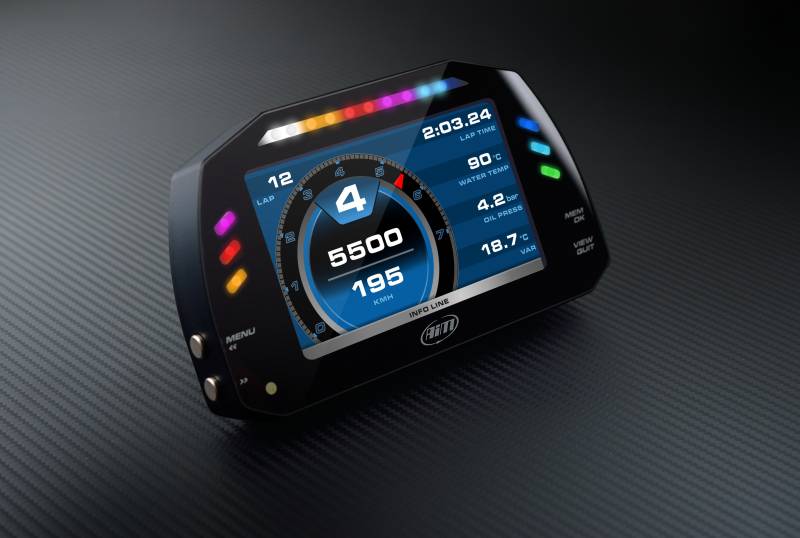

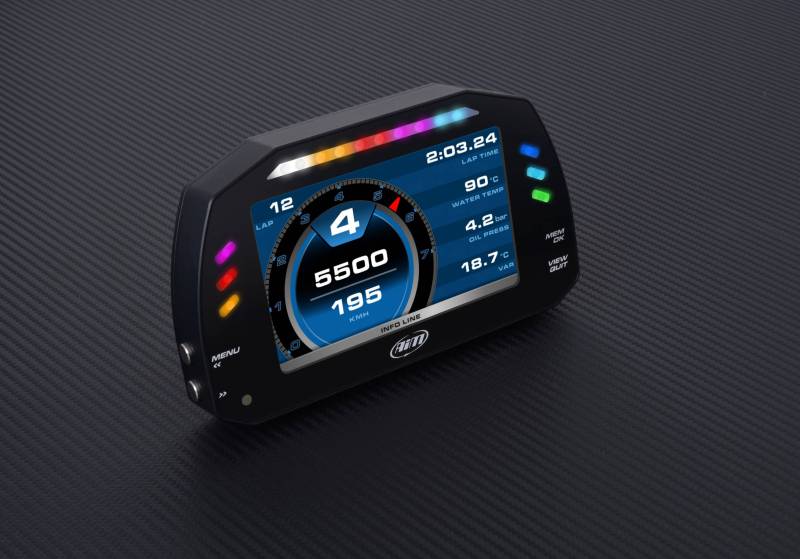

The 5” MXS 1.2 Strada is a Compact Dash Display with Standard Icons. Superb high contrast TFT display with Customisable RGB shift lights for Racing.

The Aim MXS 1.2 Strada Dash Display Standard Icons is the the evolution of MXS Strada which is a 5? color display with great visual impact. It is configurable to show lap times and all the info coming from the Engine Control Unit like analog/digital inputs, pre-defined math channels and optionally, the GPS08 Module.

MXS 1.2 Strada is available in two versions:

Watch Your Data in Pre-Configured Pages

View data such as RPM, water temperature, oil pressure, and much more through our custom pre-configured pages.

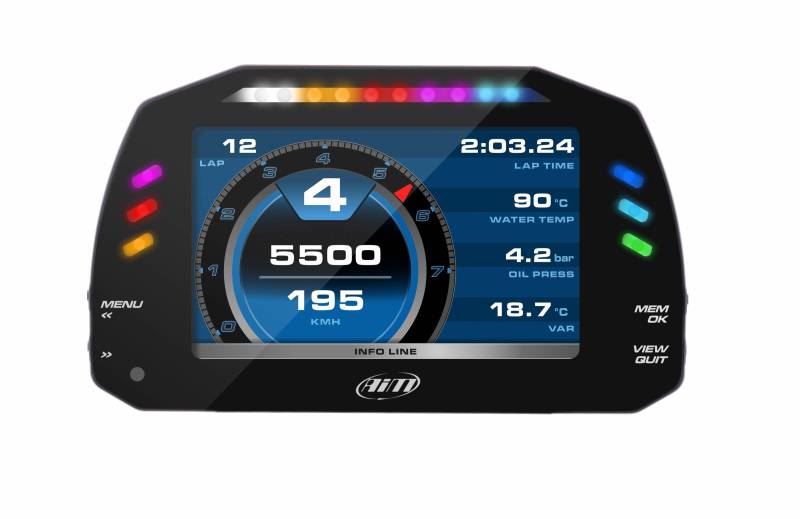

High Contrast TFT Display

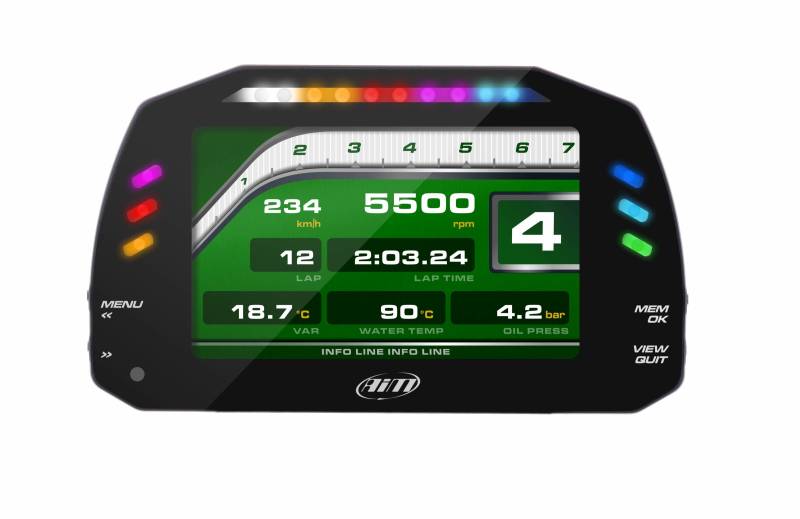

The Aim MXS 1.2 Strada shows with RPM scale, all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can choose the custom pages you wish, including up to four additional fields

A wide library of page styles, defining which data to be shown, their end of scale and measured units. Swapping between pages is quite easy with the Aim MXS Strada using the push buttons provided.

Flexible Shift Lights and Alarms

The shift lights can be set to change colours for each gear when needed, while the alarms can be set to display certain colours in certain events. There is a total of 10 shift lights, and 6 alarm lights. Both are high intensity, colour changing RGB LED’s.

CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Two Digital Outputs

The MXS 1.2 Strada features tow digital outputs that can be automatically activated depending on the analog or digital inputs from the ECU. For examples, they can be used to turn on or off a fan or additional lights when a certain event is triggered.

MXS Strada Connection Examples

Race Studio 3

RaceStudio 3 can be downloaded free of charge and is a great platform to see and analyse all your data from the ECU and the various channels. The data is then displayed in graphs, histograms and tables, making is easy to track and make changes.

Configuration

With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio 3 you can also analyse all data recorded by MXG and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

A Wide Range of data sources

MXG is the dashlogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7? display makes it perfect for wide cockpits installation.

MXS 1.2 Strada Standard With OBD11 Loom. Part. XA3MXSST12A020
MXS 1.2 Strada Standard With CAN ECU Loom. Part.XA3MXSST12A010
