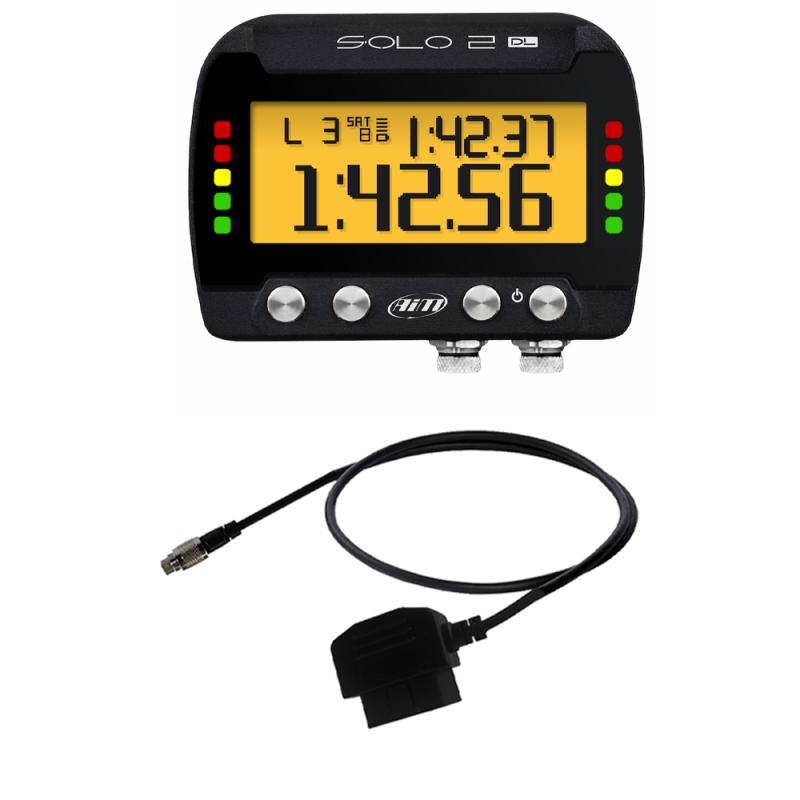

AiM SOLO 2 DL GPS Lap Timer w/ CAN RS232 harness

• Connectable to every ECU for receiving and recording Data


• 10 configurable RGB LEDs for simple Time +/- reference

• Rechargeable Internal Battery


• Multiple use Modes: Speed, Times & Performance

• WIFI with Security for Downloading data

• Internal 4 GB memory

• Automatic GPS Lap Timer


• Simple New open or Closed Track Creation

• Configurable Delta and split times

• Multiple & configurable Backlit Graphical Display

• Database, with more than 4,000 tracks worldwide

• Freely Configurable Display

• Automatic Track Recognition and start / stop

• FREE Race Studio 3 Download

The Solo 2 DL with ECU Connection

Connecting to over a 1,000+ ECUs, we are sure it will work for you.

You can connect your Solo 2 DL to the ECU, with a simple ODB11 plug or hardwired in, to providing you with all your cars information and power, with just one cable.

Incase your ECU protocol is not in the database, no problem: with our ECU Driver Builder, you can build your own, its free in Race Studio 3 configuration software, and you will be able to create your protocol on your own.

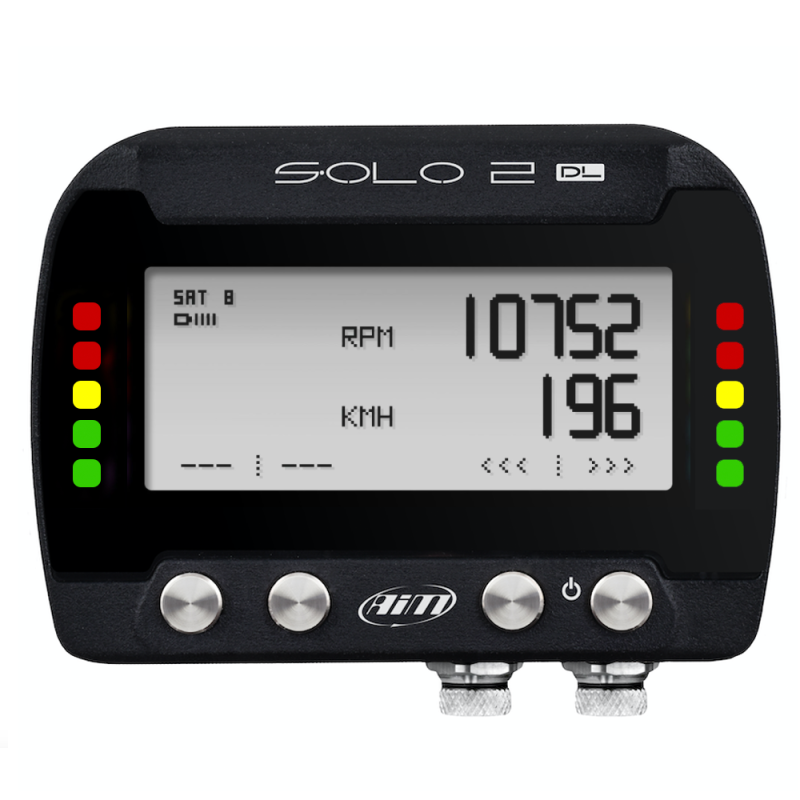

Coil RPM Input

Solo 2 DL now also features a digital input, allowing you to log RPM either from square wave signals (8-50V each signal) or a pulse signals (150-450v) ignition coli trigger-primary circuit.

Multiple Configurations Management

Solo 2 DL can receive up to 10 configurations at one time allowing you to switch among them through keys.

The Most Precise and Easy Way to get Lap Times

AiM Solo 2 DL is the most precise GPS lap timer there is, with the ability to show you your lap delta live as you drive... receiving data from two satellite constellations, from any where on the globe, by using GPS and Glonass, also giving you a significant improvement in data speed and positioning precision.

Powering on, requires only a few seconds and lap times are calculated with a max 2/100 sec of tolerance.

Solo 2 DL gives instant Speed, Timing, Splits live data and predictive lap times.

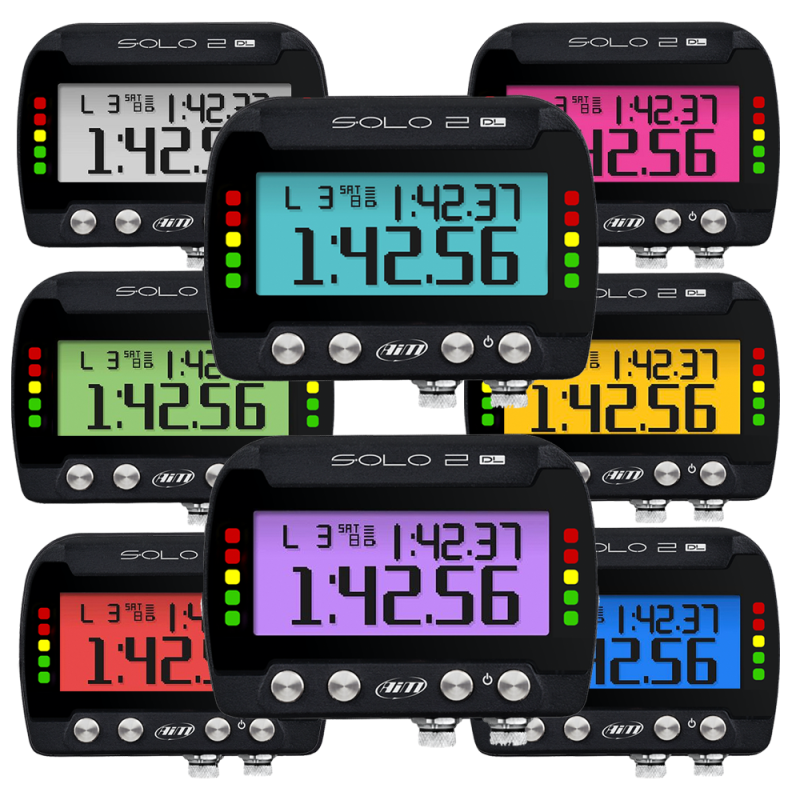

The Solo 2 DL screen can be back lit in one of the seven available colours:

Predictive Lap Timer

The AiM Solo 2 DL has 10 configurable RGB LEDs, and will give you a clear and fast indication of the comparison with your last lap. Predictive page: shows the predicted current lap time in the format you set.

+/- in relation to the Reference Lap Predicted Lap Time

You can custom build the layout of the display, to show the information you choose on 4 reconfigurable pages, your data shown in your way, see an example below.

Solo 2 DL Data Recall Modes

Solo 2 DL can manage two types of data or races:

In each of these configurations, Solo 2 DL gives the complete information during the test, with the data ready to view on the Solo 2 DL or Race Studio Analysis software, immediately after each race or test session.

Data Recall on Screen Data

At the end of your test, you can quickly review all the key information on your display, RPM, Temps Times ECT.

SmartyCam HD or HD GP Connection

The perfect connection to get all your data from the ECU, merge them with the GPS information and transmit everything to the SmartyCam HD, then watch the graphical overlay in the video.

Make it even better and add Multiple cameras to your Solo 2 DL!!!

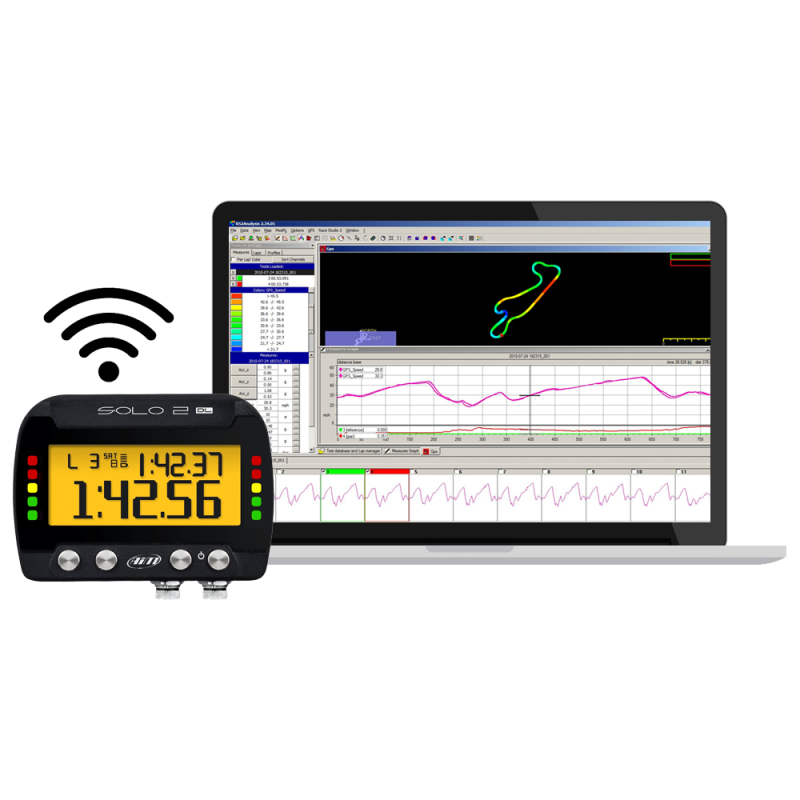

Wi-Fi Communication with the PC

With wifi connectivity you can transfer your data securely and quickly to your laptop or computer without cables.

Solo 2 DL New Track Creation and our Track Database

Solo 2 DL allows you to simply create a new temporary or permanent track layout, whether its a point to point run for rallying, or a closed loop track, it can simply be aded to the solo 2 DL and PC database.

Simply put, if there is no track already, the Solo 2 DL will create a new one...

Prepare to unlock your potential
