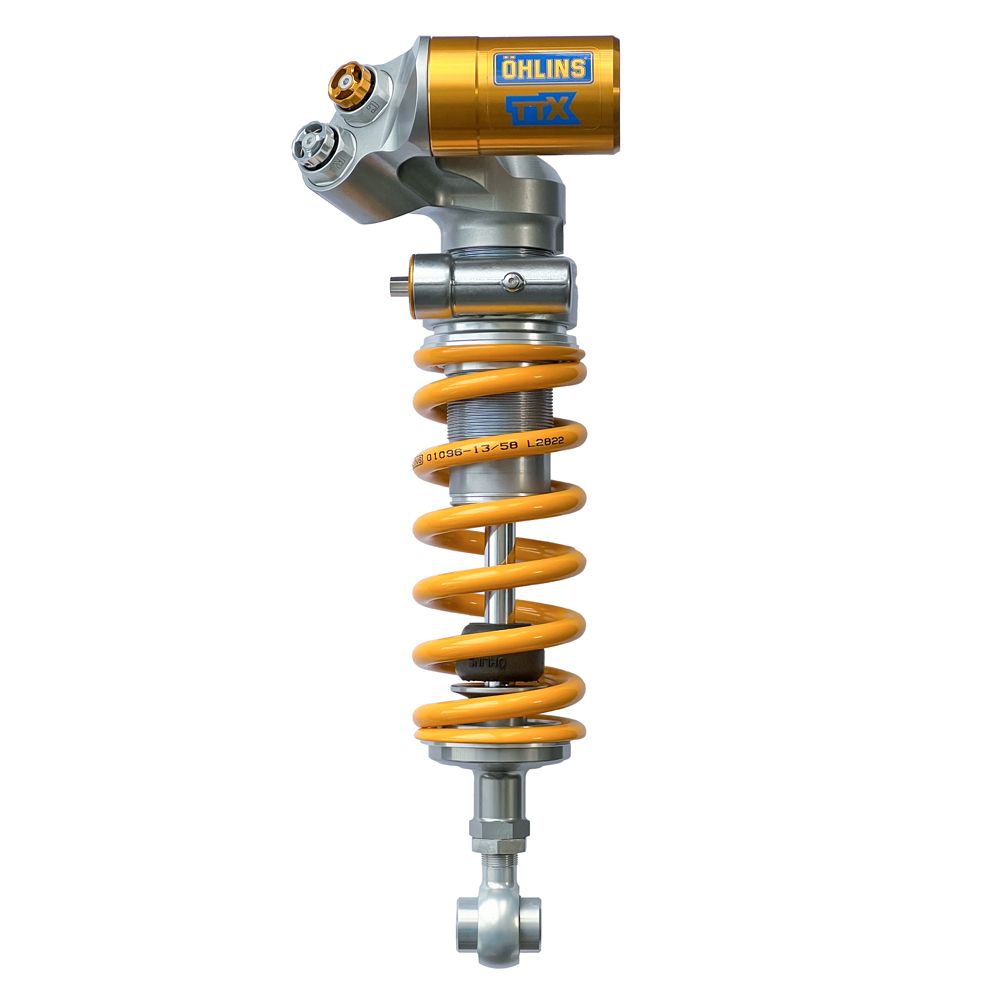

Alpha Racing Öhlins rear shock TTX GP BM 570

Öhlins are continuously striving to improve their products on quality, consistency, and performance. From our latest research and development, we have made many components and setting improvements that we have combined into this shock. The TTX GP features a new type of valve which gives better feedback to the rider, also a new piston and band which together with the new valves enhances grip, stability, feedback, and consistency. The new adjuster knobs make it easier to make changes on the fly with or without tools compared to the old design.

TTX-technology
- Rebound and compression adjustment straight from MotoGP
- Adjustment needles with different flow restriction behavior to improve chassis feedback
- Wider and more precise adjustment range
- Adjustment possible by hand or with hexagon tool

BM 570
Twin tube
Piston diameter: 36 mm

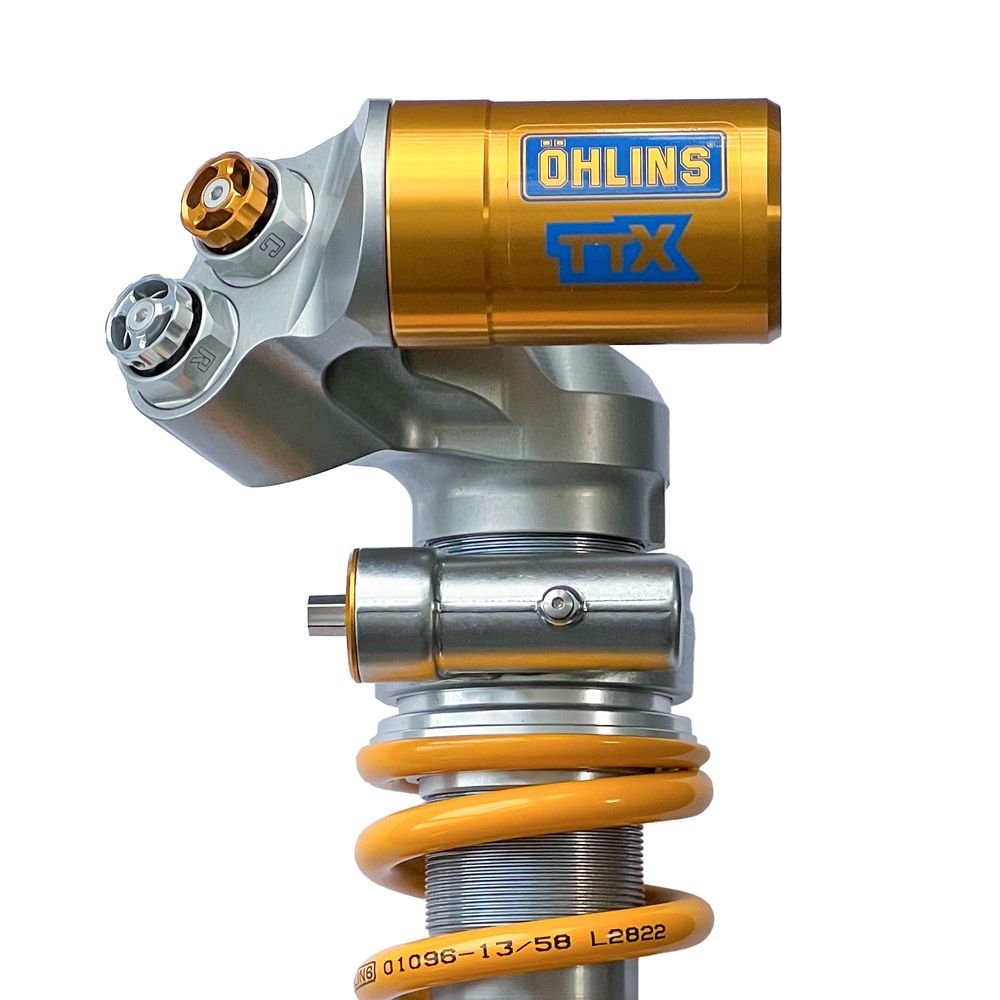

Monotube high pressure gas type of shock absorber with external "piggy back" reservoir.

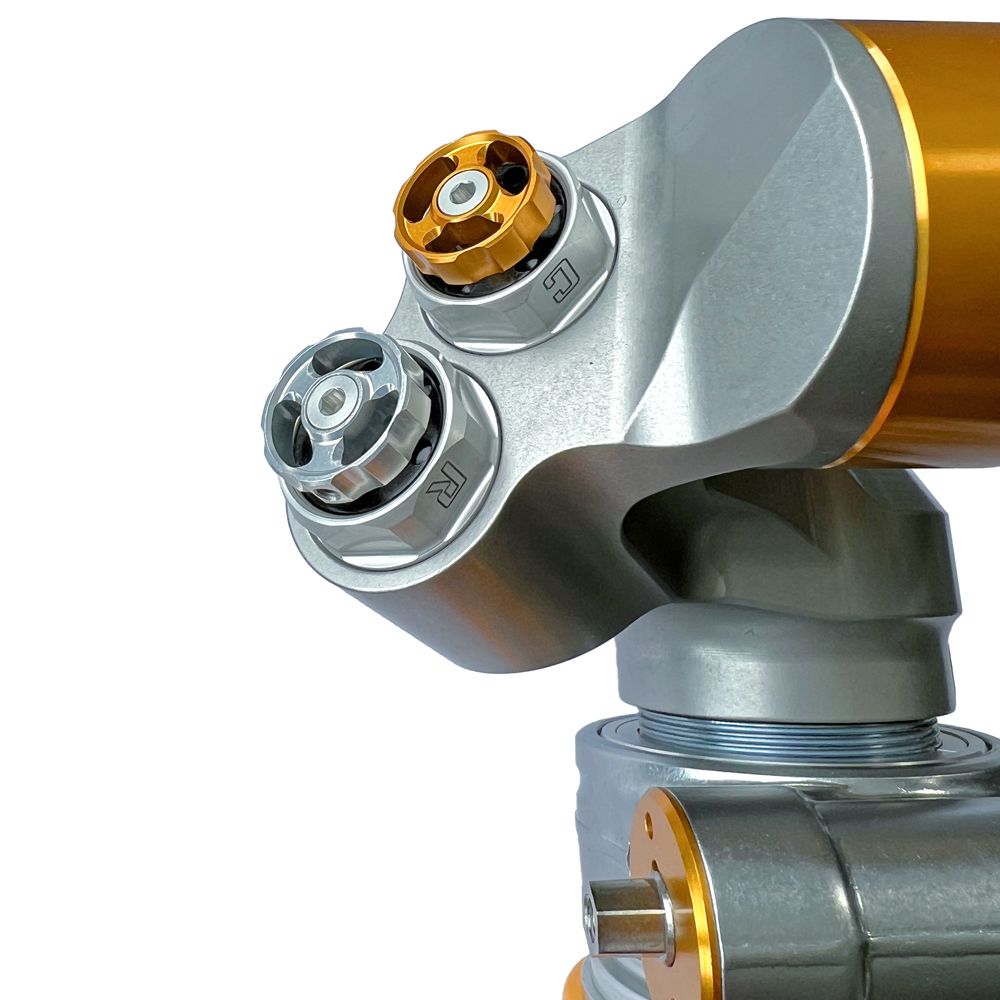

Adjustable rebound damping: silver adjuster
Adjustable compression damping: gold adjuster

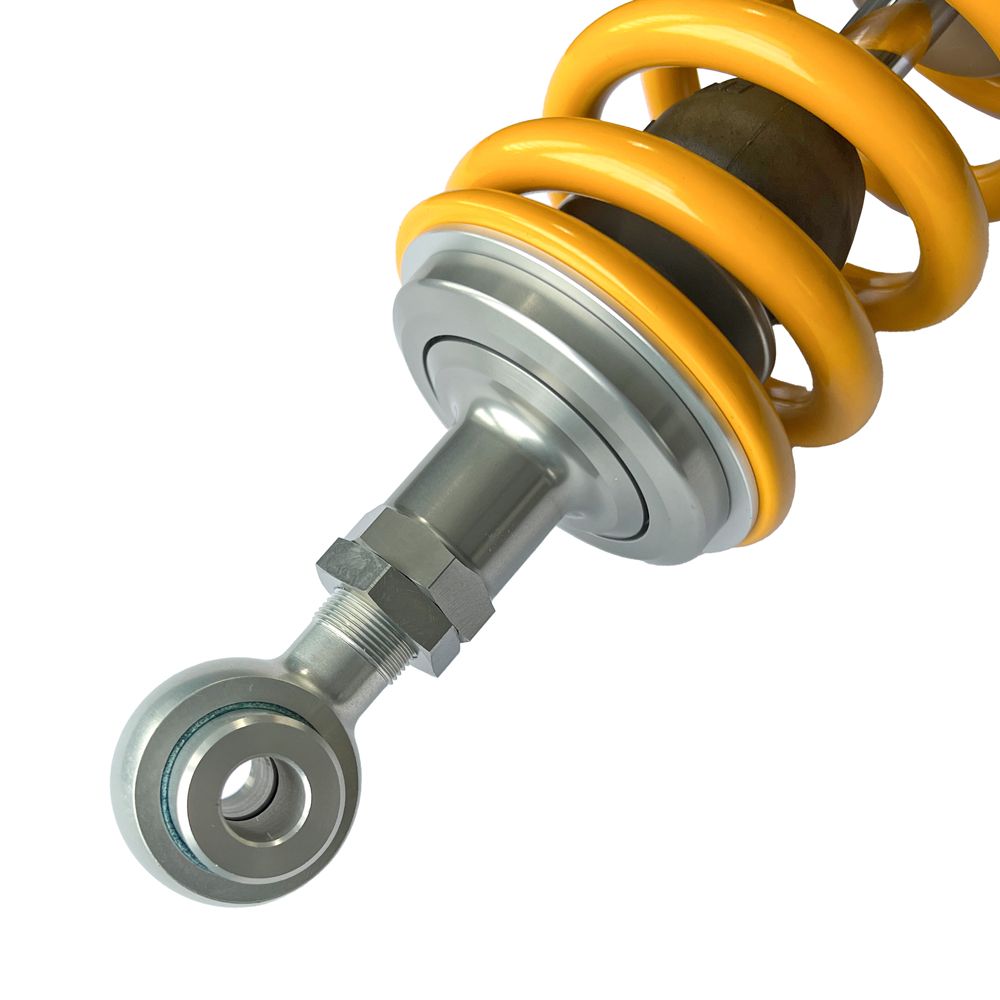

Adjustable length.
Integrated hydraulic spring preload adjuster
with General Type Approval ABE (Germany)

Technical data
Length: 369 +7/-5 mm
Stroke: 80 mm
Rate N/mm: 58 N/mm
Mounted spring: 01096-13
Spring series: 01096-xx

Öhlins Part number: BM 570
Öhlins Type Code: T36PR1C1LB

Scope of Delivery
TTX GP rear shock

Notice
Only for bikes without DDC.
The rear shock can only be mounted with OEM swingarm and OEM linkage.
