Alpha Racing Tire Watch TPMS Handheld Scanner, LF Trigger
- $1,326.49
- $1,326.49
- Unit price
- per

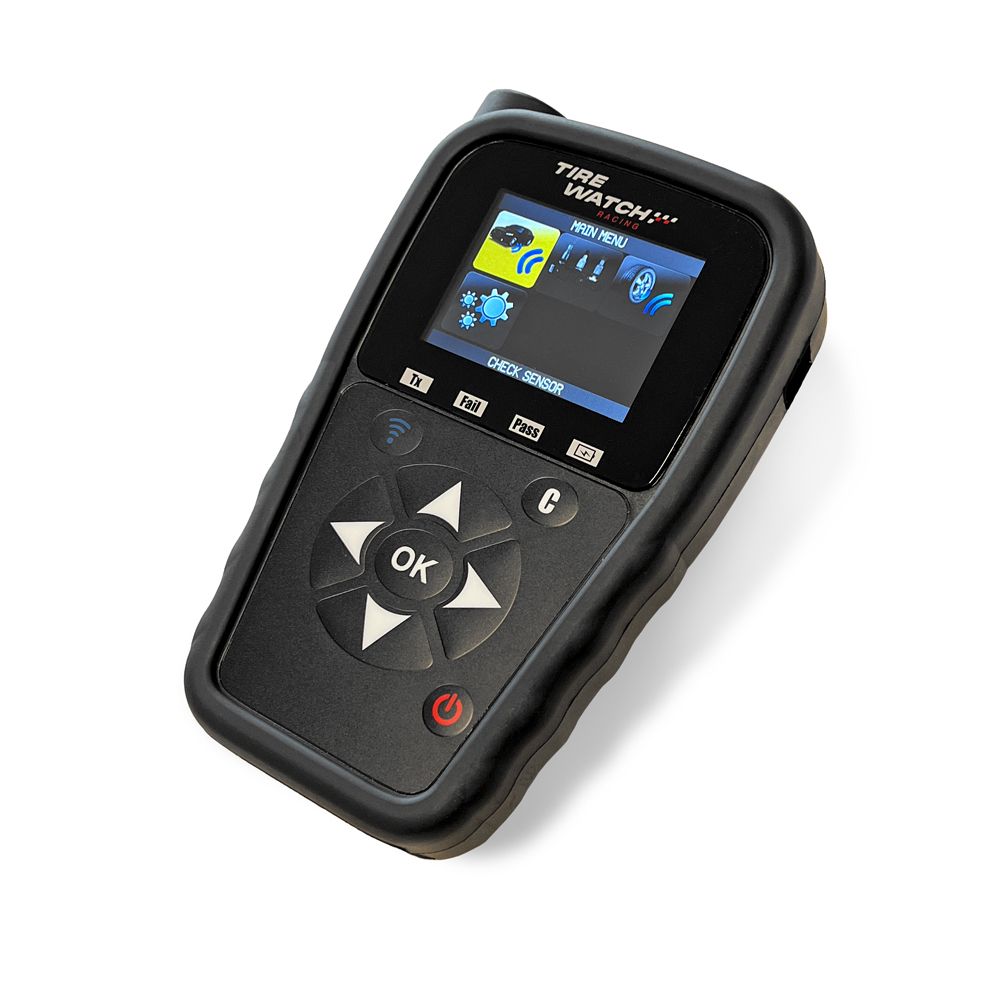

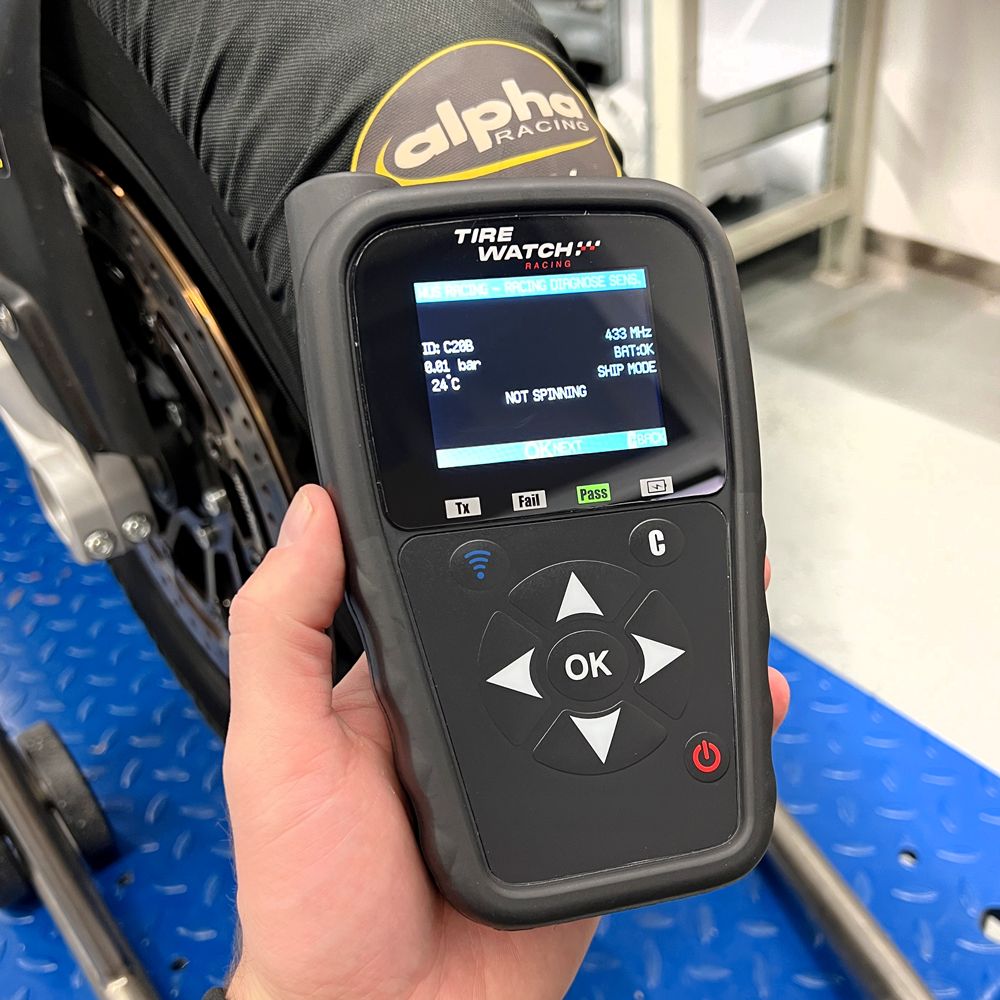

The Trigger tool is the perfect device for the person responsible for confirming tire pressure and temperature when the bike leaves or enters the pits, as well as after the tire mounting process. The Trigger can interrogate the sensors mounted in the wheels thanks to an RF receiver and a low frequency (LF) transmitter. The user can retrieve information such as tire pressure and temperature, sensor ID number and battery information.
The display not only allows the user to retrieve detailed information about a single wheel sensor, but also allows the user to select a set of wheel sensors and view the tire pressures or temperatures for the entire set on the screen. In addition to displaying information about the tire, the Trigger can display detailed diagnostic information of the sensor, including remaining battery life and sensor mode, allowing teams to ensure that all wheel sensors are functioning correctly at all times. In addition, this device can put the wheel sensors into permanent transmit mode, allowing them to be used in the paddock to monitor pressure and temperature when the wheels are covered with tire warmers.
Scope of Delivery
- Hand scanner
- Charging cable and various power plugs
Technical Data
- LCD display
- Supply voltage: Rechargeable lithium-ion
- LEDs for charge/COM
- LF frequency - 125 KHz
- RF frequency 434 MHz
- Charging via USB type B
General
- Size 200 x 120 x 40 mm
- PROTECTION CLASS IP65
- Acoustic signal
- Housing material: High-impact ABS
- RED / FCC certification
- Operating temperature range - 20°C to +55°
Product Specs
| SKU: | 6111B062A00 |
|---|
