This kit Does Not work with the S model with ARH which is an optional feature, Unless reflashed by Harley to remove electronic aids.
The ARH automatically lowers the bike when stopped and raises it when starting, improving maneuverability at low speeds.

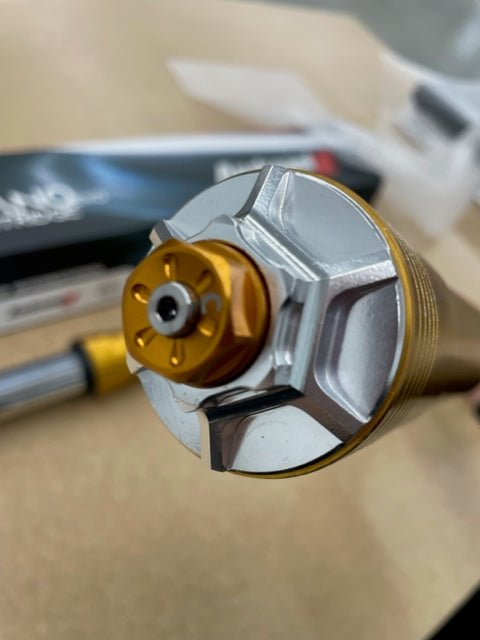

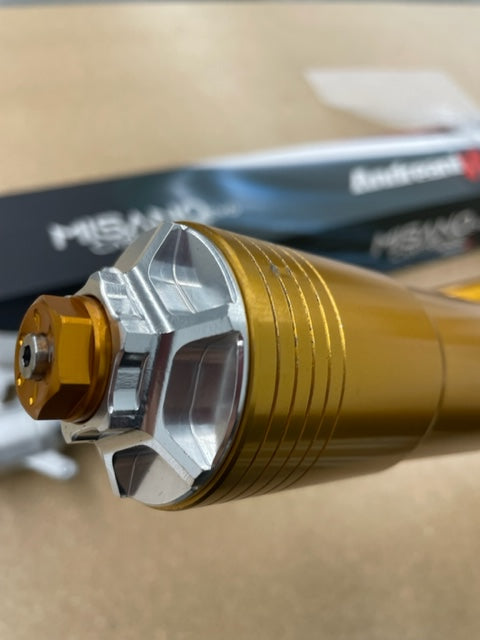

Made In Italy Fully Adjustable Cartridge Kit made to drop in yourself at home! Compression in one Leg & Rebound in the other, also comes with Preload Adjuster.
Use this MISANO cartridge kit to get the front end feel you are looking for!
Made In Italy by Andreani which is Ohlins sister company that makes quality suspension products at good prices!
Use this to get a custom spec to your riding weight cartridge kit created! Just enter your riding weight without gear and Year Make Model of your motorcycle.
*Installation Tooling Package required for self installation
Includes:
1) Cartridge rod tool
2)U-Tool to hold spring
3)Spring compressor tool
**We recommend fresh SKF Fork Seals if forks are not new when installing new cartridge kits
***Ohlin's 1309 Fork Oil for each fork leg required for self installation
Compression in one Leg Rebound in the other
with Preload Adjuster
Should you Require install this can be arranged and we will contact you when processing your order.
*$250 Install cost is in addition to Kit Including fork seals and oil (fork seals and oil must be ordered through the website)
Install includes -cleaning-disassembly-check for true/damage-full ultrasonic bath-Install of new Cartridge kit and parts to your specific weight and riding purpose

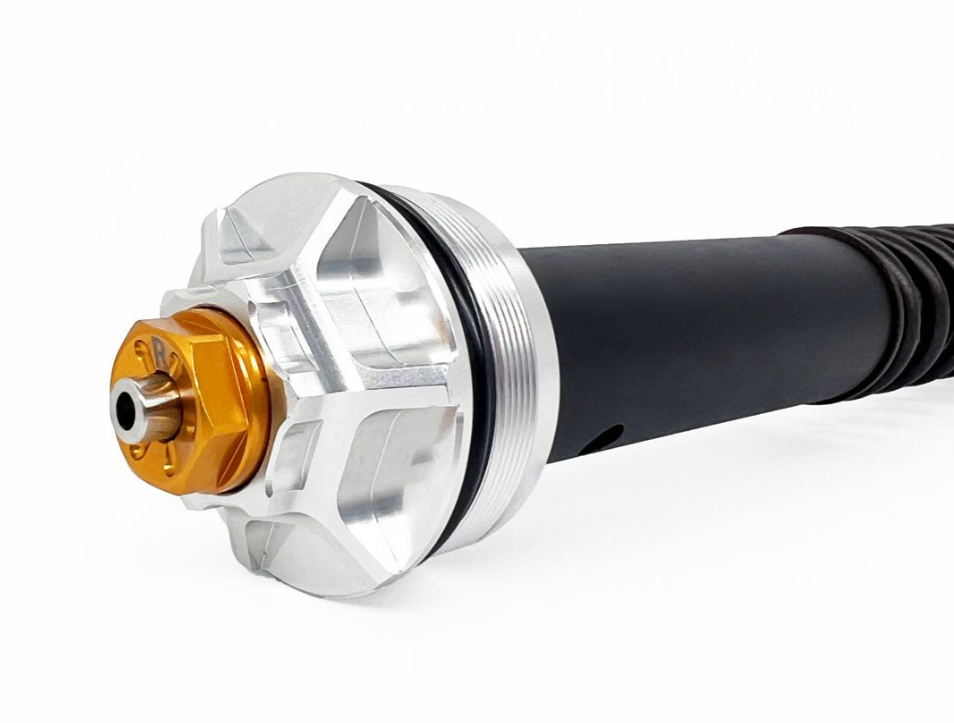

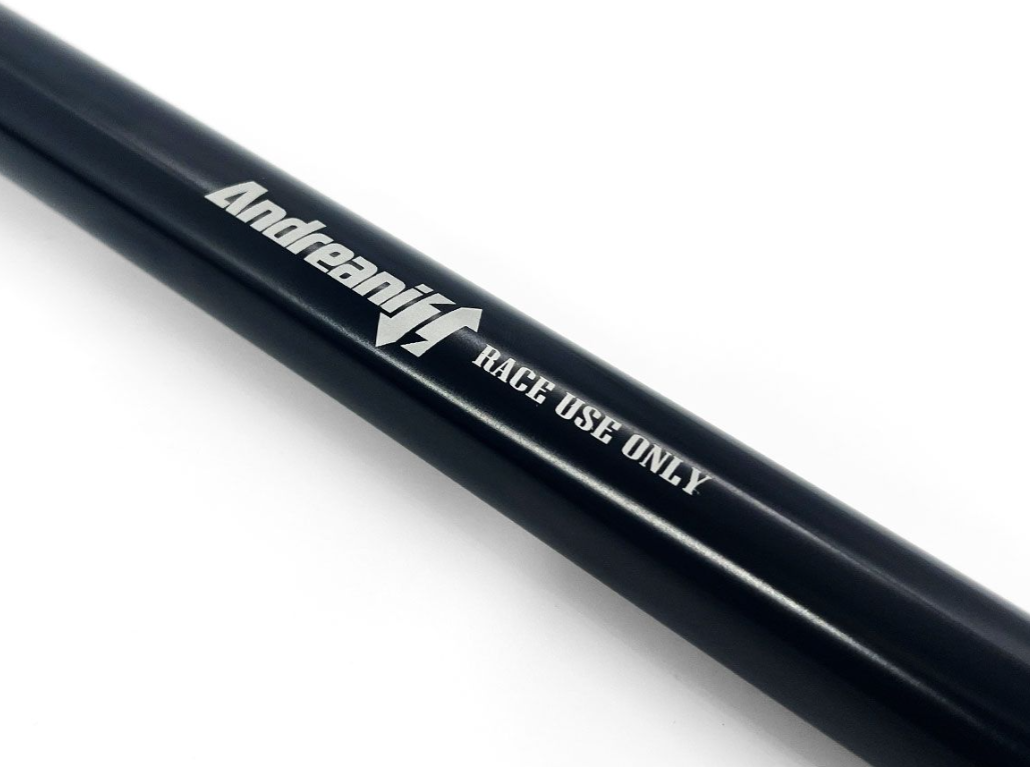

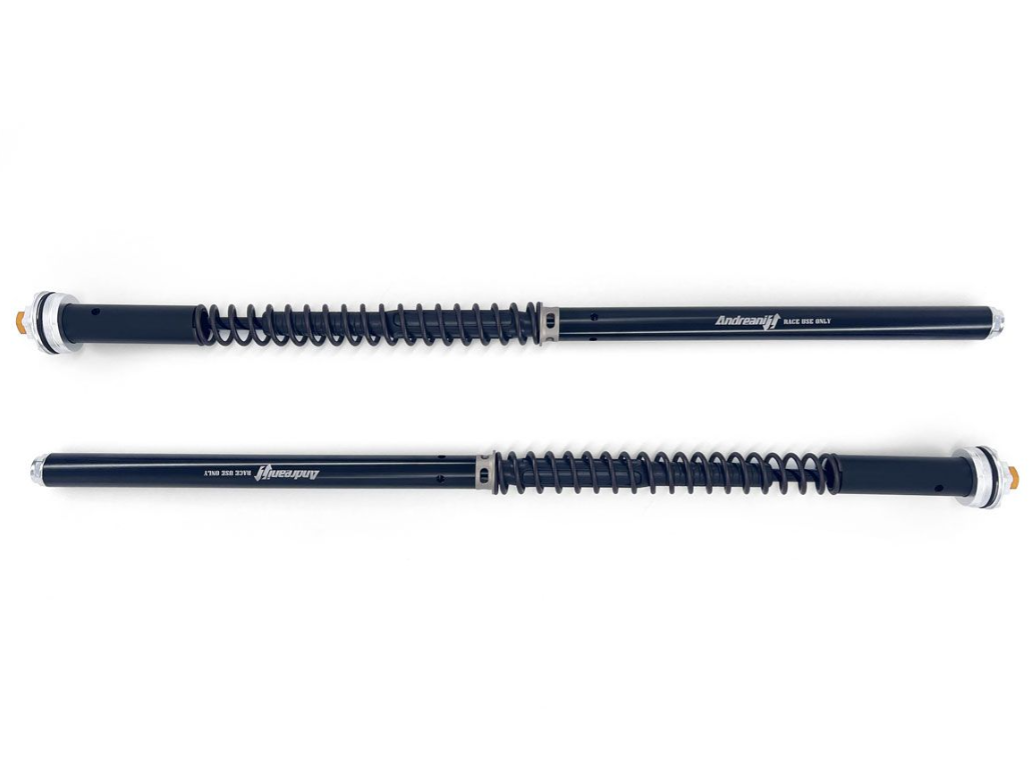

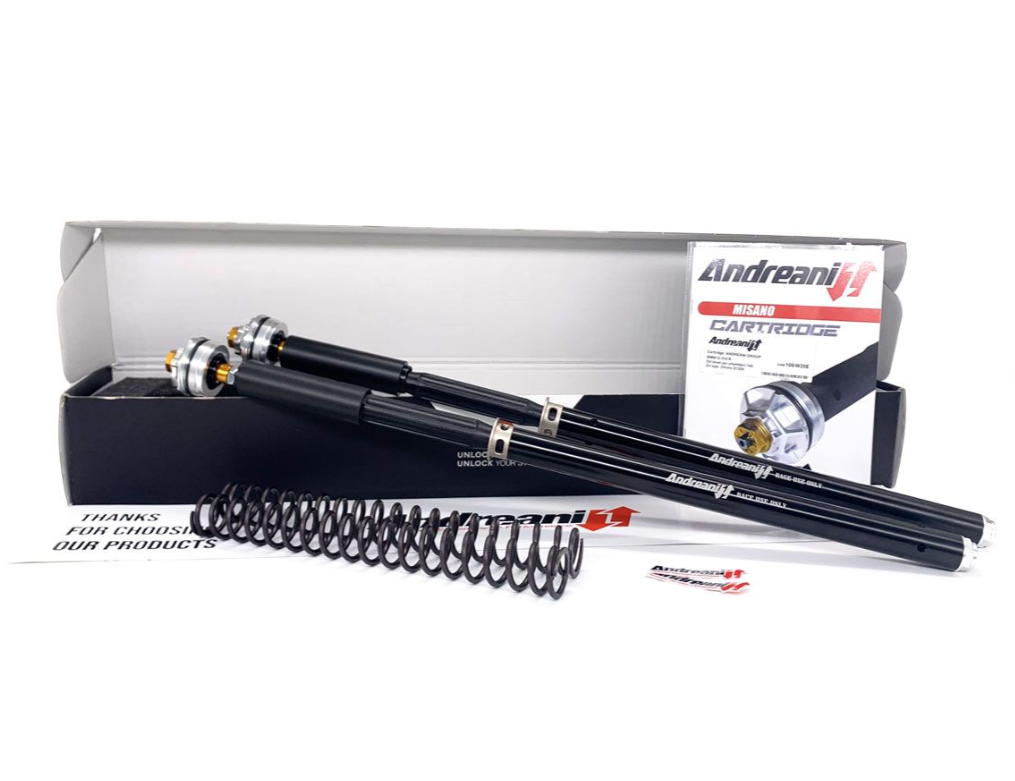

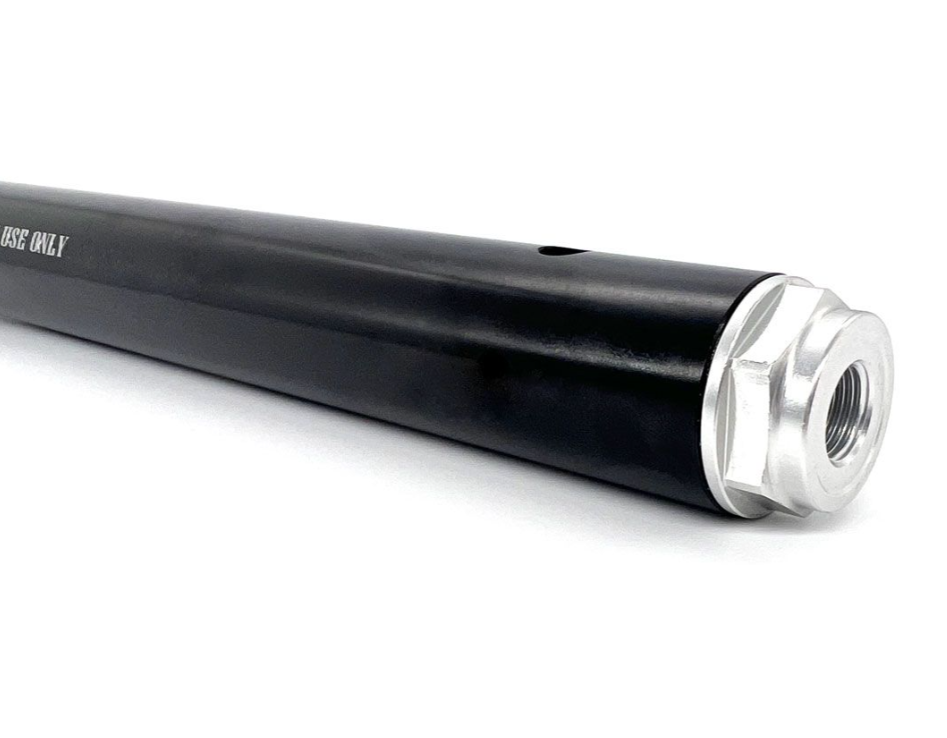

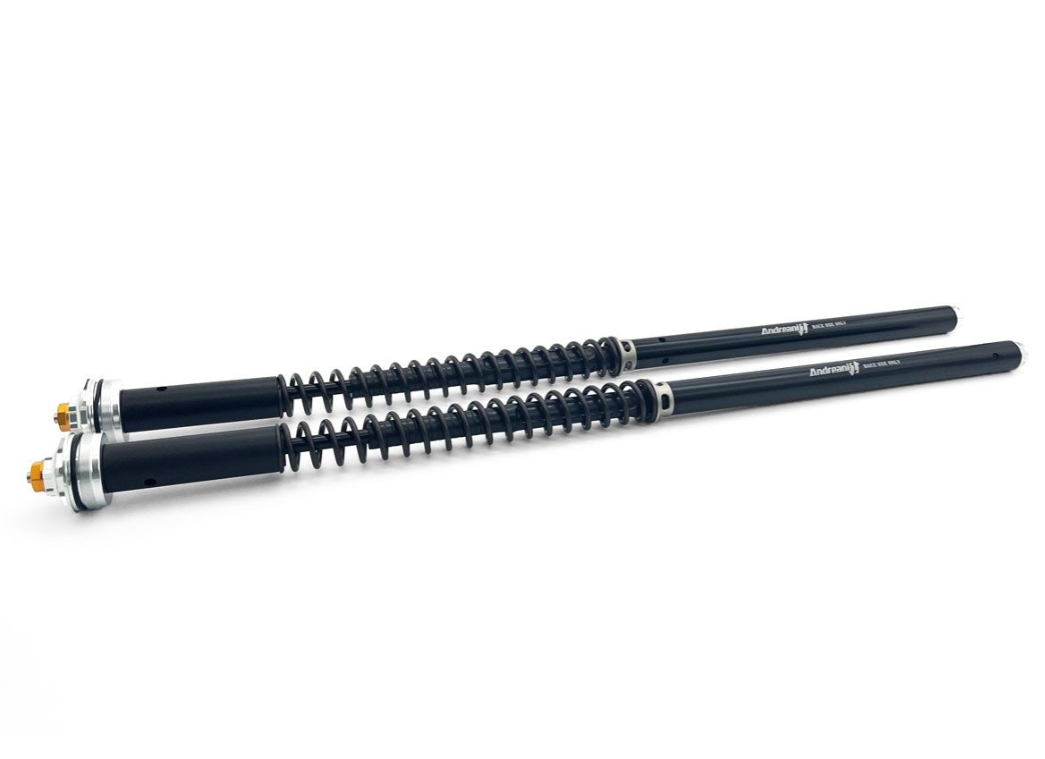

MISANO EVO cartridge kit HD PAN AMERICA 1250 2021-
HYDRAULIC CARTRIDGE Andreani
Cartridge kit for OEM fork with hydraulic adjustments,
developed by Andreani Group and equipped with a sophisticated hydraulic system
which guarantees exceptional performance in cornering and braking.
20mm diameter pistons with expanded oil passages.
Adjustable in compression and rebound.
Spring preload.
The cartridge kit comes complete with springs that can be customize for rider weight/riding style.
Tools Required for install
- Cartridge rod pull tool
- U-tool to hold spring down under but on damping rod
- Spring compressor tool to hold preload spacer down to fit u-tool
Product Specs
| SKU: | 110/HD29E |
|---|
