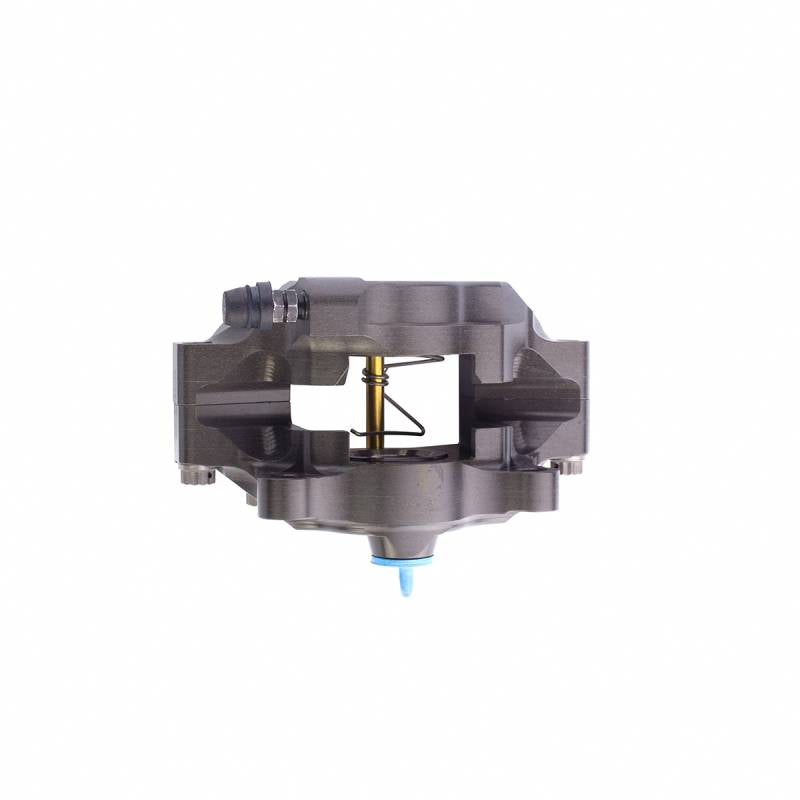

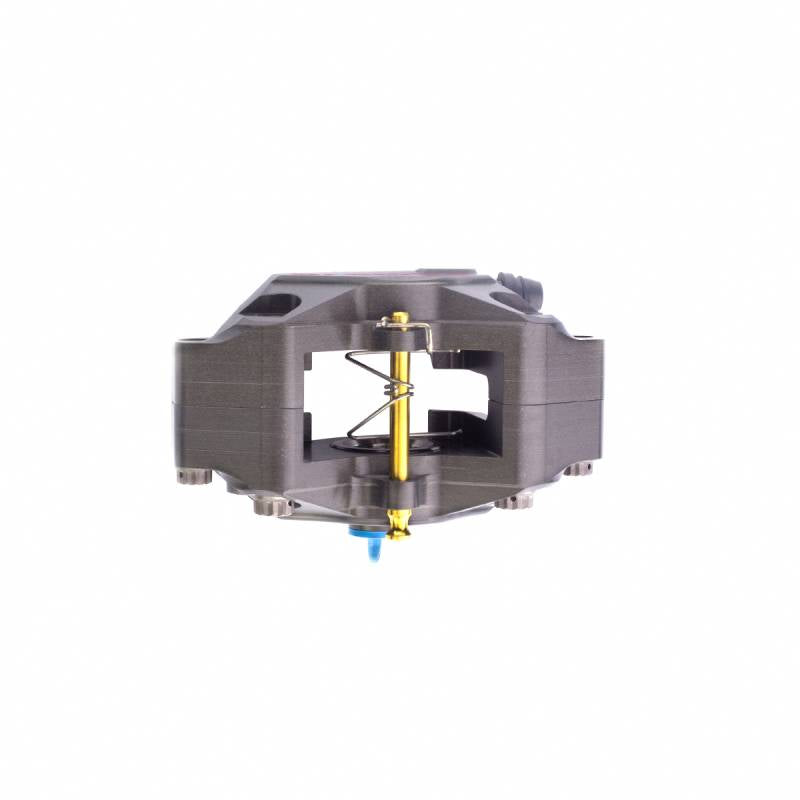

Two-piece rear caliper, entirely from billet created to provide maximum racing performance. The billet machining, which uses sophisticated numerically controlled equipment, provides maximum stiffness and lightweight values which are reflected in its absolutely excellent performance.
The caliper body houses two 30 mm diameter pistons. The pistons and mounting bolting are titanium. To be mounted this caliper requires a specific adaptor bracket.

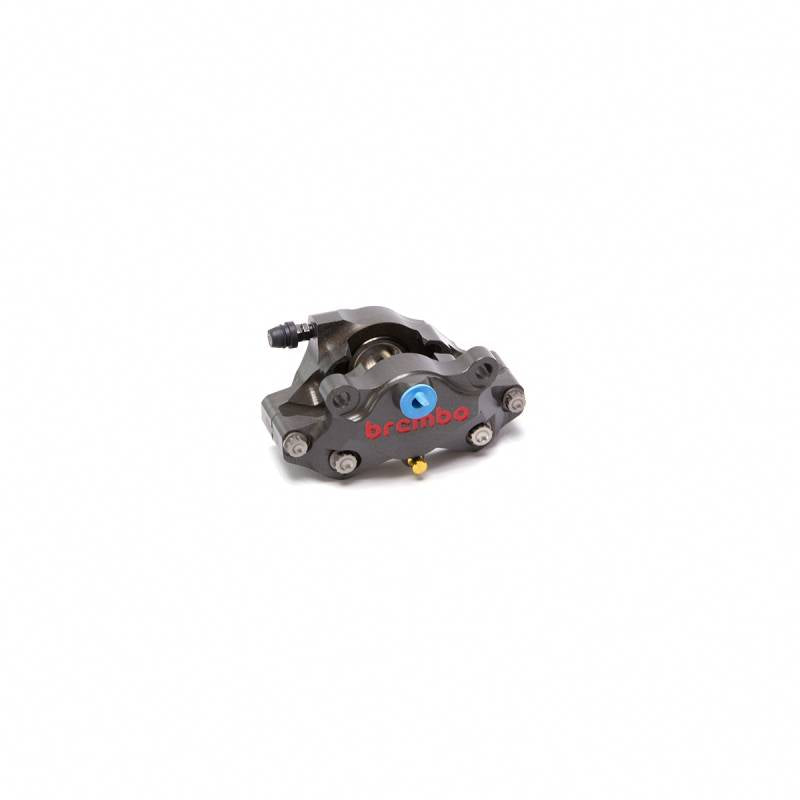

The embossed and hand painted Brembo logo is located prominently on the side.
This caliper can be used with rear discs that have either a 24 mm or 30 mm rotor.
This Component is designed and manufactured to be used exclusively in racing competitions and, therefore, the product shall be installed through specific adaptors not included in the packaging of the component and by highly qualified and competent professionals working in the “racing” field. Please contact our distributor for any further clarification.
TECHNICAL FEATURES
| Position | REAR | |
| Caliper Body | 2-PIECES | |
| Ø Pistons mm | 30 | |
| Pistons Q.ty | 2 | |
| Disc height mm | 24-30 | |
| Material | Billet Aluminium | |
| Surface protection | Hard anodized | |
| Piston material | Titanium | |
| Weight w/o pads (gr) | 348 | |
| Mounted pads included | No | |
| Offset (mm) | 16,5 | |
| Note | W pad for 24 mm rotor height | Y pad for 30 mm rotor height |
Product Specs
| SKU: | XA1J040 |
|---|
