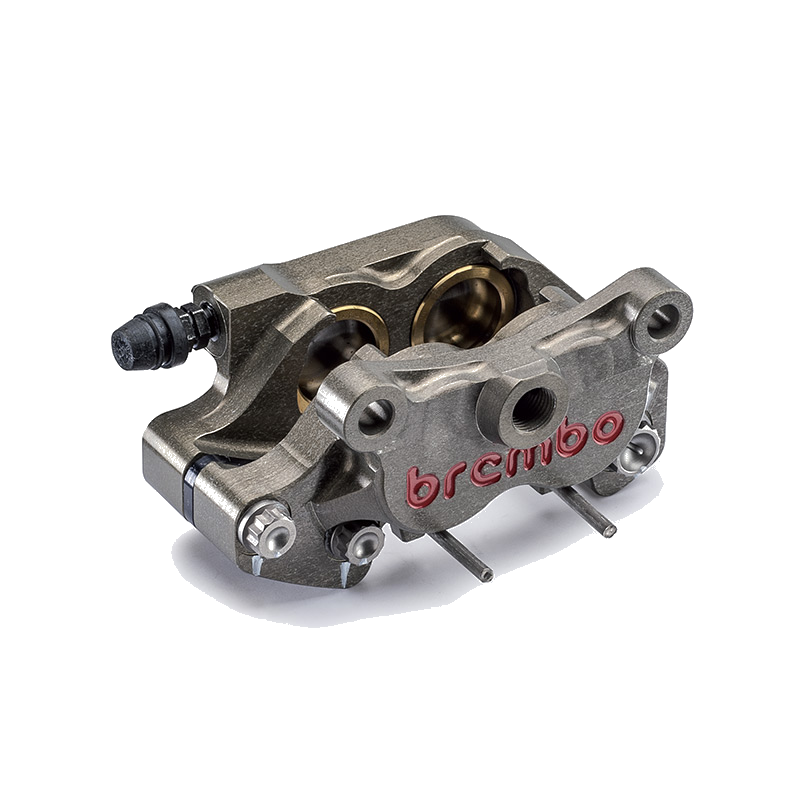

2-Piece, 64mm Mount Spacing, Rear, Hard Anodized
It is a rather lightweight racing caliper designed specifically for riders who use the rear brake heavily.
This caliper is in two pieces and is made entirely from billet. This machining, which uses sophisticated numerically controlled equipment, provides maximum stiffness and lightweight values which are reflected in its absolutely excellent performance.
Inside it houses four 24 mm diameter pistons. The caliper should be hand mounted and the screw tightening torque should be objectivated. To be mounted this caliper requires a specific adaptor bracket.
With this model an oversize disc can be mounted.
This caliper is used with excellent performance on all Super Sport bikes and racing bikes such as those raced in Moto2, Moto3 and MotoGP. It has also become increasingly popular in Southeast Asia where it is used as a front brake in “underbone” category competitions where the engine is positioned under the frame.
This caliper can be used with rear discs that have either a 24 mm or 30 mm rotor.
This Component is designed and manufactured to be used exclusively in racing competitions and, therefore, the product shall be installed through specific adaptors not included in the packaging of the component and by highly qualified and competent professionals working in the “racing” field. Please contact our distributor for any further clarification.
TECHNICAL FEATURES
| Position |
REAR |
| Caliper Body |
2-PIECES |
| Ø Pistons mm |
24 |
| Pistons Q.ty |
4 |
| Disc height mm |
24-30 |
| Material |
Billet Aluminium |
| Surface protection |
Hard anodized |
| Piston material |
Titanium |
| Weight w/o pads (gr) |
262 |
| Mounted pads included |
No |
| Offset (mm) |
18,5 |
| Note |
For rear ventilated disc. |
W pad for 24 mm rotor height |
Y pad for 30 mm rotor height |
