Carbon Smith 2017+ SUZUKI GSX-R 1000 CARBON FIBER LOWER AIRBOX RACE SPEC

Introducing the world's first 2017+2025 Suzuki GSX-R 1000 Carbon Fiber Airbox from CarbonSmith.

What Carbon Smith Says about it

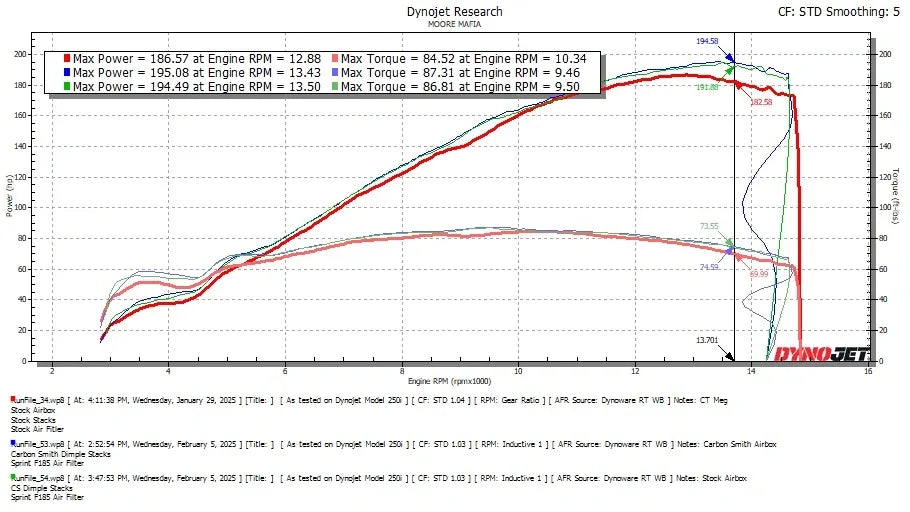

Unlike anything else we've ever made before!  Combining all of our resources into one project!  3D printed carbon fiber, pre-preg carbon fiber, and CNC machining all needed to create this masterpiece! We found +HP gains all throughout the rpm curve with the most, +5hp at 14,500 rpm and +3hp at 13,700 rpm on a BONE STOCK MOTOR!

- Made from 100% aero-space grade pre-preg carbon fiber, this is the lightest and strongest airbox you can make!

- Designed for optimum flow patterns and maximum volume, this airbox will help accelerate the air through the air filter and into the expanded chamber for the velocity stacks resulting in a much more efficient manifold.

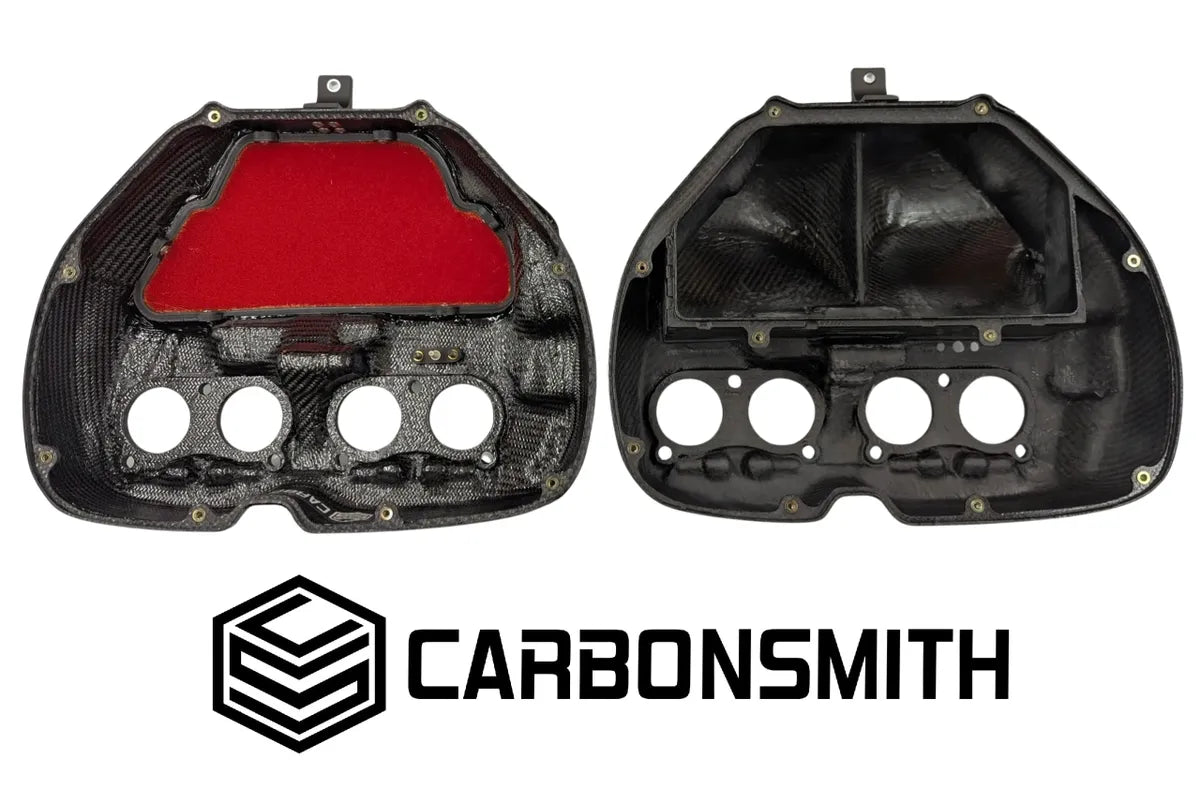

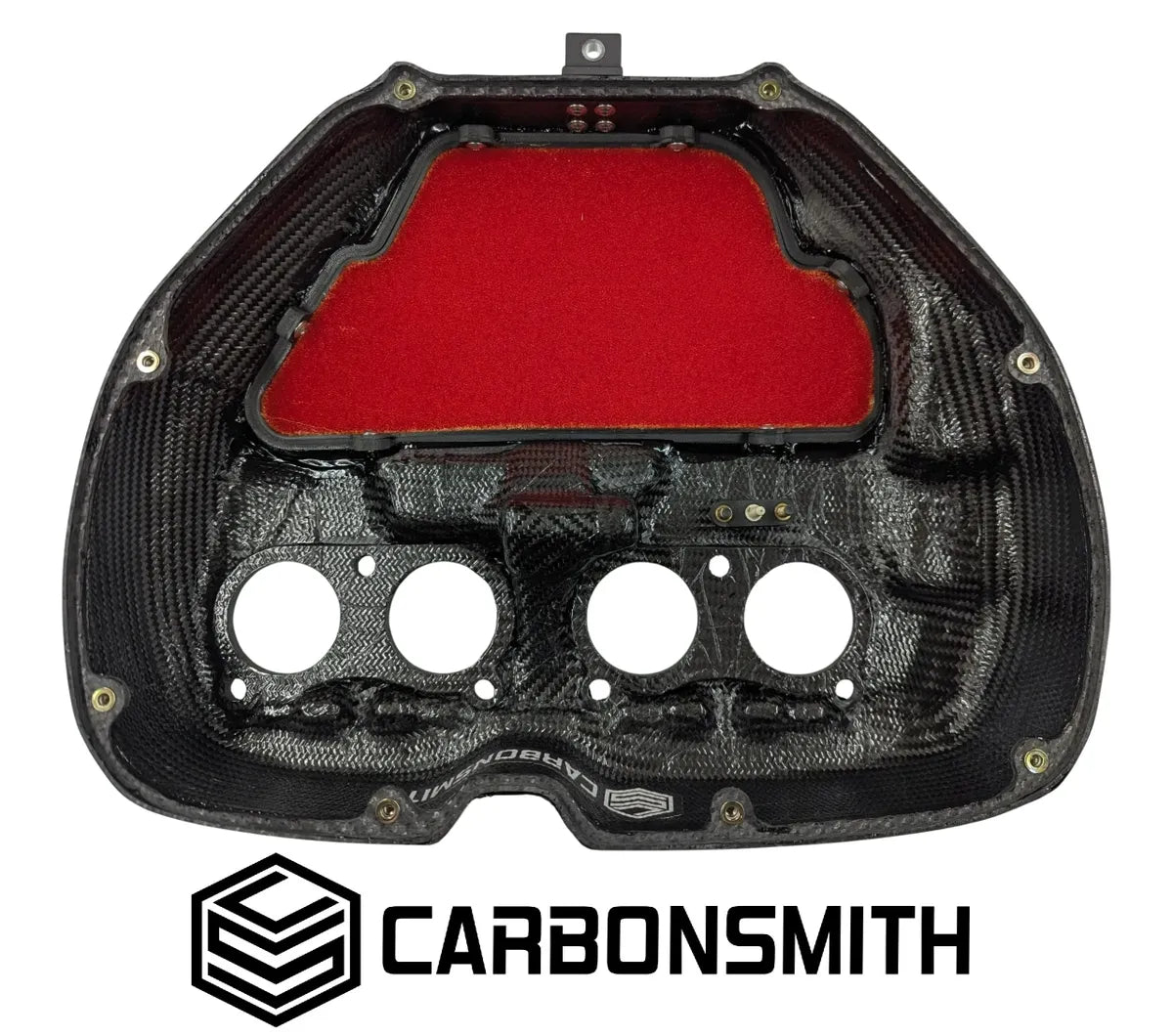

- This airbox will be made in 3 variations: without any air filter, with a custom CarbonSmith Foam Air filter (+$250), or to accept any OEM style air filter (+$500).

- We are also offering a vinyl ester sealant for the inside of the airbox to protect against high alcohol fuels like E85 and methanol, this is HIGHLY RECOMMENDED for anyone using these types of fuels

- ONCE THE AIRBOX IS MADE, IT CANNOT BE CHANGED!

- This RACE SPEC airbox is UNFINISHED and WILL HAVE MINOR DEFECTS IN THE EPOXY SURFACE.  This intentional decision was made to keep the retail cost as low as possible due to the VERY HIGH amount of labor required to make each one.

• OVER 1 LB LIGHTER THAN OEM (RACE SPEC ONLY - AIR FILTERS AND COATINGS ADD WEIGHT)
• 10% MORE VOLUME
• DUAL RAM AIR DESIGN
• CNC CARBON FIBER LID AND THROTTLE BODY SEALS
• STEEL M4 RIVNUT THREADS & STAINLESS STEEL HARDWARE INCLUDED
• CHOOSE BETWEEN NO AIR FILTER, CARBONSMITH AIR FILTER (+$250), OR OEM AIR FILTER (+$500)
• IAT SENSOR RELOCATED
• 3D PRINTED CARBON FIBER FRONT MOUNTING BRACKET
• DOES NOT WORK WITH OEM AIRBOX LID - ONLY WORKS WITH CARBONSMITH CARBON FIBER AIRBOX LID
• LOWER AIRBOX ONLY - AIRBOX LID SOLD SEPERATELY
• RACE SPEC WILL INCLUDE MINOR SURFACE FLAWS DUE TO UNFINISHED SURFACE
• OPTIONAL 2K HIGH GLOSS OR 2K MATTE FINISH
• OPTIONAL INTERIOR VINYL ESTER COATING FOR HIGH ALCOHOL APPLICATIONS: E85, METHANOL, ETC.
• OPTIONAL HDPE BOTTLE OR 3D PRINTED NIPPLE FOR CRANK CASE VENTILATION, OR MAKE YOUR OWN SOLUTION!
• LIMITED QUANTITIES WILL BE MADE
• MADE TO ORDER ONLY - 2 TO 3 WEEKS LEAD TIME
• Absolutely no returns or cancelations on this product
