Carbonin Carbon Fiber Race Bodywork 2024+ Honda CBR1000RR-R

Carbonin Carbon Fiber Race Bodywork  2024+ Honda CBR1000RR-R

-Will not fit other brands of bodywork or interchangeable with oem bodywork

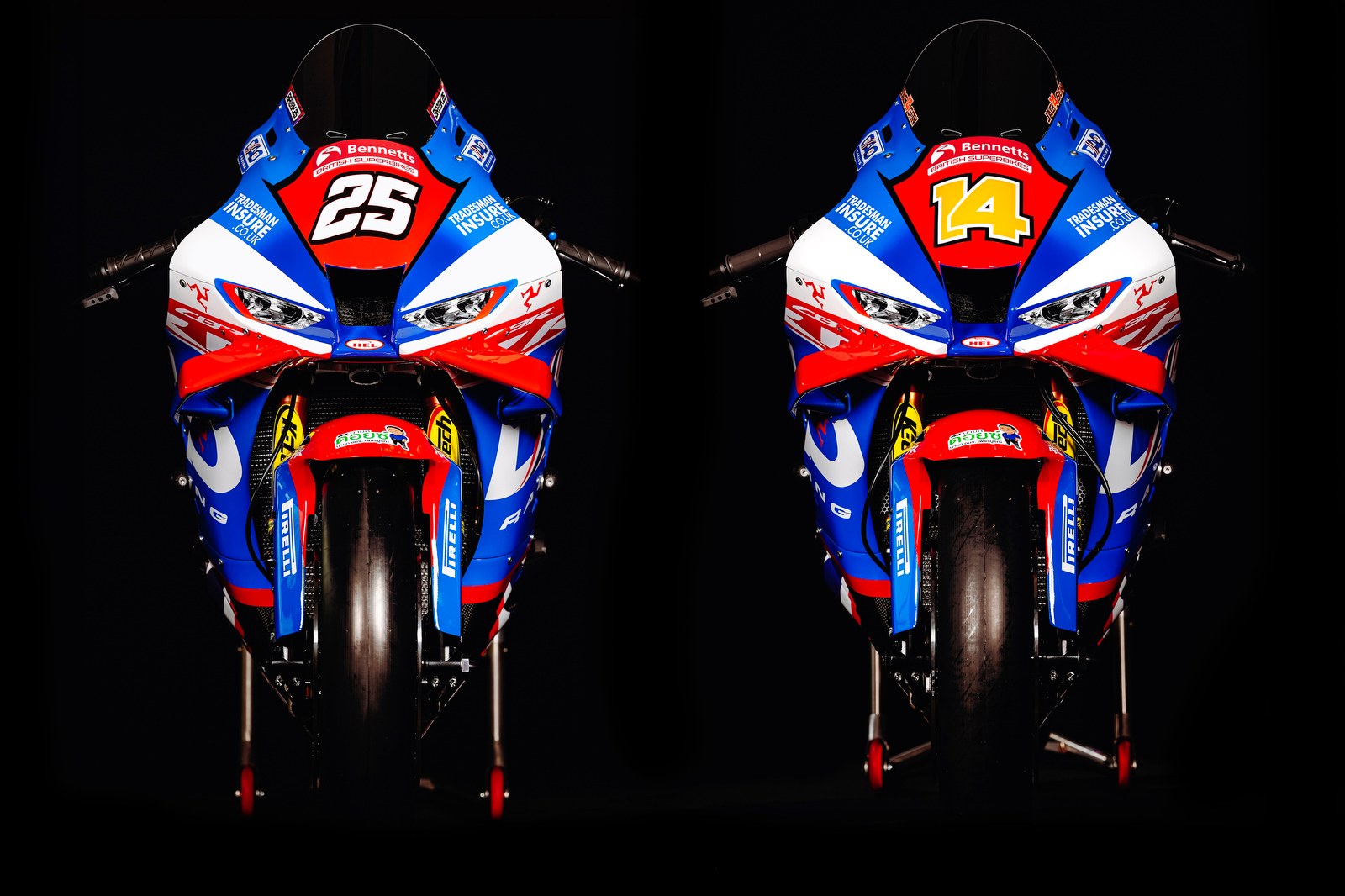

-Created with BSB Team Honda Racing UK

-Dzus are pre-installed, riveted

-Fairings are pre drilled and come with 1/4 turn Dzus fasteners where needed

Race Bodywork includes:

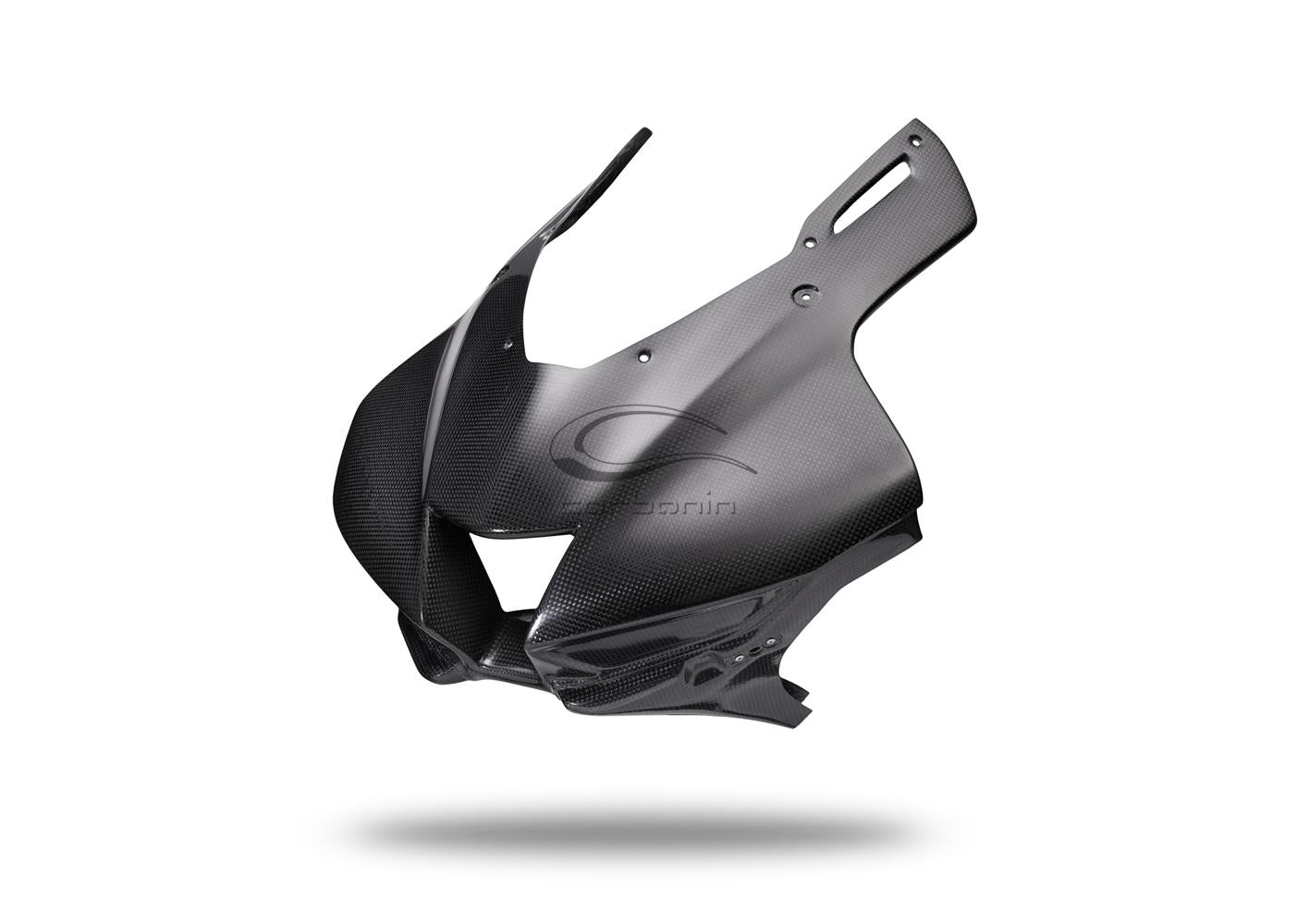

Upper Race Fairing (pre installed dzus)

Lower Fairing (pre installed dzus)

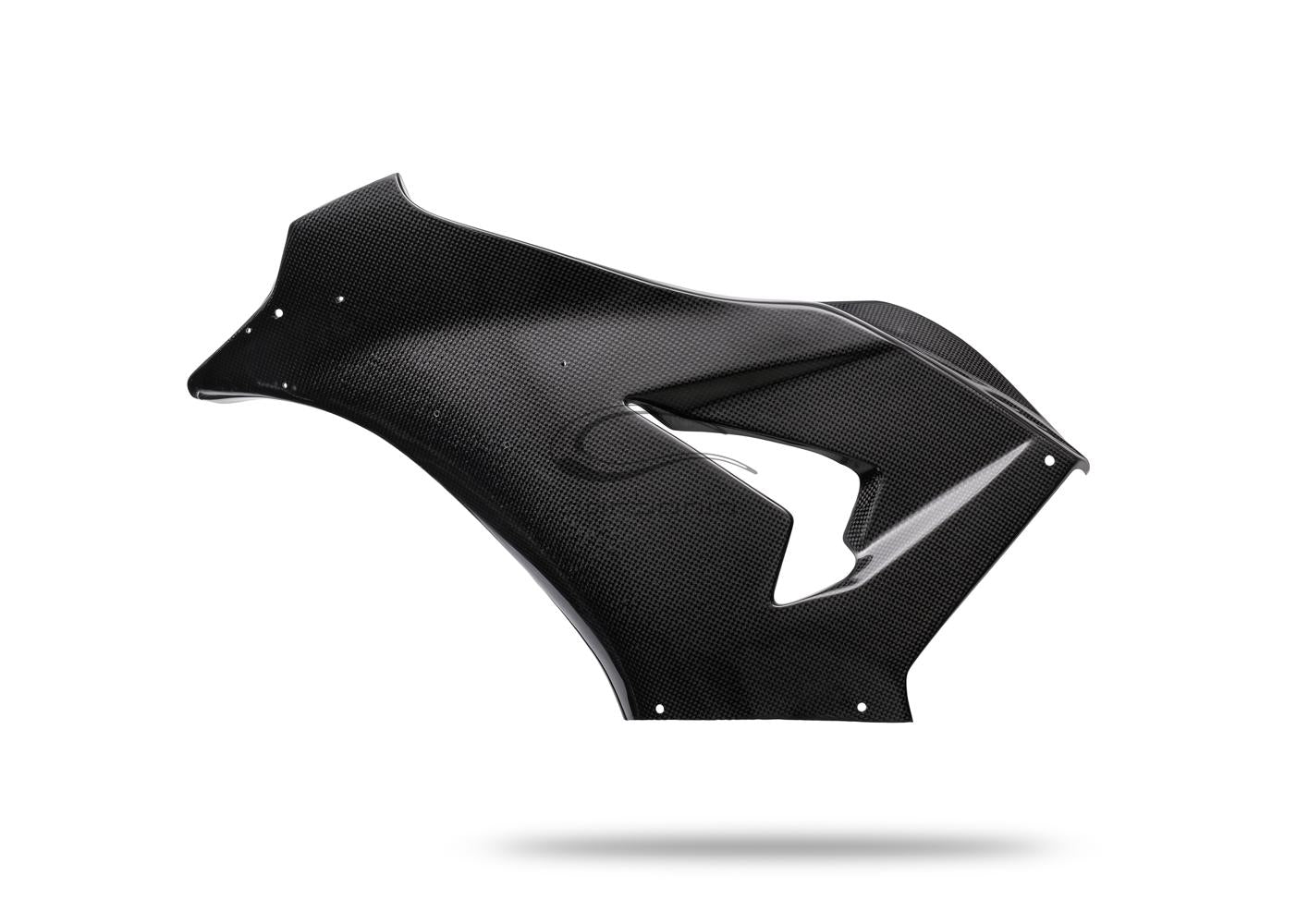

Left Side Panel (pre installed dzus)

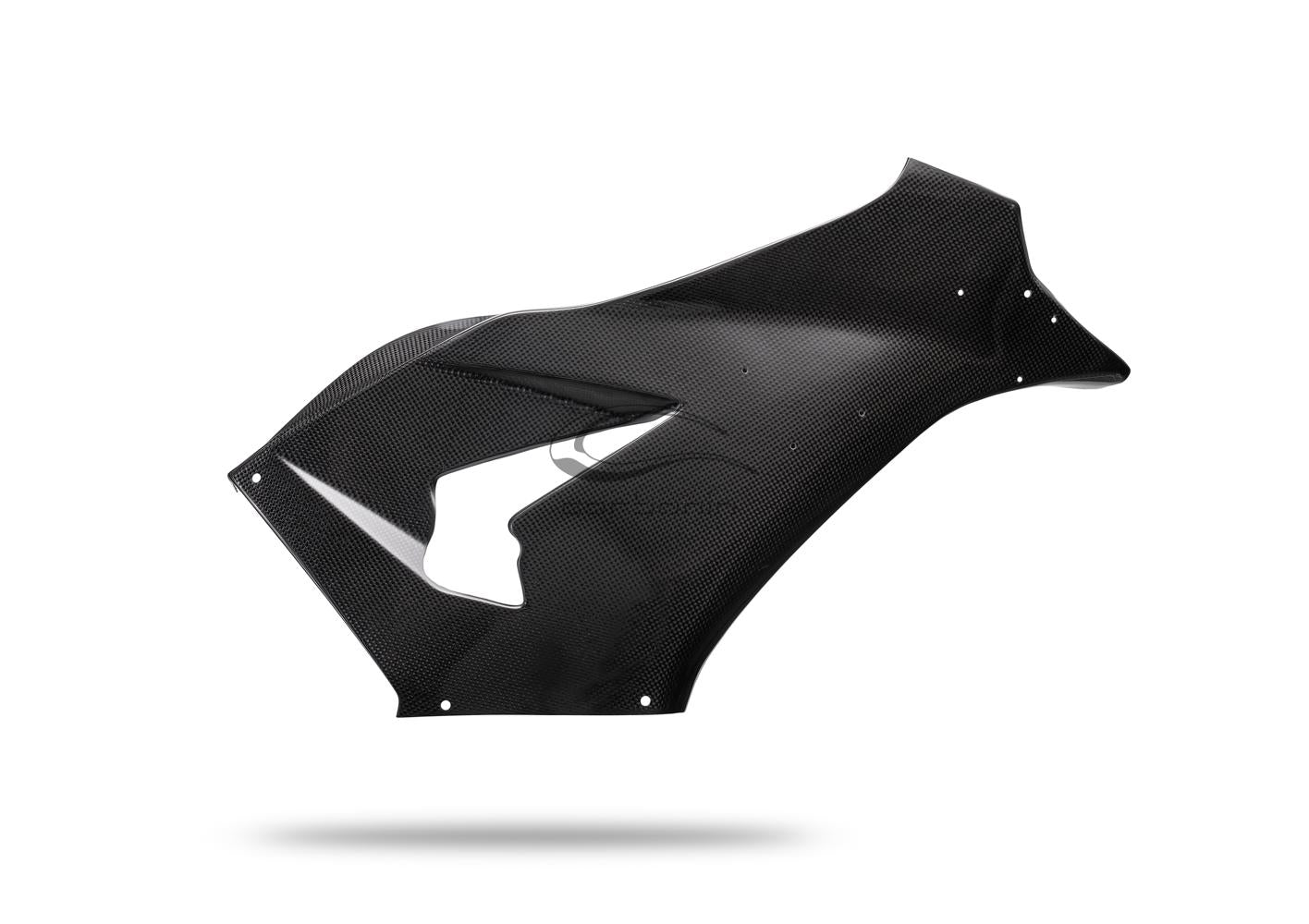

Right Side Panels (pre installed dzus)

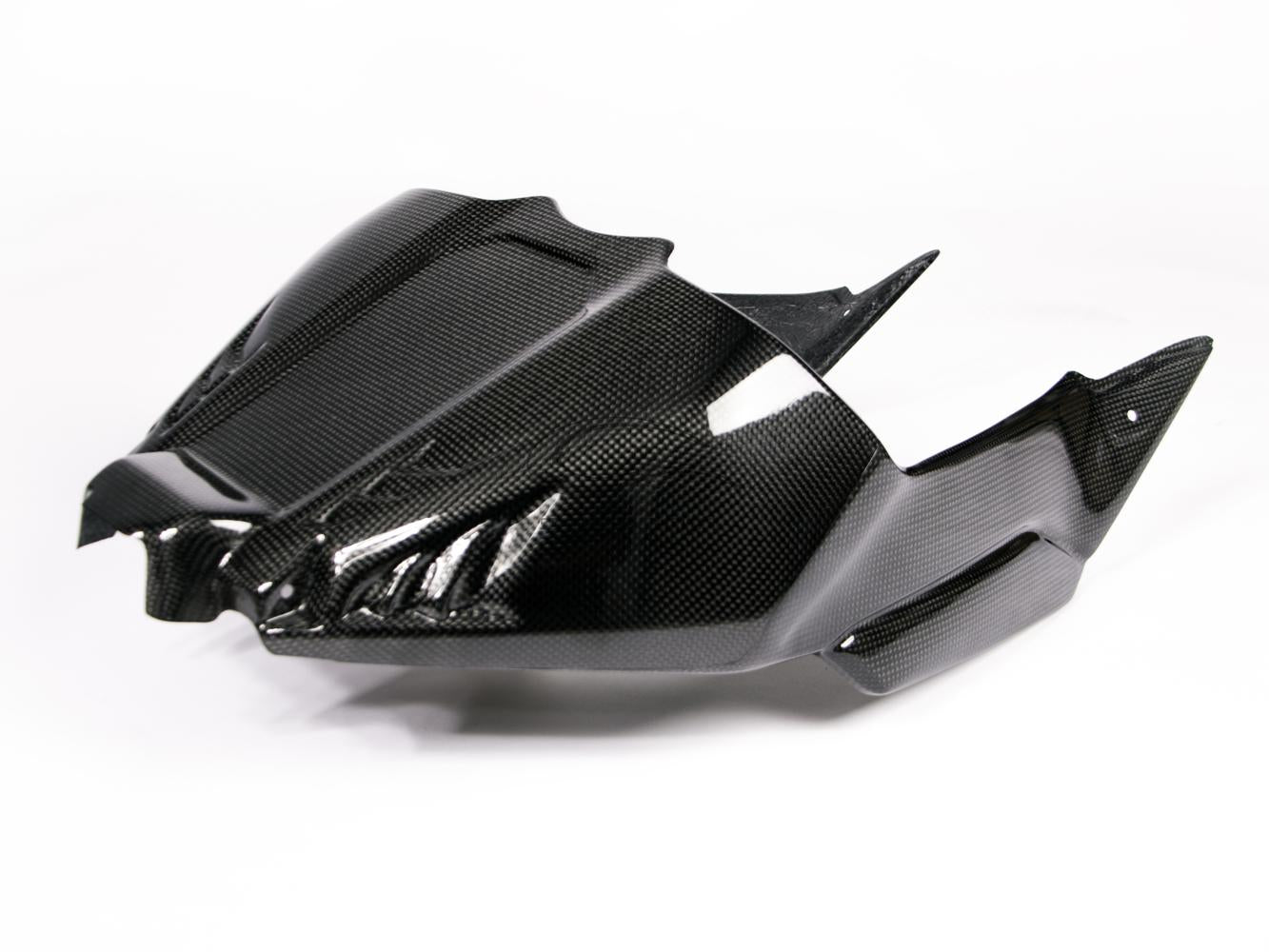

Airbox Cover w/ Side Panels

Brackets Required, but not included with bodywork:

Aluminum Inserts for Tail Unit (4 pcs) ALU2002H

Inox Bracket for Lower Fairing (1 pc) IN2002H

Inox Brackets for Airbox Cover w/ Side Panels (2 pcs) IN2001H

Front fender is optional and not included with Race bodywork.

Seat Foams are optional and not included with Race Bodywork.

Carbon Fiber Fairings made with Plane weave carbon finished in a Gloss shine pre-pregnated carbon fiber on the inside. They are Vacuum bagged and cured in an autoclave with special techniques developed over years of perfecting the art making them to the highest standards required by professional race teams for perfect fitment and ease of removal and installation. These fairings save time installing because they come with all the Dzus fasteners pre-installed and the bodywork holes drilled (uppers are left undrilled at the fairing bracket because different aftermarket options for fairing brackets are available). Some models secure to the OEM fairing bracket via the screen holes. Carbonin work in development with teams such as BMW Motorrad WSBK ,YART Yamaha Austria Racing Team and Honda Racing UK

Seat Options
Basic - This seat is a 15mm neoprene foam glued to a base that is molded from the seat pan of the tail section and then attaches to the seat pan with bolts. Please not that these seat's will only fit carbonin seat pans and seat units. It will not work on any other brand. This foam will wear out like any other foam pad.
Standard - This is an upgrade to the basic seat which is covered in a neoprene material that protects the basic foam and provides the rider a level of grip but without compromising the need to slide side to side. It looks much more professional and will protect the basic foam from any wear from patches on leather suits or abuse from side to side movements. we have seen these seats go on for 3 seasons or more!
Pro Seat - This seat is for riders or teams that require their seat to provide back support or a step seat to keep them in a position from sliding too far back in the seat under acceleration, this is often done with a raised section so they can still get back in the seat in the full tuck, they are just raised up more which helps keep the butt up and their head shoulders and chest lower in the tuck. It is the same material as the standard seat but can also be customized with team logo's or race number -If you purchase a pro seat we will contact you to design your seat. Please note pro seats are made custom to order

Paint

We offer Professional Paint service so you can receive your bodywork pre painted ready to install out of the box.

Please select between matte or gloss finish and Metallic or Pearl finish options in the dropdown selector

Download the Paint & Design form with RAL COLOR CODES below in the documents tab

We will contact you after your order for the RAL color code and finish option.

Custom Decal Design

We offer a custom design service so your bodywork can turn up with graphics so all you need to do is unbox and install to your motorcycle

Download the Paint & Design form in the documents tab, fill it out and Our team will contact you after processing your order to discuss your design.

Please note that Graphics can be applied to carbon fiber bodywork without paint however for avio fiber we recommend painting the fairing before adding a graphics kit for the best adhesion.

We do not clearcoat in the graphics as these are designed to be removable as sponsors often change.
