Cordona GP ASG Superbike Quickshifter-Blipper, Ducati V4

Cordona GP ASG Superbike Quickshifter-Blipper, Ducati V4 420Evo-Spec-V4

Item 420Evo SpecialeV4, Analogue high sensitive GP ASG Superbike quickshifter/blip sensor for new Ducati Panigale V4 and V4S

Replace OEM DQS for up and downshift.

Configurable for push or pull linkage (street or race shift).

Completely plug and play mounted with Pinbolts and 125 mm aluminum rod and uniballs included. The new developed GP ASG Superbike sensor is a direct plug & play OEM performance upgrade quickshifter/blipper (or only quickshifter) for modern Superbikes and Street bikes with an analogue 0-5v interface to the ECU.

The GP ASG Superbike sensor greatly improves the gear change performance and gives a superior distinct and smooth gear change feeling similar to top GP and WSBK systems.

The Strain Gauge technology is far more reliable than spring loaded OEM shifters and is fully weather protected.

The GP ASG Superbike is easily configurable for push or pull gear linkage (street or race gear shift).

The GP ASG Superbike 420SpecialeV4 are OEM replacement for Ducati Panigale V4, V4S and V4R

Specification:

• 0-5v analogue high sensitive Strain Gauge GP ASG Superbike sensor
• Load cell technology, no moving parts in sensor
• 5-15v DC power supply
• Linear single or dual (BMW 427) output to bike ECU, 2.5v (at neutral gear), range 0.5 to 4.5v
• The Evo version have rate dependent hysteresis characteristics (non-linear)
• 20MHz processor with adaptive calibration for temperature & vibration
• Configurable push or pull direction • Can be used for ECU’s with only upshift functionality
• Completely sealed and weather protected sensor and module
• High precision CNC machined stainless steel housing
• Dimensions; 45mm long, 14mm diameter
• M6 ’magical’ threads, left and right threads in both sensor ends
• CE mark (EMC radiated)

Special kit

Included:

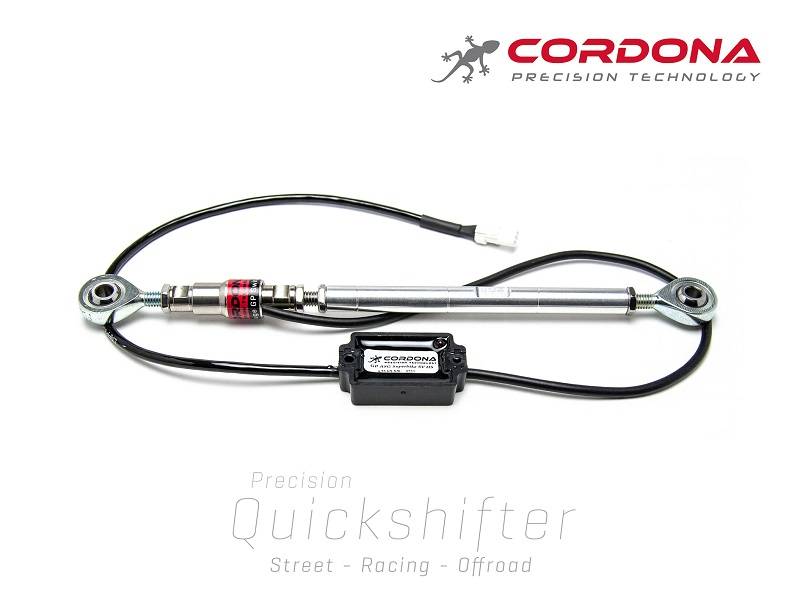

GP ASG Superbike Special kit are plug and play versions completely assembled with rod and uniballs, 4x cable ties, 3cm 3M Velcro.
