Cordona GP ASG Superbike Quickshifter-Blipper, Yamaha R1 YEC, std 2018-

Cordona GP ASG Superbike Quickshifter-Blipper, Yamaha R1 YEC, std 2018- 424Evo

Analogue Strain Gauge Load Cell for ECU’s with upshifts and auto blipper for downshifts. Used from advanced ECU’s as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs to many OEM and Flashed ECU’s for street bikes with analogue 0-5v input.

The GP ASG Superbike sensor greatly improves the gear change performance and reliability compared to OEM and other competitors. It gives a superior distinct and smooth gear change performance similar to top GP and WSBK systems.

Compared to OEM and other shifters the Cordona ASG Superbike is faster, more distinct and have smoother action. The bike will use less traction control and not upset chassis under gear changes as much, especially during lean angle.

Specification:

• 0-5v analogue high sensitive Strain Gauge GP ASG Superbike sensor
• Load cell technology, no moving parts in sensor
• 5-15v DC power supply
• Linear single or dual (BMW 427) output to bike ECU, 2.5v (at neutral gear), range 0.5 to 4.5v
• The Evo version have rate dependent hysteresis characteristics (non-linear)
• 20MHz processor with adaptive calibration for temperature & vibration
• Configurable push or pull direction • Can be used for ECU’s with only upshift functionality
• Completely sealed and weather protected sensor and module
• High precision CNC machined stainless steel housing
• Dimensions; 45mm long, 14mm diameter
• M6 ’magical’ threads, left and right threads in both sensor ends
• CE mark (EMC radiated)

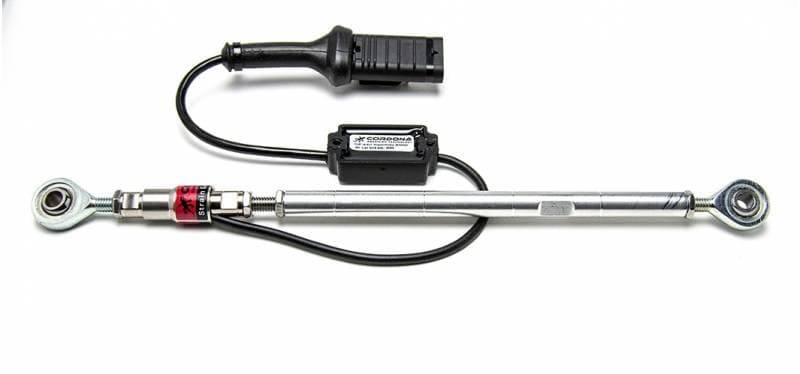

Standard kit

Included:

The GP ASG std kits comes with an aluminum rod and a kit of nuts and studs (2x right, 1x left threads).
