Cordona GP SG Switch Quickshifter, EcuEditor, MacMadigan, 230mm rod Suzuki GSX-R

Cordona GP SG Switch Quickshifter, EcuEditor, MacMadigan, 230mm rod Suzuki GSX-R 407b GSXR

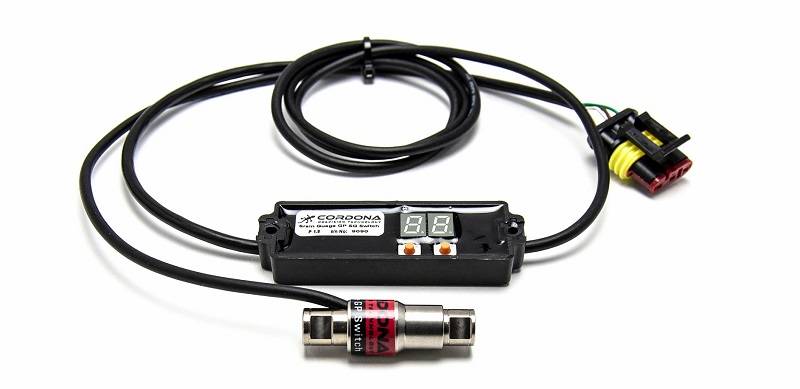

GP SG Switch for Suzuki GSX-R with ECU Editor McMadigan

230mm rod included

• Senses both Push and Pull linkages

• Automatic set up, logic firmware asks the rider to perform an up shift after installation and the sensor will automatically learn and remember push or pull

• Only 14mm diameter

• Fully computerized, 25mhz processor

• Automatic compensation for temperature, creep and vibration

• Preload set up on digital miniature panel 1m from the Switch, adjustable 1-30kg

• Upgraded in 2012 to 1.2 version, adjustable between commonly open circuit and commonly closed circuit

• Sensor is available as spare in case of crash damage, plug in a new sensor and go

• Absolutely water proof with sealed connectors

• No movable parts

• Sensor has Magic Threads and can take both Right and Left hand bolts on each end; so the sensor can be installed anywhere on the shift rod, to face in either direction

• Super Durable billet made from stainless steel

• Billet made 230mm Shift rod incl. and nuts and studs

• Prototype tested continuously for 7 days, 603 000 upshifts with 45kg force. Equivalent of 12years racing use

• Adjustable killtime, 10-99ms. Preset to 65ms at delivery.

• Suitable for Dyna 2000/4000.

• Can be set to default and used with PQ8 or other ECUs with QS capability.
