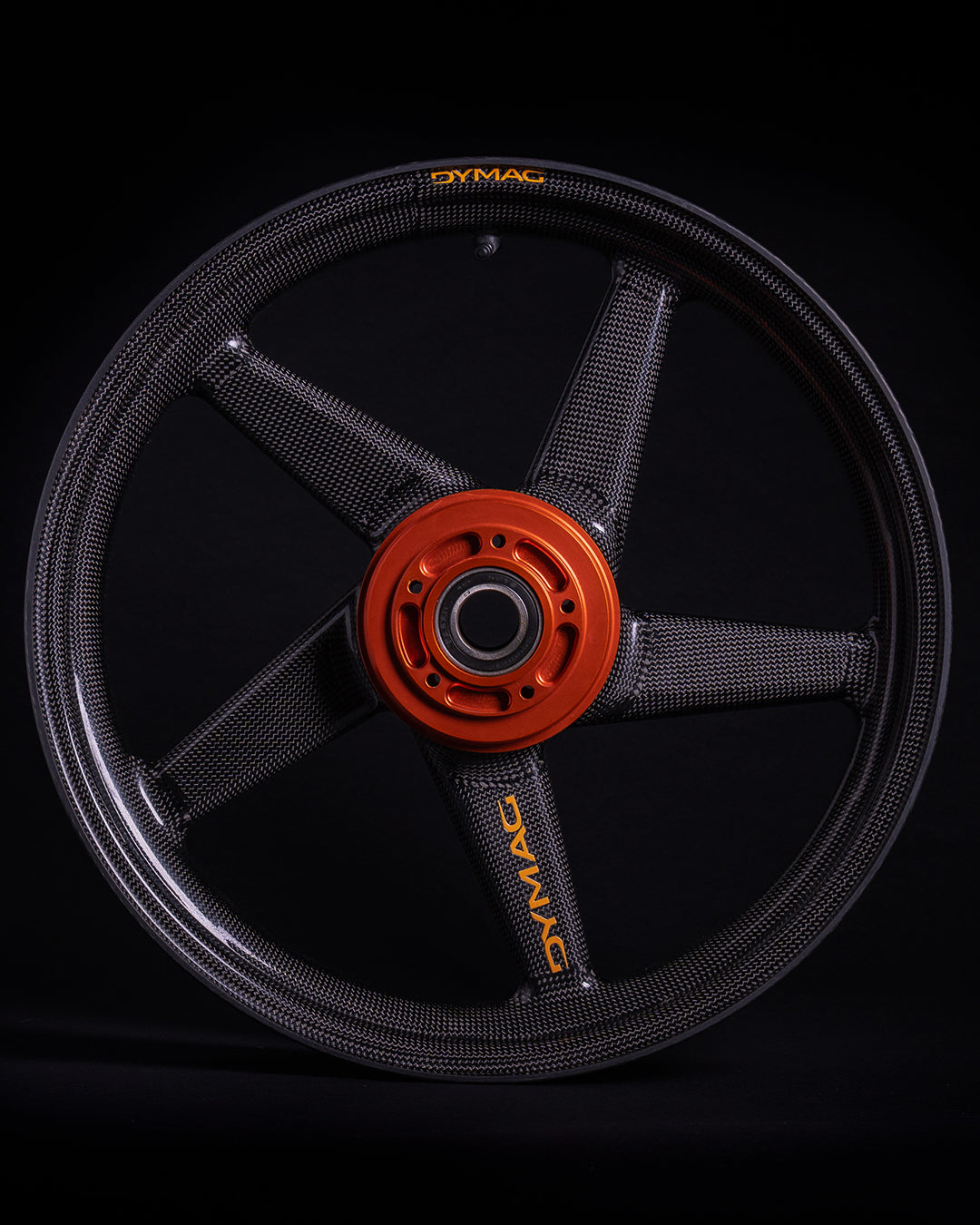

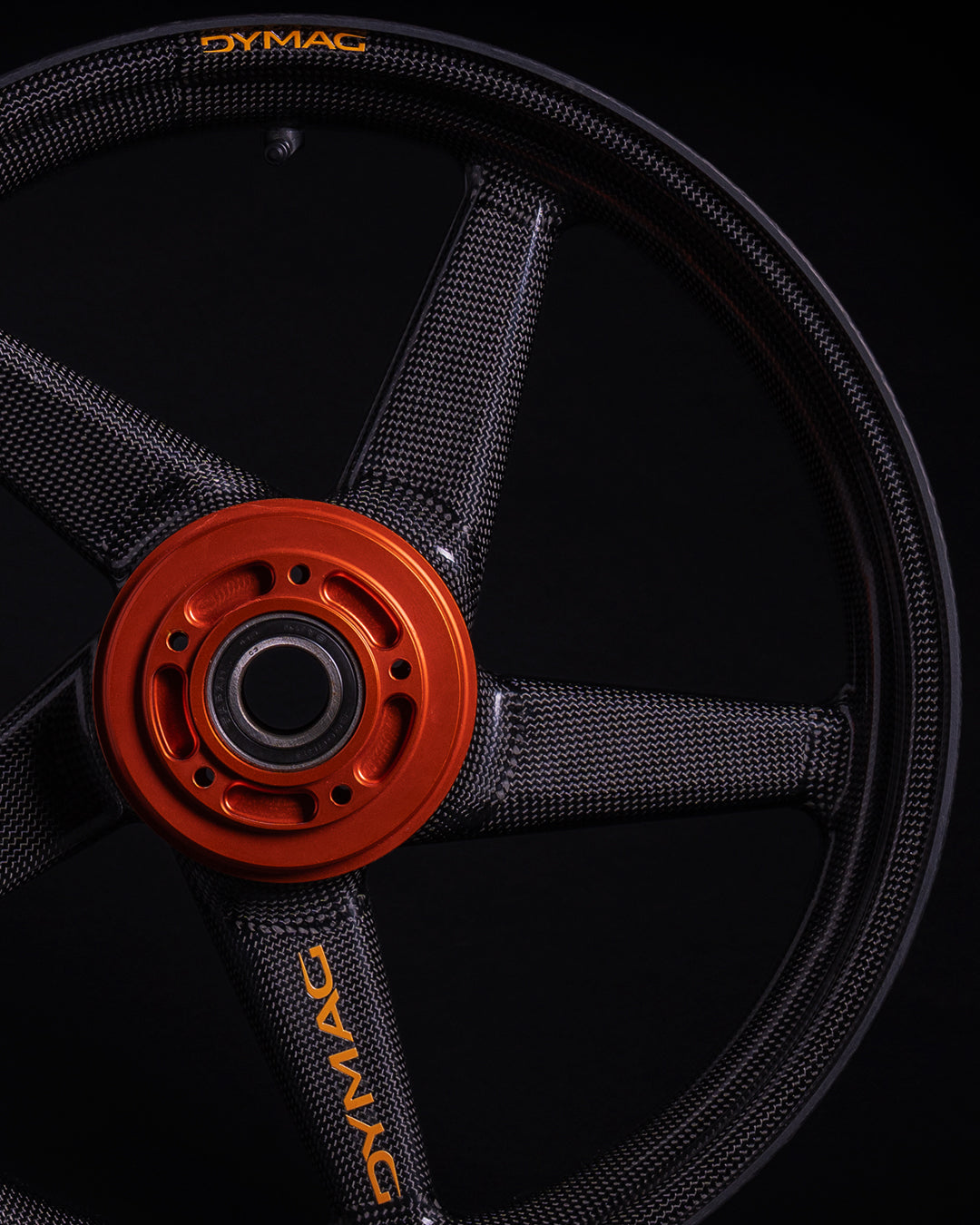

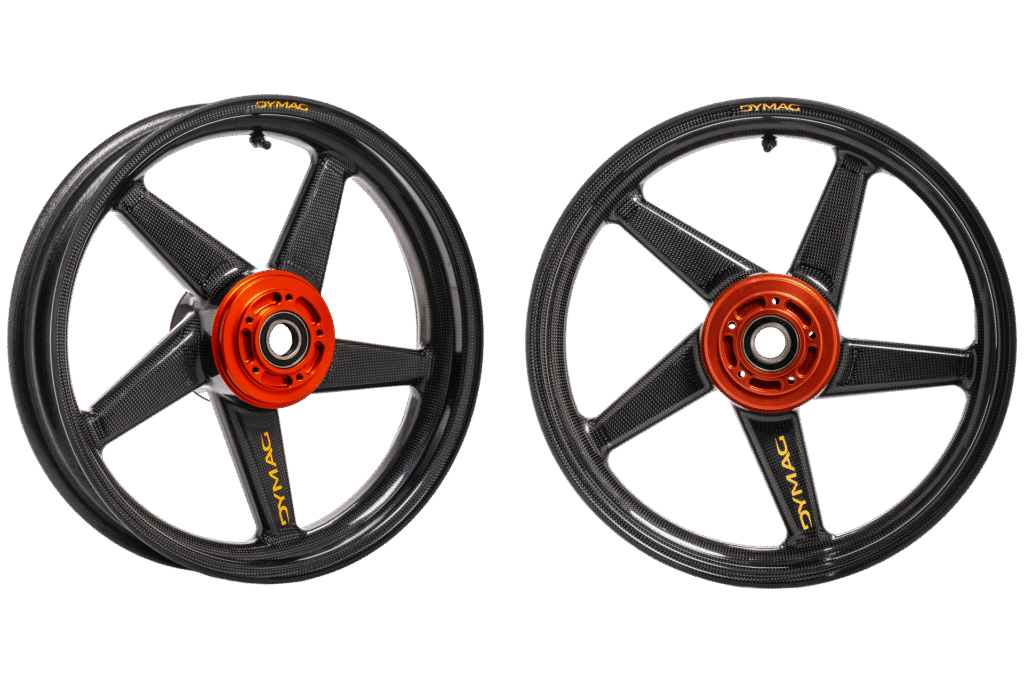

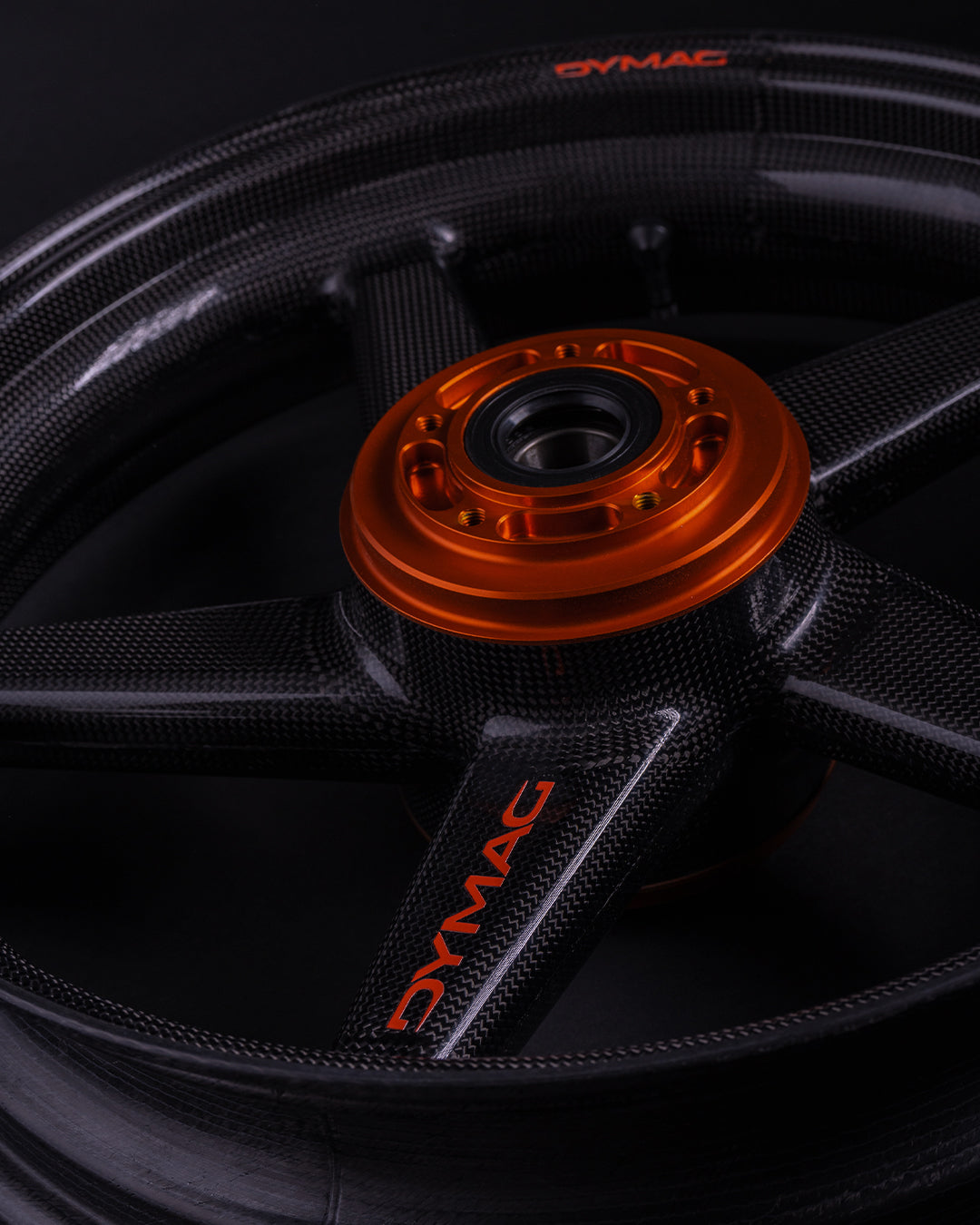

DYMAG CA5 Carbon fiber wheels KTM990 RC/R

Rebuilt for a new era. The all-new CA5 Evo isn’t a simple reissue — it’s a complete ground-up redesign using DYMAG’s newest carbon technology.

• New manufacturing processes and tooling
• Redesigned construction for greater stiffness
• Updated materials and layup for improved impact resistance
• Available at launch for double-sided swingarm setups; single-sided swingarm wheels coming soon after

Materials and Manufacturing Process:

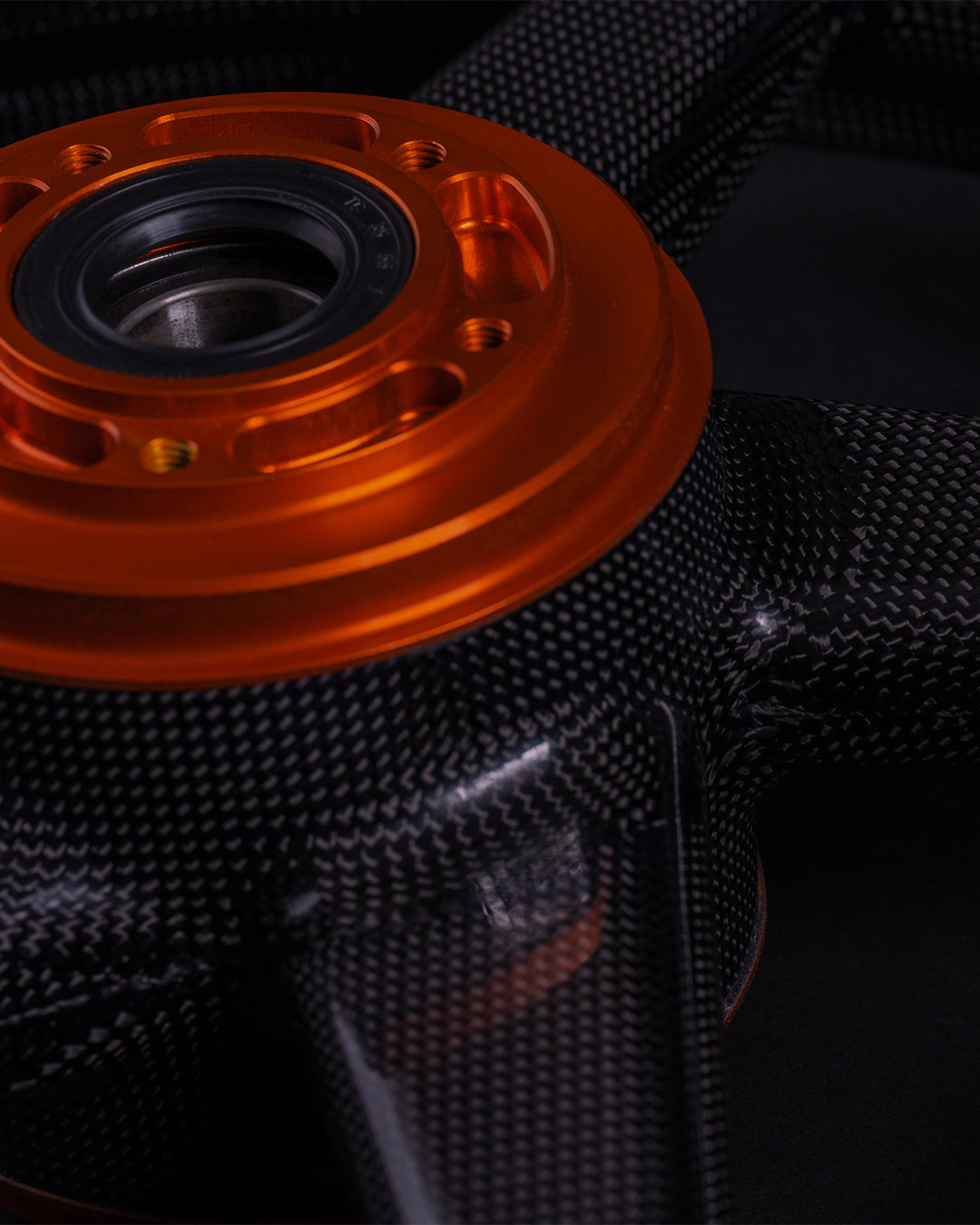

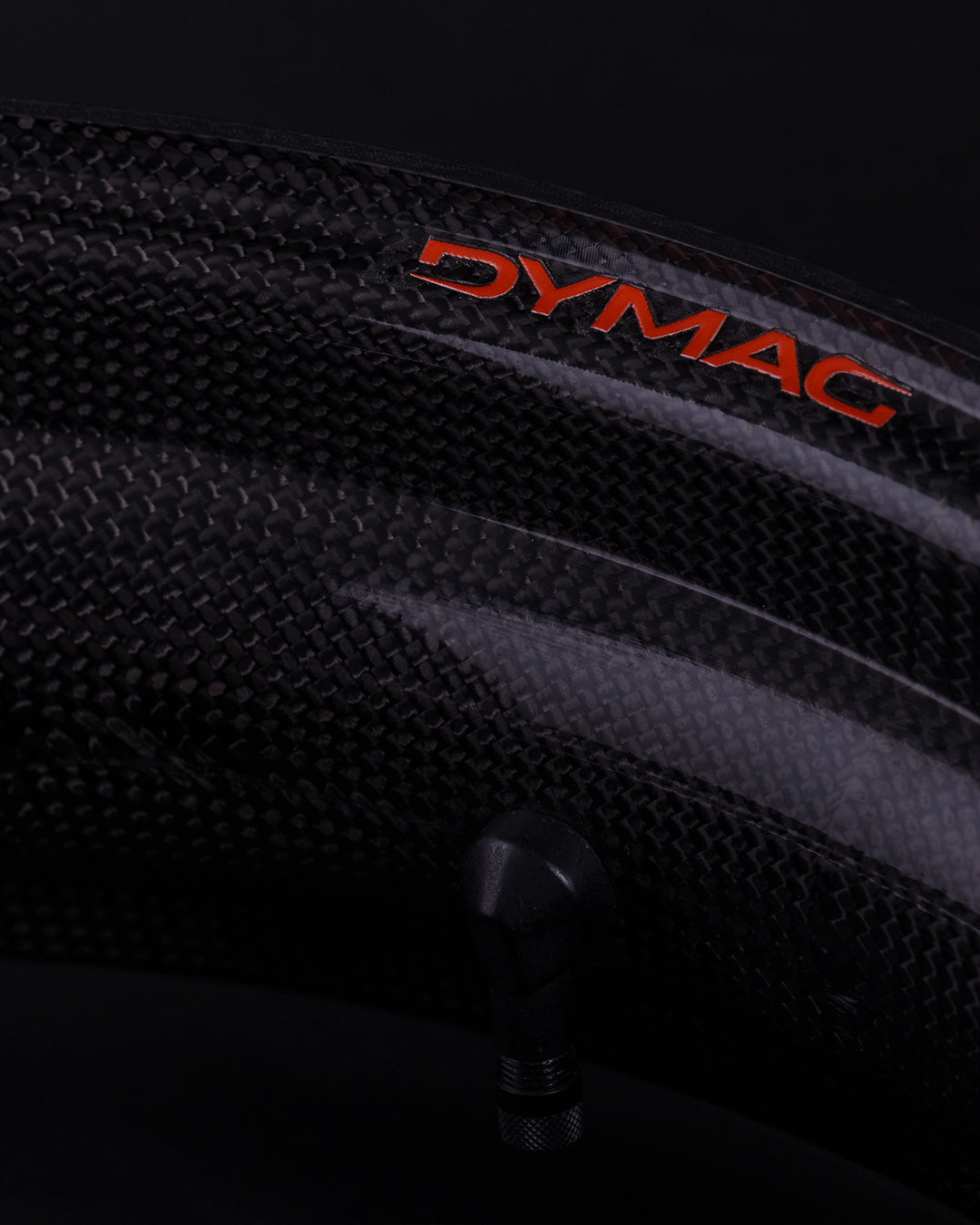

Carbon composite epoxy construction using a multi-axial structural lay-up. Manufactured using a Resin Transfer Moulding (RTM) process with either a 6K plain weave or 3K 4/4 weave surface finish.

Wheel Sizes (Diameter x Width):

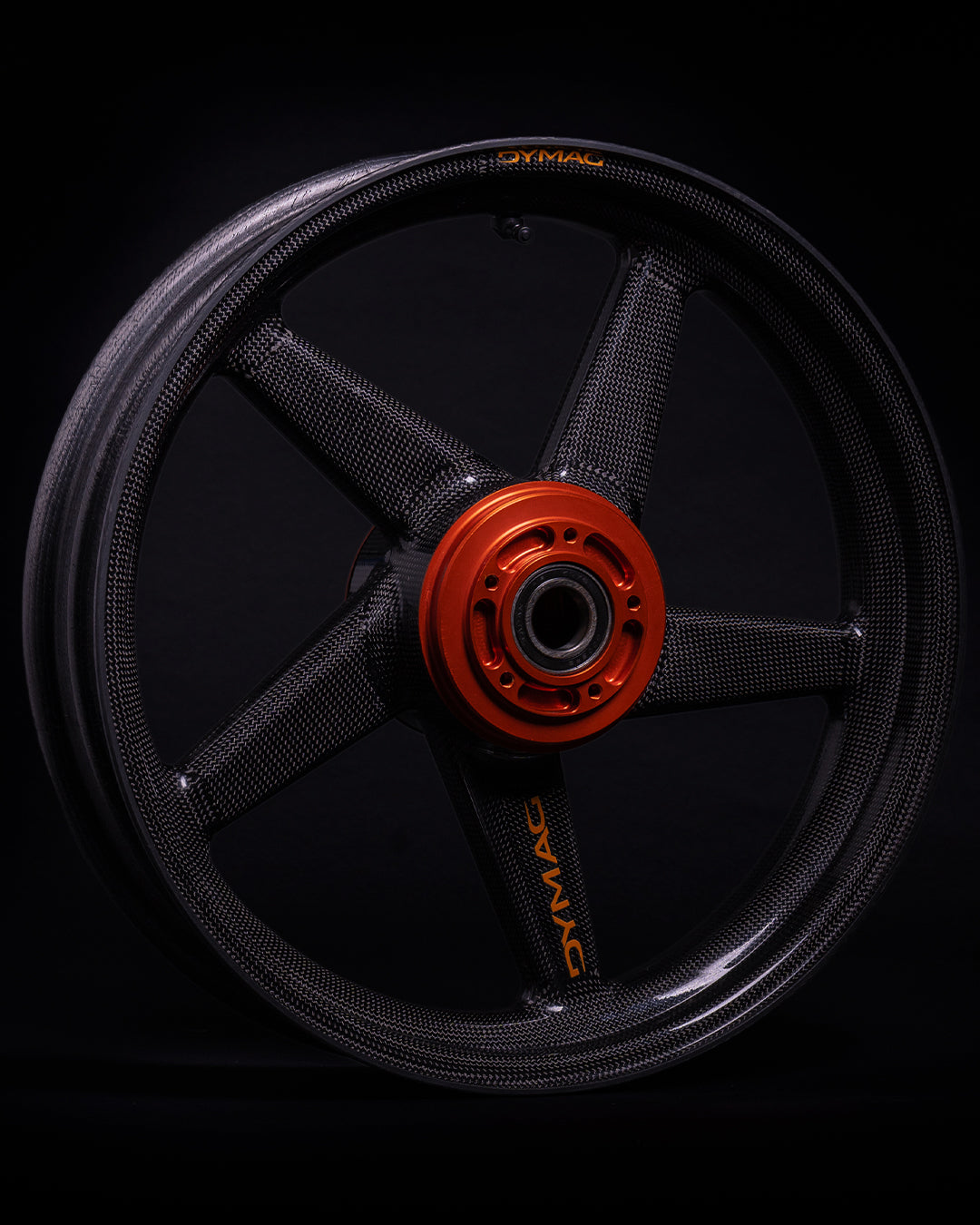

Front: 17 x 3.5.
Rear: 17 x 5.5, 17 x 6.0

Wheel Weight:
Front: 2.5 – 2.7 kg finished weight (depending on application).
Rear: 4.6 – 4.8 kg finished weight (depending on application).

Weight Savings vs OEM Wheels:
Front: typically 23% lighter than forged aluminium, 30% lighter than cast aluminium.
Rear: typically 23% lighter than forged aluminium, 45% lighter than cast aluminium.

Moment of Inertia Reduction:
Front: typically 26% lower than forged aluminium, 34% lower than cast aluminium.
Rear: typically 26% lower than forged aluminium, 51% lower than cast aluminium.

Load Ratings:

Front: 17 x 3.5 – 236 kg (≈ 520.3 lb)

Rear: 17 x 5.5 – 365 kg (≈ 804.7 lb)

Rear: 17 x 6.0 – 387 kg (≈ 852.2 lb)

Compatible with approximately 70% of the current DYMAG® catalogue.
Contact us to confirm compatibility with your make/model.

Certification:
JASO T203-85 certified.
(TÜV certification is in process)

Intended Use:
Road, track and race applications.
