Öhlins AR‑X40 Twin‑Tube TTX Rear Shock (Yamaha Tenere 700)

Öhlins AR‑X40 Twin‑Tube TTX Rear Shock (Yamaha Tenere 700)

$1,758.90
$1,758.90
Vendor: Öhlins
SKU: ARX 0103
This product may not be in stock. Please Contact Us for Availability.

Images are intended to represent the product but may not be an exact match to this product.

We display live inventory for in-stock items. However, due to the vast catalog of products this brand offers, we can drop ship products directly from Öhlins USA. Additionally, many Öhlins products are set up based on specific rider weight before shipping to ensure optimal performance.

Please note that supply chain-related delays are possible. If the item you ordered is backordered, we will contact you with an updated ETA.

If you’d like to confirm availability before placing your order, please feel free to contact us.
Öhlins AR‑X40 Twin‑Tube TTX Rear Shock (Yamaha Tenere 700)

Öhlins AR‑X40 Twin‑Tube TTX Rear Shock (Yamaha Tenere 700)

$1,758.90
Öhlins AR‑X40 Twin‑Tube TTX Rear Shock (Yamaha Tenere 700)

Öhlins AR‑X40 Twin‑Tube TTX Rear Shock (Yamaha Tenere 700)

$1,758.90
Description

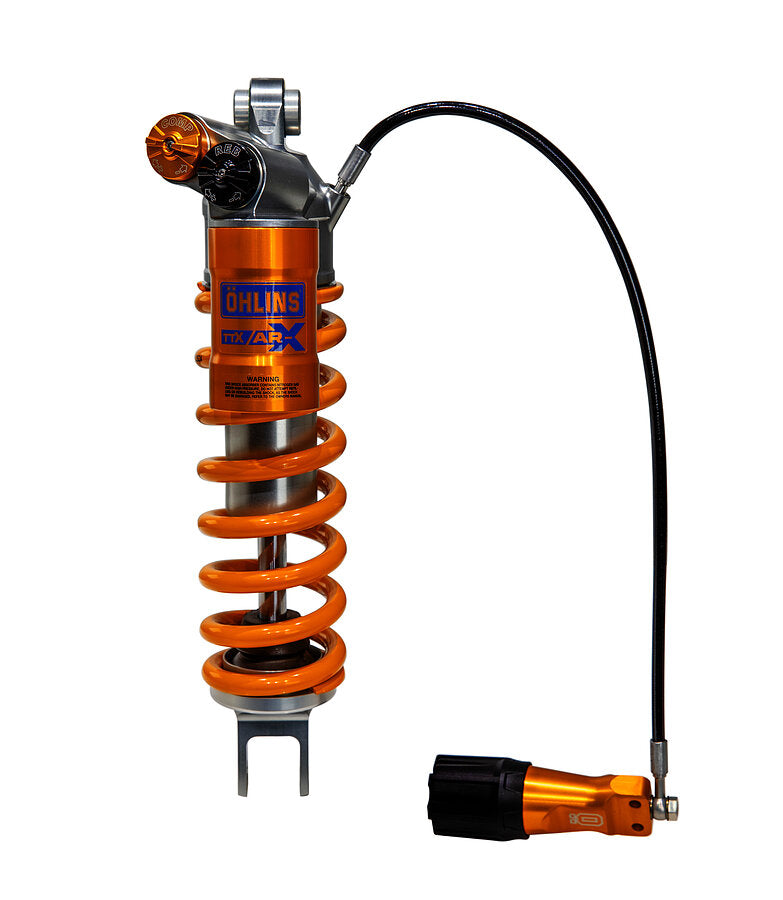

Öhlins AR-X 40 Adventure Shock Absorber ARX 0103 AR-X 40

Presenting the next-generation twin-tube rear shock absorber for adventure motorcycles that provides significantly increased on-road comfort and
off-road performance. The new Öhlins TTX AR-X 40 shock also is well
suited to the higher loads and other operating demands of street and
hyper naked bikes.
TTX AR-X 40 features a 40mm (diameter) piston fitted with a high-speed
blow-off valve that increases comfort and control over an impressively
broad range of damping forces. The new shock is equipped with an
integrated hydraulic preload adjuster that keep the preferred ride height at
increased load and enables riders to increase preload at the damper and adjusting seat height.

Part number

ARX 0103 AR-X 40

Type Code

T40PR1C1S

Twin tube
T

Twin tube

Öhlins Motorcycle type P
P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle TTX44 R1 rebound damping adjuster
R1

Adjustable rebound damping. Allen key above the end eye on TTX44 shocks.

Öhlins Motorcycle TTX36 C1 compression damping adjuster
Öhlins Motorcycle TTX GP C1 compression damping adjuster
C1

Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Öhlins Motorcycle S
S

Hose mounted hydraulic spring preload adjuster.

Technical data

Length: 385 mm
Position: rear
Mounting position: Rear mono
Packaging unit: pieces

Fits for vehicles

Download

Fitment Table
Reviews

Product Specs

SKU: ARX 0103
Downloads:

Mounting Instruction
