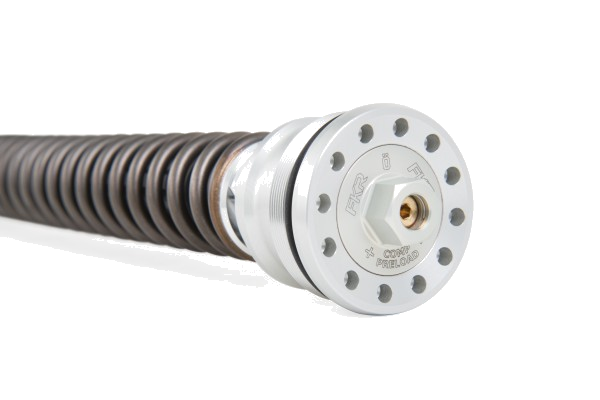

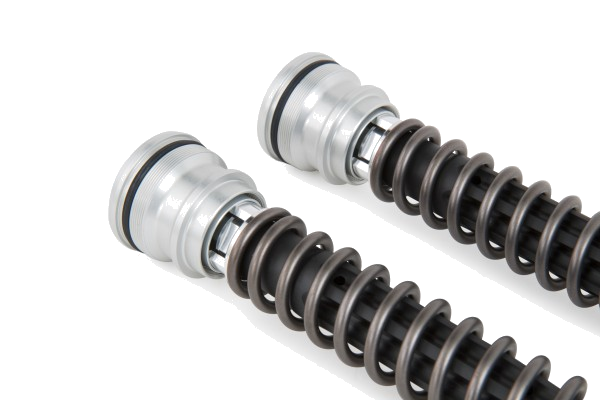

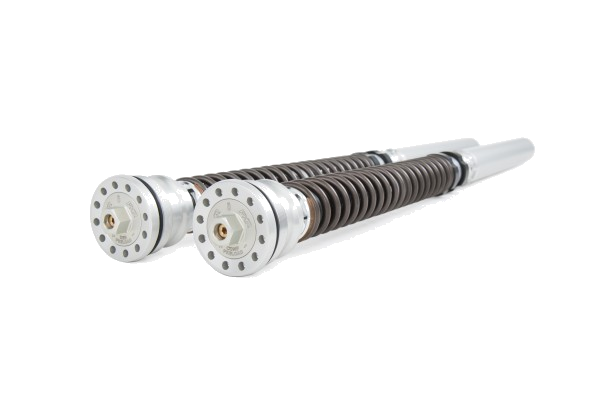

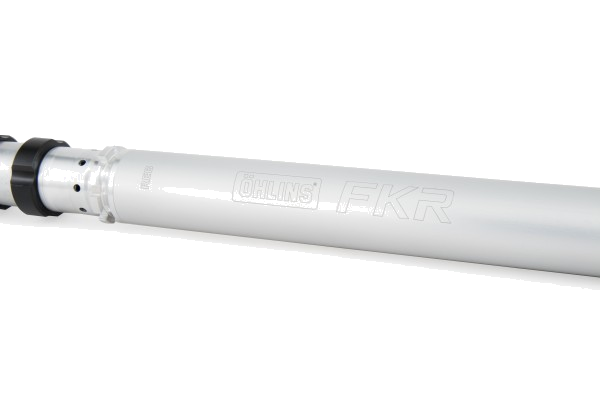

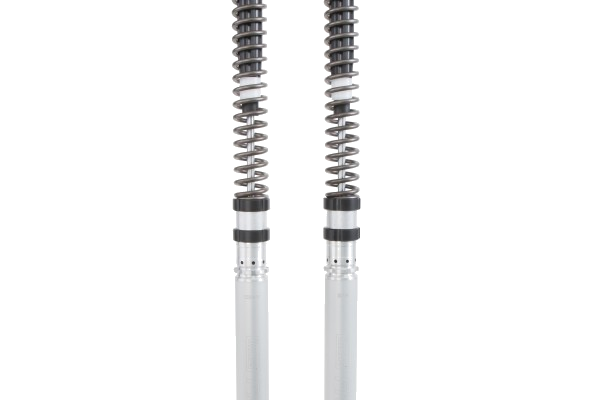

TTX 25 Cartridge Kit (FKR 100) FKR 120

The racing inspired FKR cartridge kit has technology derived straight from the Moto3, Moto 2 and World Superbike championships developed by our engineers in Sweden and is designed for high end racing.

The FKR Cartridge kit features a spring pressurized system, compared to the old gas pressurized system, the spring pressure offers a more simplistic and user friendly design that also accounts for easier maintenance. But there are more advantages of a spring pressurized system. There is no risk of gas leakage, it also gives a more consistent performance curve and allows for a more compact design. With the Öhlins TTX technology, a new designed piston and an 8mm piston shaft we reduce the pressure build-up and create a faster damping response. That gives a “linear” style of damping characteristics which create more tuning options and also increases grip and bump absorption properties while improving chassis stability.

Part number

Type Code

Technical data

Notes

Fits models with Öhlins fork FL 906.
3x different spring rates (9.0, 9.5 & 10.0 N/mm) included.
It is recommended to contact an authorised ÖHLINS Service Center for installation. Race Track use only.

Fits for vehicles

• Triumph Daytona 675 R (2013 – 2018)

  • Without "Teilegutachten" (Germany)
  • Racing product, not for use on public roads

• Triumph Daytona Moto2 765 (2020 – )

  • Without "Teilegutachten" (Germany)
  • Racing product, not for use on public roads
  • Öhlins Fork FL 965
