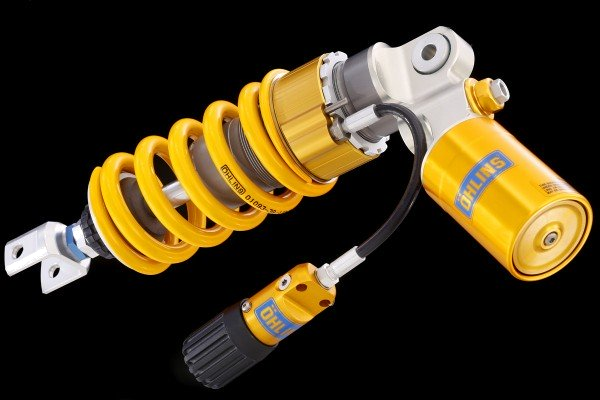

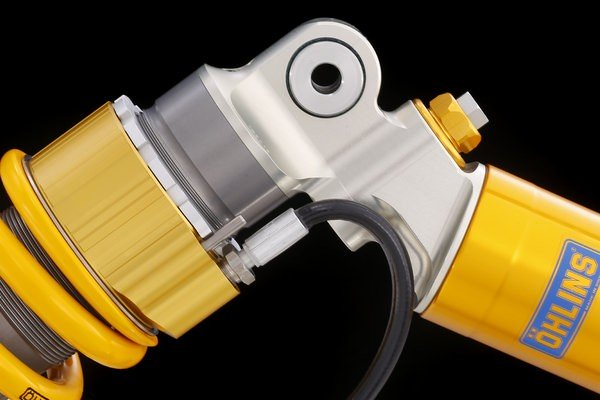

Ohlins HO 204 STX 46 Supersport Shock Absorber
Ohlins HO 204 STX 46 Supersport Shock Absorber

Ohlins HO 204 STX 46 Supersport Shock Absorber

Have a product question?Ask usAsk us
$1,299.00
$1,299.00
Vendor: Öhlins
SKU: HO 204
See Availability Remark below.

Images are intended to represent the product but may not be an exact match to this product.

We display live inventory for in-stock items. However, due to the vast catalog of products this brand offers, we can drop ship products directly from Öhlins USA. Additionally, many Öhlins products are set up based on specific rider weight before shipping to ensure optimal performance.

Please note that supply chain-related delays are possible. If the item you ordered is backordered, we will contact you with an updated ETA.

If you’d like to confirm availability before placing your order, please feel free to contact us.
Ohlins HO 204 STX 46 Supersport Shock Absorber

Ohlins HO 204 STX 46 Supersport Shock Absorber

$1,299.00
Ohlins HO 204 STX 46 Supersport Shock Absorber
Ohlins HO 204 STX 46 Supersport Shock Absorber

Ohlins HO 204 STX 46 Supersport Shock Absorber

$1,299.00
Description

STX 46 Supersport Shock Absorber HO 204

Part number

HO 204

Type Code

S46PR1C2LS

Single tube
S

Single tube

Piston diameter
46

Piston diameter: 46 mm

type P
P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1 rebound damping adjuster
R1

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

S46 C2 compression damping adjuster high and low speed
C2

Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.

L
L

Adjustable length.

S
S

Hose mounted hydraulic spring preload adjuster.

Technical data

Length: 326 +10/-2 mm
Stroke: 63 mm
Rate N/mm: 90 N/mm
Mounted spring: 01092-29

Fits for vehicles

Download

Fitment Table
Reviews
Q&A

Product Specs

SKU: HO 204
