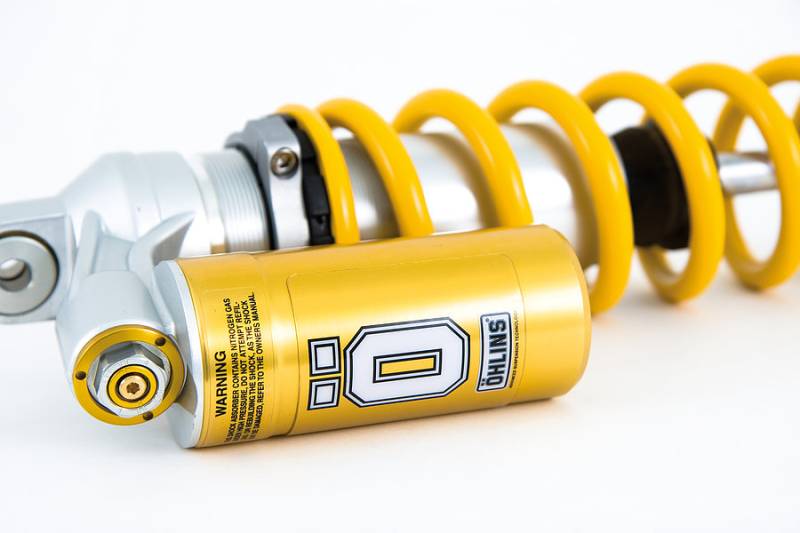

Öhlins STX 46 MX & Enduro Shock Absorber KA 2190
Öhlins MX & Enduro shock absorbers are delivered without spring. The correct spring for the riders weight must be ordered separate. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.
Adjustment Possibilities
- Low speed rebound damping
- Low speed compression damping
- High speed compression damping
- Spring preload
Purchased Parts Package
- Shock absorber STX46
- Spring (select for riders weight, see mounting instruction)
- Owners manual and mounting instruction
Fits the following vehicles
-
Kawasaki KX85, 2021
- Racing product, not for use on public roads
Part number
KA 2190/00698-xx
Type Code
S46PR1C2W
S
Single tube
46
Piston diameter: 46 mm
P
Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
W
Shock absorber delivered without spring, needs to be ordered separately.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C2
Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.
Data
| Position: | rear |
|---|---|
| Spring series: | 00698-Serie |
| Packaging unit: | pieces |
Download
Product Specs
| SKU: | KA 2190 |
|---|
