$1,648.90
$1,648.90
Vendor: Öhlins
SKU: KA 467
See Availability Remark below.

Images are intended to represent the product but may not be an exact match to this product.

We display live inventory for in-stock items. However, due to the vast catalog of products this brand offers, we can drop ship products directly from Öhlins USA. Additionally, many Öhlins products are set up based on specific rider weight before shipping to ensure optimal performance.

Please note that supply chain-related delays are possible. If the item you ordered is backordered, we will contact you with an updated ETA.

If you’d like to confirm availability before placing your order, please feel free to contact us.
Ohlins KA 467 TTX GP Shock Absorber

Ohlins KA 467 TTX GP Shock Absorber

$1,648.90
Ohlins KA 467 TTX GP Shock Absorber
Ohlins KA 467 TTX GP Shock Absorber
Ohlins KA 467 TTX GP Shock Absorber
Ohlins KA 467 TTX GP Shock Absorber
Ohlins KA 467 TTX GP Shock Absorber
Ohlins KA 467 TTX GP Shock Absorber
Ohlins KA 467 TTX GP Shock Absorber
Ohlins KA 467 TTX GP Shock Absorber

Ohlins KA 467 TTX GP Shock Absorber

$1,648.90
Description

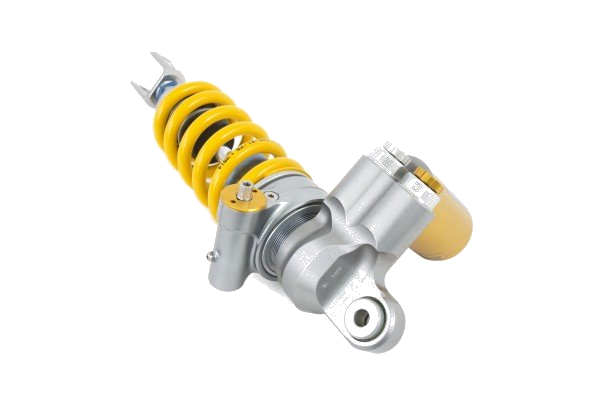

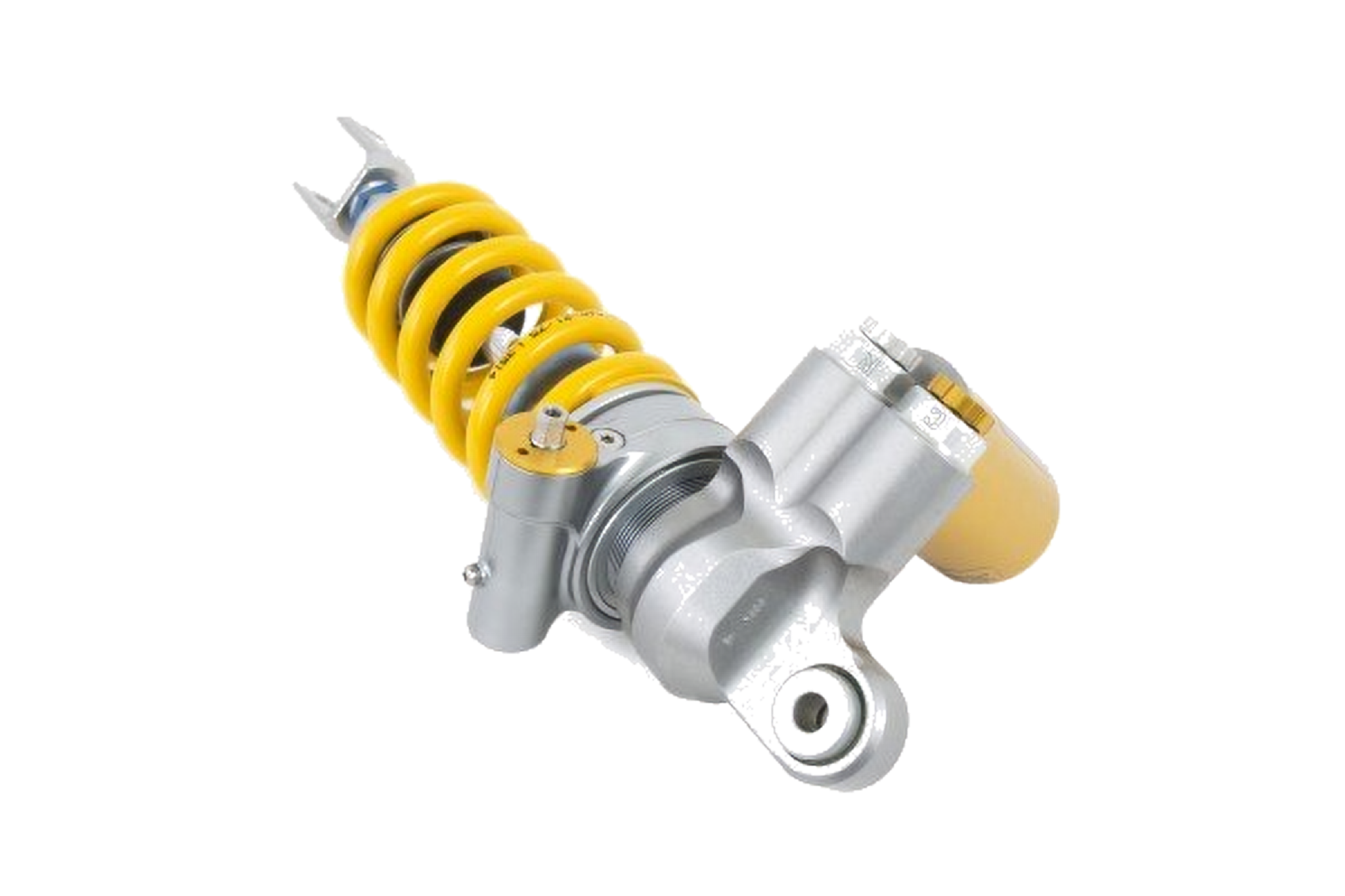

TTX GP Shock Absorber KA 467

Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.

We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!

Öhlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.

Part number

KA 467

Type Code

T36PR1C1LS

Twin tube
T

Twin tube

Piston diameter
36

Piston diameter: 36 mm

type P
P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

TTX36 R1 rebound damping adjuster
TTX_GP R1 rebound damping adjuster
R1

Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

TTX36 C1 compression damping adjuster
TTX GP C1 compression damping adjuster
C1

Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

L
L

Adjustable length.

S
S

Hose mounted hydraulic spring preload adjuster.

Technical data

Length: 341 +2/-4 mm
Stroke: 64 mm
Rate N/mm: 105 N/mm
Position: rear
Mounted spring: 21040-36
Packaging unit: pieces
