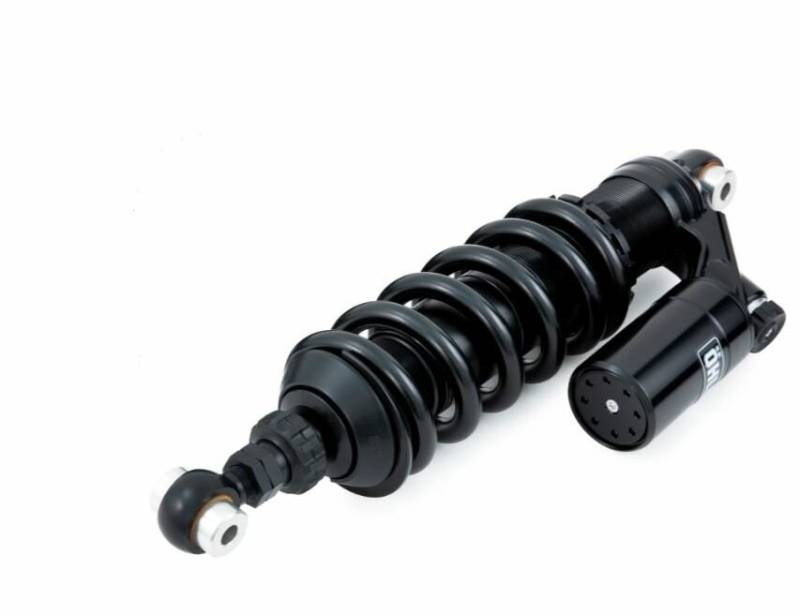

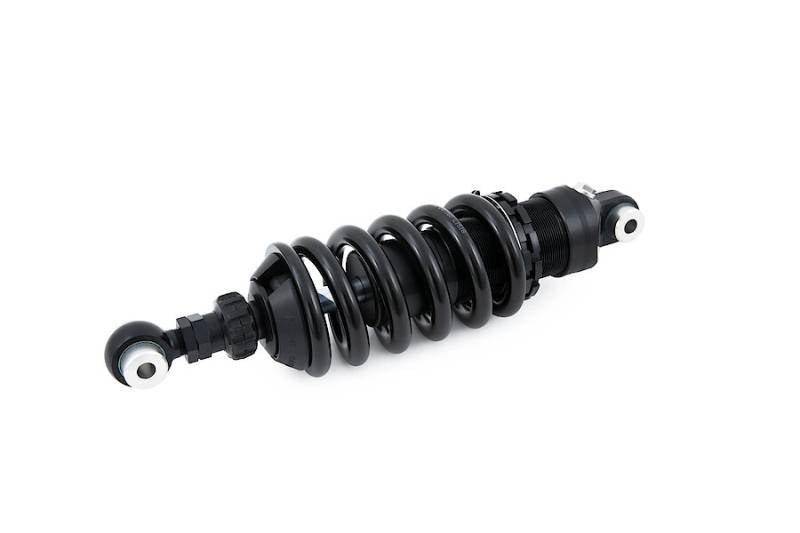

Ohlins KA 740 STX 46 Blackline

Have a product question?Ask usAsk us
$899.00
$899.00
Vendor: Öhlins
SKU: KA 740
See Availability Remark below.

Images are intended to represent the product but may not be an exact match to this product.

We display live inventory for in-stock items. However, due to the vast catalog of products this brand offers, we can drop ship products directly from Öhlins USA. Additionally, many Öhlins products are set up based on specific rider weight before shipping to ensure optimal performance.

Please note that supply chain-related delays are possible. If the item you ordered is backordered, we will contact you with an updated ETA.

If you’d like to confirm availability before placing your order, please feel free to contact us.

Ohlins KA 740 STX 46 Blackline

Ohlins KA 740 STX 46 Blackline

$899.00

Ohlins KA 740 STX 46 Blackline

$899.00

STX 46 Blackline KA 740


Part number

KA 740


Type Code

S46DR1LS

Single tube
S

Single tube

Piston diameter
46

Piston diameter: 46 mm

type D
D

Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

R1 rebound damping adjuster
R1

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

S
S

Hose mounted hydraulic spring preload adjuster.


Technical data

Length: 350 +10/-2 mm
Stroke: 69 mm
Rate N/mm: 100 N/mm
Position: rear
Mounted spring: 21103-34
Mounting length min/max: 348-360 mm
Packaging unit: pieces

Fits for vehicles

Product Specs

SKU: KA 740
