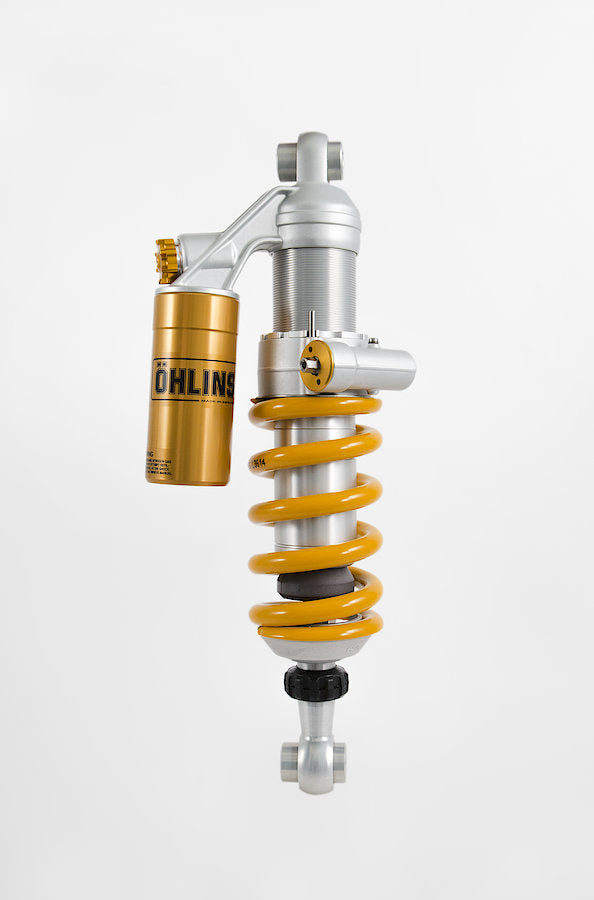

Ohlins STX 46 Street Shock Absorber SU 482 (GSX-8S/R)

Ohlins STX 46 Street Shock Absorber SU 482 (GSX-8S/R)

$1,275.01
$1,275.01
Vendor: Öhlins
SKU: SU 482
This product may not be in stock. Please Contact Us for Availability.

Images are intended to represent the product but may not be an exact match to this product.

We display live inventory for in-stock items. However, due to the vast catalog of products this brand offers, we can drop ship products directly from Öhlins USA. Additionally, many Öhlins products are set up based on specific rider weight before shipping to ensure optimal performance.

Please note that supply chain-related delays are possible. If the item you ordered is backordered, we will contact you with an updated ETA.

If you’d like to confirm availability before placing your order, please feel free to contact us.
Ohlins STX 46 Street Shock Absorber SU 482 (GSX-8S/R)

Ohlins STX 46 Street Shock Absorber SU 482 (GSX-8S/R)

$1,275.01
Ohlins STX 46 Street Shock Absorber SU 482 (GSX-8S/R)

Ohlins STX 46 Street Shock Absorber SU 482 (GSX-8S/R)

$1,275.01
Description

Öhlins STX 46 Street Shock Absorber SU 482

Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

Part number

SU 482

Type Code

S46PR1C1B

Single tube
S

Single tube

Piston diameter
46

Piston diameter: 46 mm

Öhlins Motorcycle type P
P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle R1 rebound damping adjuster
R1

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

Öhlins Motorcycle S36C1 compression damping adjuster
C1

Adjustable compression damping. Adjuster wheel or slot on the reservoir.

Öhlins Motorcycle B
B

Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

Technical data

Length: 309,5 mm
Stroke: 52,5 mm
Rate N/mm: 150 N/mm
Position: rear
Mounted spring: 01093-59
Spring series: 01093-xx
Mounting position: Rear mono
Packaging unit: pieces

Fits for vehicles

Download

Fitment Table
Reviews

Product Specs

SKU: SU 482
