Description

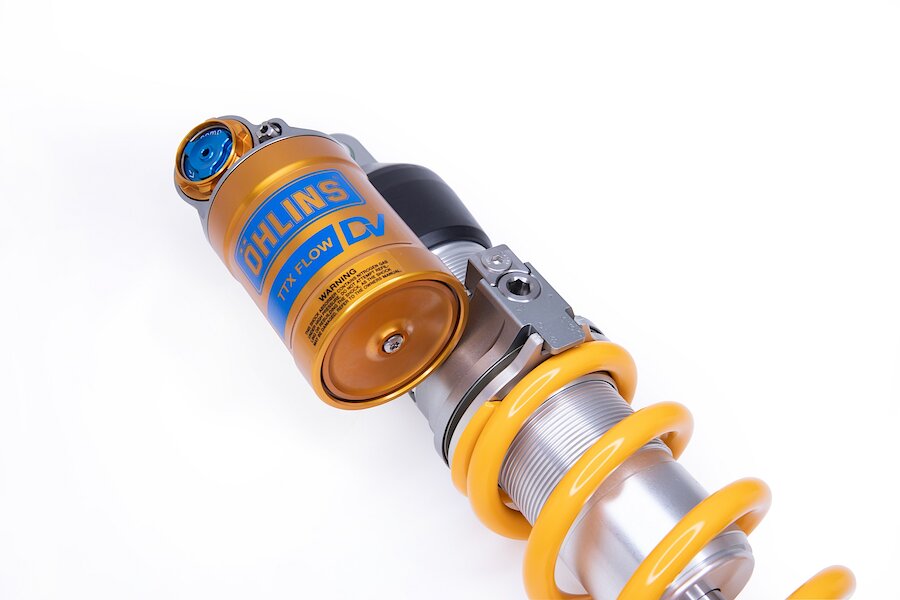

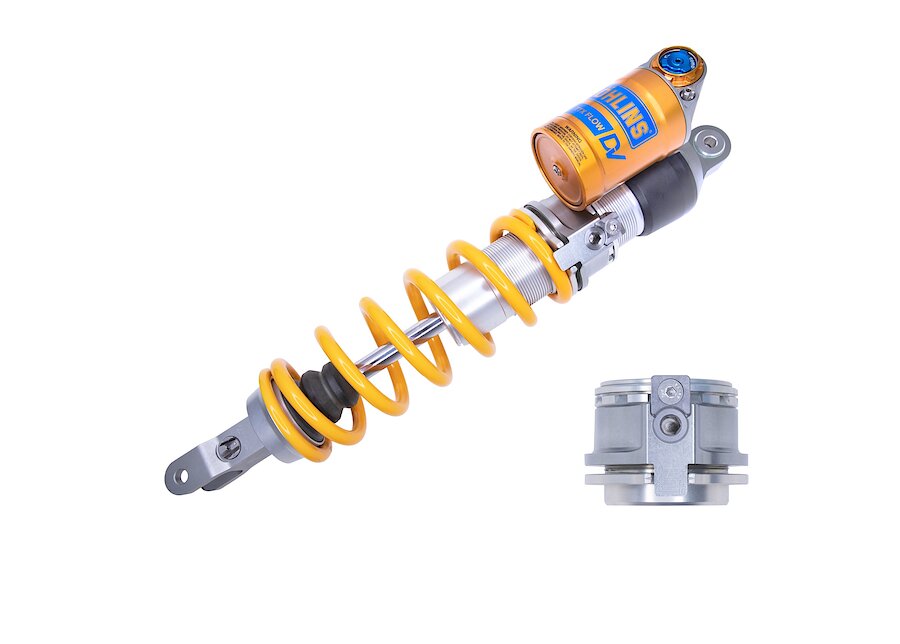

Öhlins TTX Flow DV MX & Enduro Shock Absorber DMX 0309

We are happy to introduce a highly effective high-speed adjuster with unique design at the TTX Flow DV, so far unseen on the market. Our high-speed adjuster is efficiently targeting position, stroking velocity, g-force hold up and bottoming control. Additionally, we have progressed further on comfort and traction through the introduction of a new rebound needle and shaft jet design, which give significant improvements. Furthermore, a new compression valve interface allowing for a more comfortable character on our products.

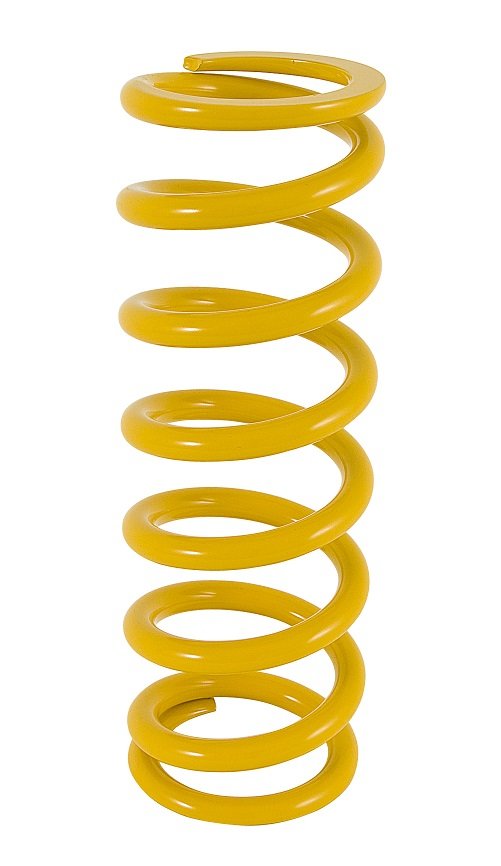

Öhlins MX & Enduro shock absorbers are delivered without spring. The correct spring for the riders weight must be ordered separate. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.

Adjustment Possibilities

  • Low speed rebound damping
  • Low speed compression damping
  • High speed compression damping
  • Spring preload



Purchased Parts Package

  • Shock absorber TTX Flow DV
  • Spring (select for riders weight, see mounting instruction)
  • Owners manual and mounting instruction

Additional Options

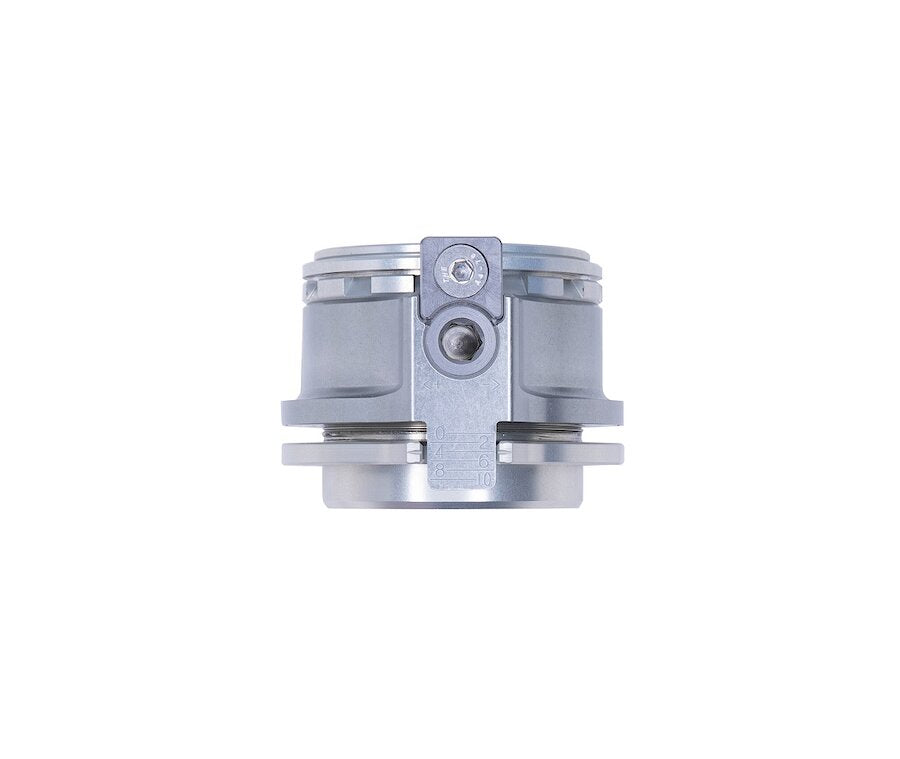

Mechanical spring preload adjusters are available as an additional option to change the sag quick and easy using an 8mm Allen key. Without the preload adjuster the spring preload can be adjusted with c spanners (not in the purchased parts package).

Fits the following vehicles

Part number

DMX 0309/06310-xx

Type Code

T46PR1C2W

Twin tube
T

Twin tube

Piston diameter
46

Piston diameter: 46 mm

Öhlins Motorcycle type P
P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.


W

Shock absorber delivered without spring, needs to be ordered separately.

Öhlins Motorcycle TTX Flow Rebound adjuster
R1 Flow

Rebound adjuster TTX Flow

Data

Length: 457 mm
Stroke: 137 mm
Position: rear
Spring series: 06310-Serie
Recommended oil: 01304-XX
Packaging unit: pieces
