Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)
Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)
Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)

Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)

$1,648.90
$1,648.90
Vendor: Öhlins
SKU: DU 568
This product may not be in stock. Please Contact Us for Availability.

Images are intended to represent the product but may not be an exact match to this product.

We display live inventory for in-stock items. However, due to the vast catalog of products this brand offers, we can drop ship products directly from Öhlins USA. Additionally, many Öhlins products are set up based on specific rider weight before shipping to ensure optimal performance.

Please note that supply chain-related delays are possible. If the item you ordered is backordered, we will contact you with an updated ETA.

If you’d like to confirm availability before placing your order, please feel free to contact us.
Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)

Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)

$1,648.90
Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)
Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)
Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)

Ohlins TTX GP Shock Absorber DU 568 (Ducati Panigale V4)

$1,648.90
Description

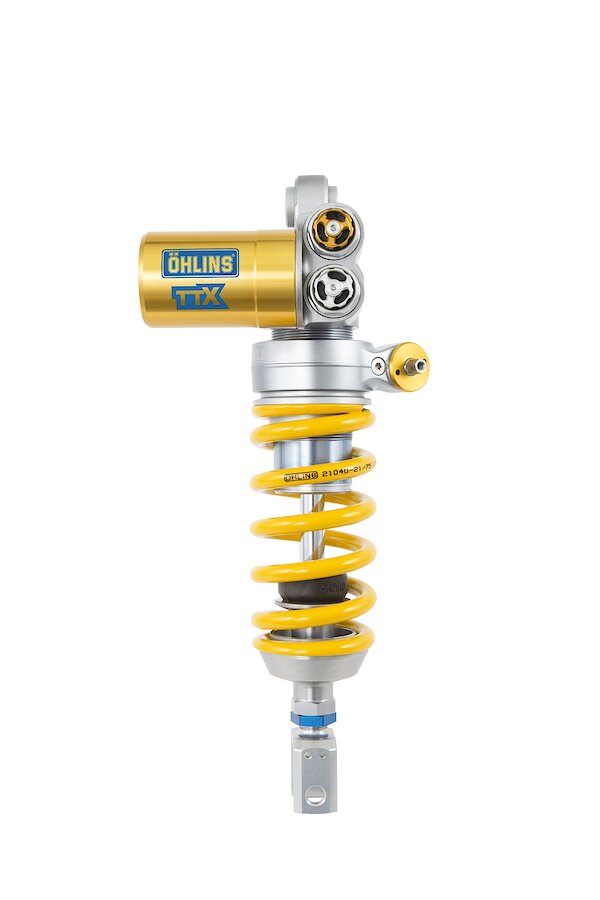

Öhlins TTX GP Shock Absorber DU 568

Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance. We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork! Öhlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.

Part number

DU 568

Type Code

T36PR1C1B

Twin tube
T

Twin tube

Piston diameter
36

Piston diameter: 36 mm

Öhlins Motorcycle type P
P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

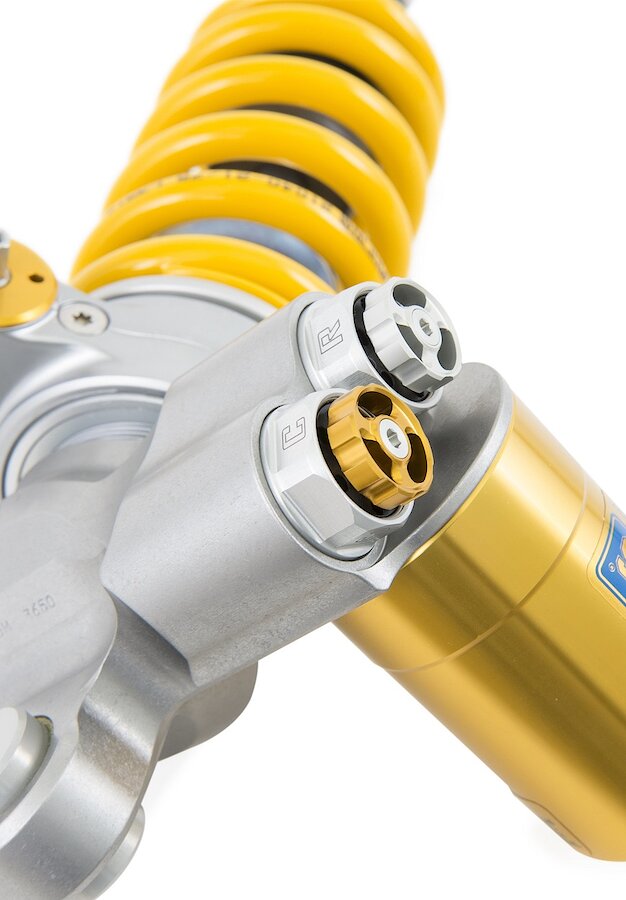

Öhlins Motorcycle TTX36 R1 rebound damping adjuster
Öhlins Motorcycle TTX GP R1 rebound damping adjuster
R1

Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

Öhlins Motorcycle TTX36 C1 compression damping adjuster
Öhlins Motorcycle TTX GP C1 compression damping adjuster
C1

Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Öhlins Motorcycle B
B

Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

Technical data

Length: 282 mm
Stroke: 65 mm
Rate N/mm: 85 N/mm
Position: rear
Mounted spring: 21040-26
Spring series: 21040-xx
Packaging unit: pieces

Fits for vehicles

Download

Fitment Table
Reviews

Product Specs

SKU: DU 568
