Qnium Rear Brake Master Cylinder Top Side 12mm piston w/ 40mm mount
Ask us
- $431.00
- $431.00
- Unit price
- per
4 interest-free payments or as low as $39/mo with Affirm. Check your purchasing power
Vendor:
Qnium
SKU:
1052300
This item is out of stock but available to order.
See Availability Remark below.
Choose Your Product Options:
Choose Region *
Choose your region
Painting Format *
Choose between high resolution ready-to-print digital image or a museum quality canvas print
Image Resolution *
Choose Image Resolution
Frame
Portrait Canvas Size (With Frame) *
Choose Canvas Size
Add HQ Digital Image
Add a high resolution 300 DPI ready-to-print digital image to go along with your canvas print
Mint as NFT
Mint this AI artwork as an NFT on Polygon and display it in our Legacy AI meta gallery

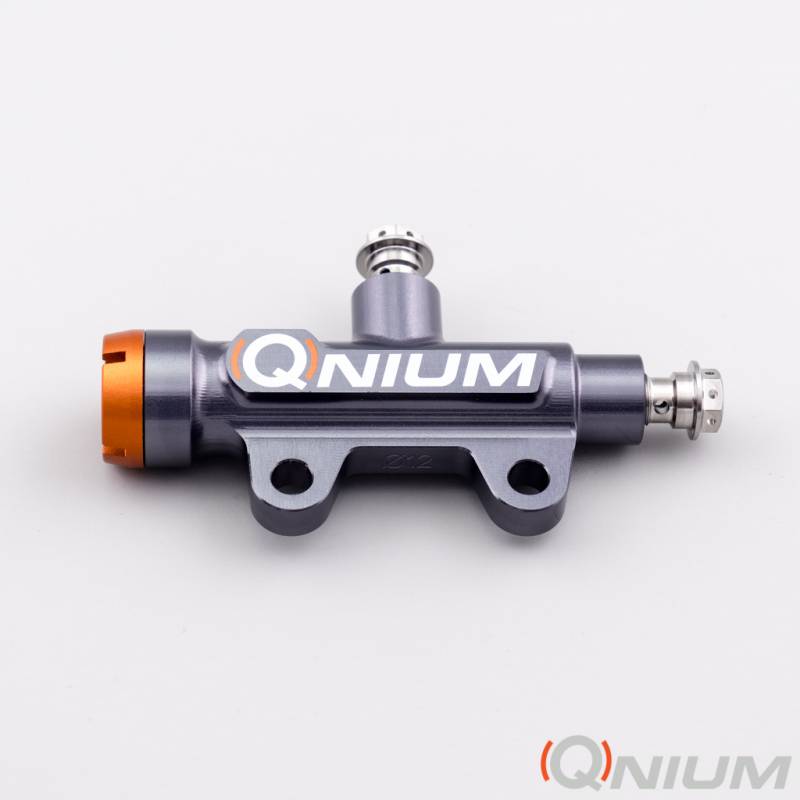

Qnium Rear Brake Master Cylinder Top Side 12mm piston w/ 40mm mount 1052300
*Please make sure to measure your mounting distance (center to center) of your existing rear brake master cylinder for proper fitment before ordering; Also please check and see if it is a integrated push rod version or not. - If you have any questions please feel free to reach out!
Typically seen:
Brembo = 40mm Mounting Distance without integrated pushrod (European bikes)
Nissin = 50mm Mounting Distance with integrated pushrod (Japanese bikes)
-Made to fit with the Qnium Rear Thumb Brake or Qnium Left Hand Brake.
-Banjo Connection: Rear foot brake is top banjo. Rear Thumb Brake / Left Hand Brake connection is Side banjo
-Banjo Type: M10x1
-40mm Mounting Distance
-12mm Piston
-Available with our without threaded push rod, please verify your type of existing rear master cylinder before purchasing. If you have any questions please feel free to reach out!
This high quality rear brake master cylinder has been specially developed for people who want to keep the rear foot brake in addition to the Qnium thumb Brake or Left Hand brake. These rear brake master cylinder comes with an extra banjo connection for the Qnium thumb brake or Left Hand brake. Of course the Qnium Rear thumb brake or Left Hand brake can also be mounted directly on the rear brake caliper without a rear brake master cylinder.
Used in Moto2, Moto3, and in other FIM world championships
Made In Netherlands
Do you want to continue to use your foot brake in combination with a thumb brake or hand brake? The Rear Master Cylinder Top Side rear brake pump from Qnium is your way to go. With this product you can use the foot brake, thumb brake or hand brake according to how you like it most. Do you have to brake enormously at an emergency? Then you can still apply your foot brake!
Qnium advises to keep the pedal brake as well as the thumb or finger brakes. So you, as a rider, always have the possibility to choose between two options. Especially in case of emergencies it is great, if the rider can also use the footbrake. With Qnium’s Rear Master cylinder you have the option to connect a thumb brake or left hand brake while retaining the foot brake.
Technical Specifications:
Connection: Rear foot brake is top banjo. Rear Thumb Brake / Left Hand Brake connection is Side banjo
Mounting Distance: 40mm
Material: Aluminum 6082 - High gloss anodized.
Color: Titanium, Platinum, Orange.
Piston 12mm - Aluminum 7075
Brake oil DOT 4.0 or 5.1
Bolts: Pro-Bolt Titanium, Race Spec
Banjo: Pro-Bolt Titanium, Race Spec
Custom Seal Design for better brake feeling
*Do you need help choosing the right Qnium Rear Master? We are here to help you. Please feel free to contact us.
