ROTOBOX RBX2 Front SUZUKI Hayabusa 08-12 /B-King 2008

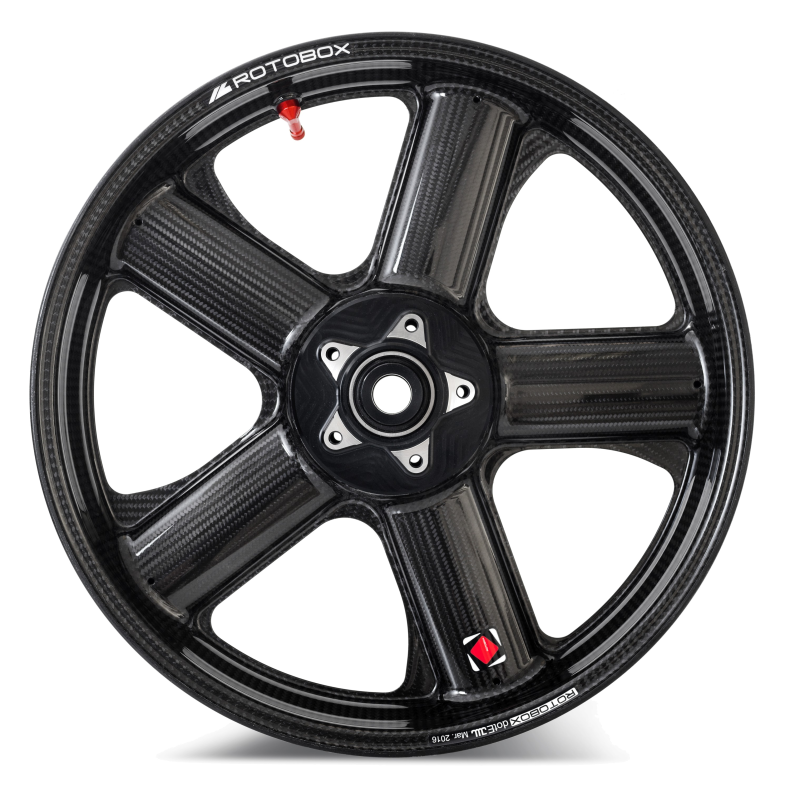

Rotobox RBX2 Front Wheel

ASSEMBLING COMPONENTS

Carbon fiber composite rim, a one-piece hollow carbon cast, reinforced with stainless steel wire and UV protected; 7075 T6 aluminium alloy hubs, spacers and sprocket carrier [only with rear symmetric wheel]. machined from solid and hard anodized; polyurethane cushion drive set; SKF bearings; aluminium valve stem.

PRODUCT QUALITY CONTROL

Your Rotobox wheel has its own Serial Number to track the production history. We confirm to have performed quality verification procedure of your Rotobox wheel.

SIZE

17" x 3.5"

WEIGHT

REAR WHEEL WEIGHT 2.58 kg / 5.68 LBS

MAX. STATIC LOAD

REAR 150 kg / 330 LBS

MAX. OPERATING TEMPERATURE

100 C / 212 F

MAX. PRESSURE

4 BAR / 58 PSI

The wheels conform to safety standard JASO T203-85 for JWL dotE Certification. Before riding on public streets, be sure to check your local regulations.

The complete set of RBX2 wheels, without brake rotors and sprocket, weighs:

6,65 kg (14.6 lbs) for Kawasaki ZX10R

6,61 kg (14.5 lbs) for Aprilia RSV4

6,90 kg (15.1 lbs) for BMW S1000RR

5,35 kg (11.6 lbs) for Ducati 1199 Panigale

UV PROTECTIVE COATING

The carbon cast is protected from radiation with a very thin layer of special clear UV protective coating. Together with the clear and smooth rim surface it ensures the wheel a zero notch effect.

HIGH QUALITY CENTER PARTS

For each motorcycle model the hubs are CNC machined from high quality 7075 T6 aluminum alloy used in the aviation industry, anodized into optional color and permanently assembled to the carbon rim.

ANODIZED 90° ANGLED VALVE STEM

The high quality 90° angled valve stem ensures air pressure resistance at highest speeds. Besides the default red color, the valve can also be provided in the colors black, silver, gold, green or blue.

VENTING HOLE

To prevent condensation and assure long lasting product quality a venting hole is placed on the bottom of each wheel spoke.

REVOLUTIONARY RIM REINFORCEMENT

Due to our industries unique 3 component composite we are able to increase the impact resistance of our products by inserting a stainless 2.5 mm steel wire in each side of the rim.

IMPROVED ROTATIONAL AERODYNAMICS

Aerodynamics is, besides the overall wheel weight, the key element for improving the overall bike performance. To lower the aerodynamic coefficient during rotation the cross-section of the spokes are shaped elliptically.

A RIB FOR TORQUE RESISTANCE

A functional design element that improves torque resistance is the rib on each spoke of the wheel.

Titanium Hex Head Bolts M10x1.5x25mm

Made from Aircraft Spec Grade 5 Titanium Alloy. Special high performance design by Rotobox. Precision machined with rolled threads and completely corrosion free. Excellent durability and minimum weight, 45% lighter than steel equivalents. Available optionally with the wheels.
