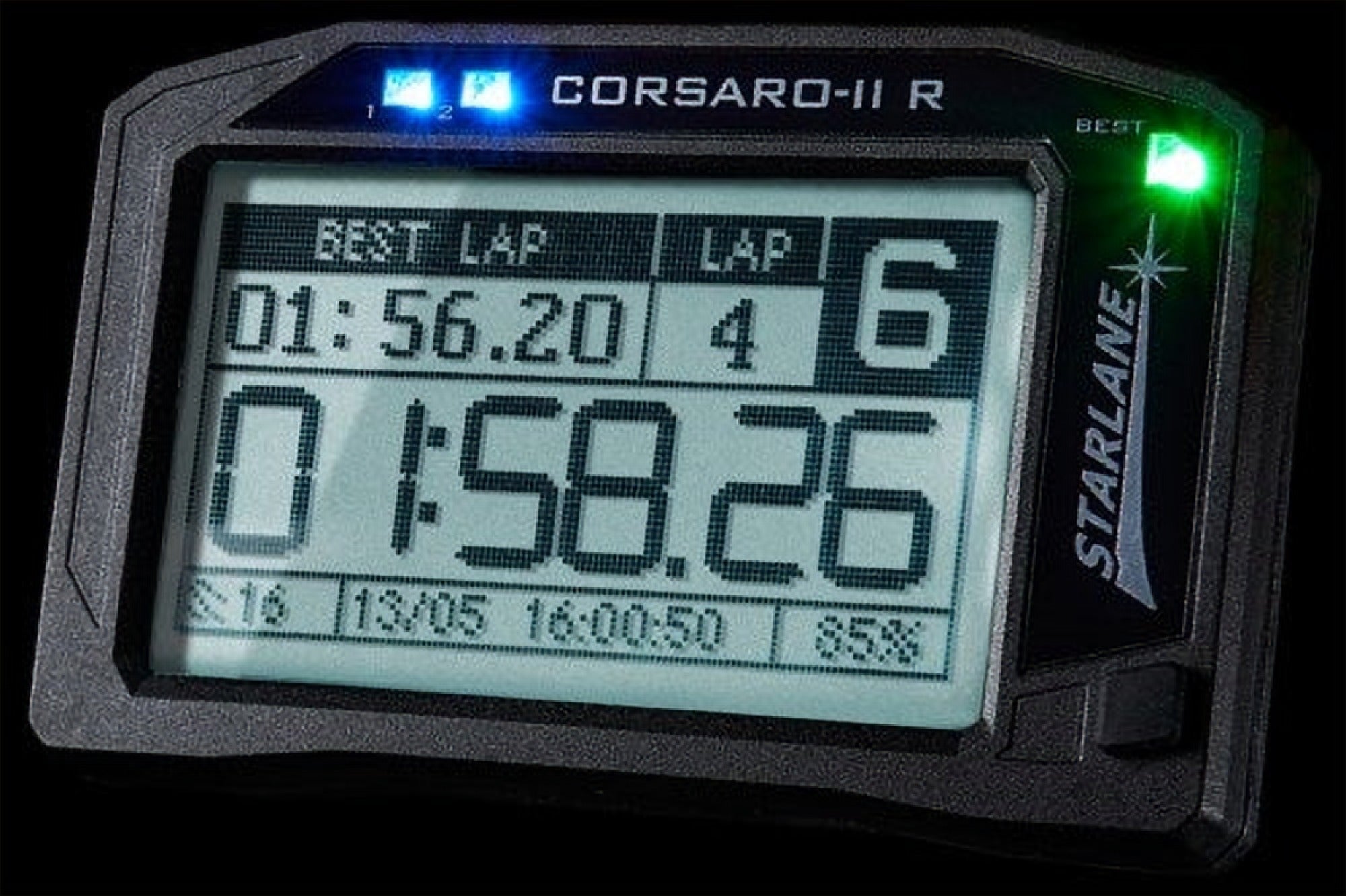

Starlane Corsaro II R GPS Lap Timer

TRIPLE CONSTELLATION GPS+GLONASS+GALILEO PROFESSIONAL LAP TIMER
WITH WIRELESS SENSOR EXPANSIONS AND
MONOCHROMATIC TRANSFLECTIVE DISPLAY WITH TOUCH SCREEN

THE MOST INNOVATIVE

CORSARO is surely, by full right, the most innovative product in the field for the philosophy by virtue of which it has been conceived and designed, as well as for its technology enclosed in a compact design executed with the greatest care.

PREDICTIVE LAP TIMING FUNCTION

During each lap, the expected lap time and gain are shown on the display in advance with respect to a selectable reference lap to choose between: best of the session - best of the day - best of a session of your choice in memory.

INTEGRATED LIBRARY WITH OVER 1000 TRACKS

Allows the immediate use thanks to the built-in library of over 1000 tracks with intermediates, between which the device automatically recognizes the current one. In the remote case that your track is not included in the library,
the SAFD-2 (Starlane Automatic Finish line Detection) function will automatically divide the track after the first 2 laps, allowing you to see your times and splits, already from the first session without intervening on the laptimer.

THE SOLE CABLELESS IN THE WORLD

Corsaro is the only system in the world that allows you to avoid annoying cables for bike signals acquisition, thanks to wireless data transmission between the tiny optional WID modules and the display unit.

You can see the lean angle degrees on the specific screen page
which indicates the current angle and the maximum degrees reached in the last right and left corners.
The screen also shows the maximum degrees reached in the session
differentiated between right and left corners.

WID-C MINIATURIZED WIRELESS MODULE AS AN OPTION

(code WC3A)

Available Inputs:

• 3 Generic Analog for the connection of sensors with 0-5V analog output as, for example: linear potentiometric suspension sensors with codes: SSLIN075M8, SSLIN150M8, SSLIN075PROM8, SSLIN150PROM8 or brake pressure sensor with code SSPBK60M8.
• CAN BUS Line for compatible vehicles and for Starlane RID Modules.
• Power Supply: 12V from vehicle.
• Dimensions: 60mm X 44mm X 21mm.

OPTIONAL RID-LAMBDA MODULE

(code RID2RLT)

It comes with BOSCH LSU4 Wide Band Lambda sensor and, by means of the supplied transmitter, transmits to CORSARO Air/Fuel ratio, Engine RPM and Throttle Position values to achieve the best mapping for your engine management system.

NEW DATA ANALYSIS SOFTWARE FOR ALL DAVINCI-II, CORSARO AND STEALTH GPS-3/4 SYSTEMS

Version:2.0.086 for Windows Release date:26/07/2024

• OS requirement: Windows 11, Windows 10, Windows 8, Windows 7

NEW DATA ANALYSIS SOFTWARE FOR ALL DAVINCI-II, CORSARO AND STEALTH GPS-3/4 SYSTEMS

Version:2.0.086 for Apple Mac OS X Release date:22/11/2024

• OS requirement: Apple Mac OS X High Sierra and following. ATTENTION! Currently not compatible with Monterey and Ventura in regards to Bluetooth and USB connectivity only.

Android

DATA ANALYSIS APPLICATION FOR STARLANE DEVICES

Version:1.0.5 Release date:03/08/2021

iOS

Mac DATA ANALYSIS APPLICATION FOR STARLANE DEVICES
