AiM EVO4S 1.3Meter GPS

The EVO4S acquires data from your ECU via CAN, RS232 or K-line and also from the internal accelerometers, gyro and GPS08 Module in the kit.

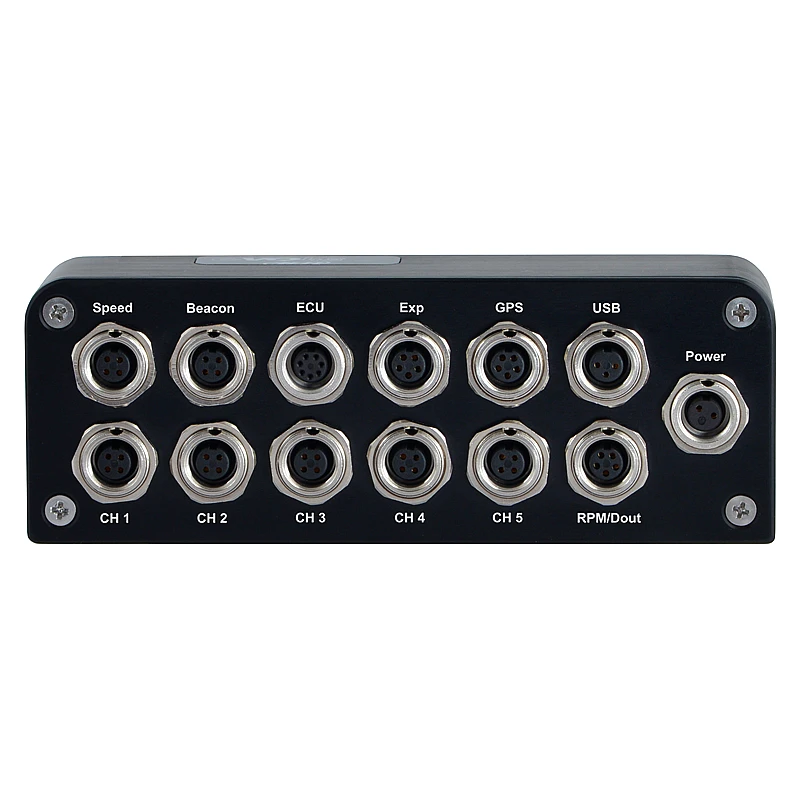

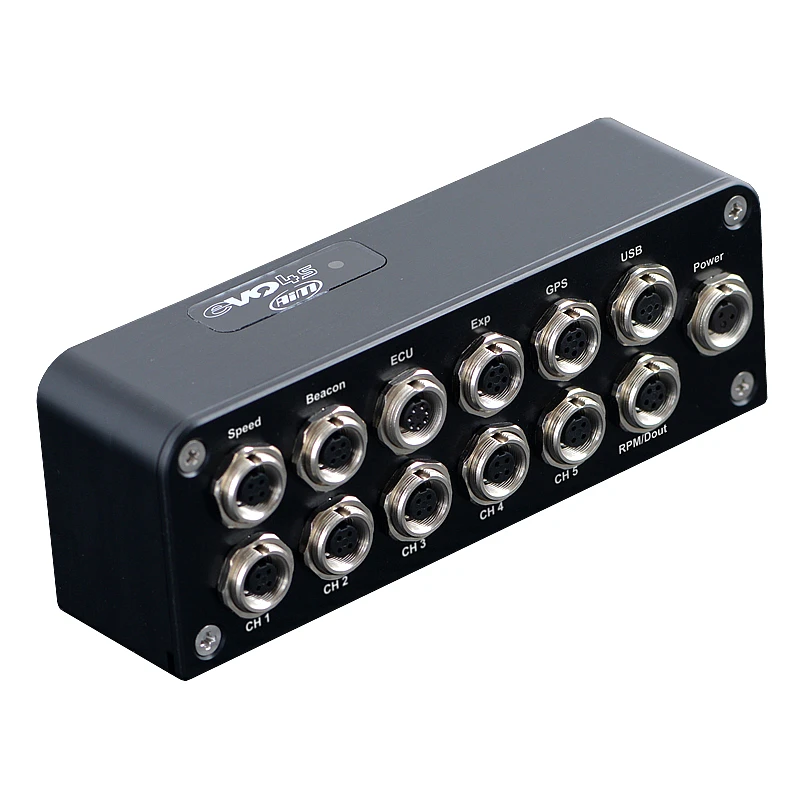

The new powerful and flexible datalogger Aim Evo4s Motorcycle Racing Data Logger is the evolution of the well known EVO4. It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of Aim dashloggers and with the new powerful Race Studio 3 software.

Aim EVO4s

The Evo4s Motorcycle Racing Data Logger is the new powerful and flexible data logger, an evolution of the well known EVO4. It maintains the same one connector per channel connection logic, but with a completely redesigned internal electronic board. Aim EVO4s is fully compatible with the last generation of Aim dash/displays and with the new powerful Race Studio 3 software.

A wide range of sources for your data

The Evo4s Motorcycle Racing Data Logger samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 module included in the kit. Also get data from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.

Sensors

Many sensors can be connected to EVO4S via:

• 5 Analog channels with configurable 12 bit 0-5 Volt, 0-500 mV, 0-50 mV inputs or thermocouple input, used to sample data coming from temperature, pressure, suspension and other kinds of sensors.
• 2 Speed inputs, which allow to monitor the different wheels behavior.
• 1 RPM input, which manages square wave signals transmitted by the ECU, or pulse signals picked from the coil command (low voltage).

Internal three-axial accelerometer and gyro sensor

A built-in inertial platform lets you have the most powerful system for understanding oversteering, understeering, banking, etc.

Digital Output

EVO4S features a 1 amp at 12 volts digital output. You can configure it in order to turn it on or off depending on the value of the analog or digital inputs, ECU values, expansion values, GPS information or math channels.

CAN Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Expand your EVO4s as much as you need

Add expansion modules via our built-in CAN bus:

Channel Expansion

It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

LCU-One CAN

Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam HD cameras

The on-board cameras that overlays on videos the data sampled by your logger.

Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM logger in order to record the data during your tests.

and all sensors you may need to improve the EVO4S performance.

Connection Example

Available Displays

Download your EVO4s data to a pc for professional data analysis.

Data recorded by EVO4S can be downloaded to PC and analsed with the professional Race Studio Analysis software: graphs, histograms and tables will help you evaluate your performance, providing an objective support to avoid mistakes and improve your driving technique.
