AiM EVO5 W/ GS-DASH 1.3 METER GPS

The Aim 5" GS-Dash Compact Motorcycle Display. Shows data from the Aim EVO4S and EVO5. It displays engine ECU, GPS, G’s and other sensor data.

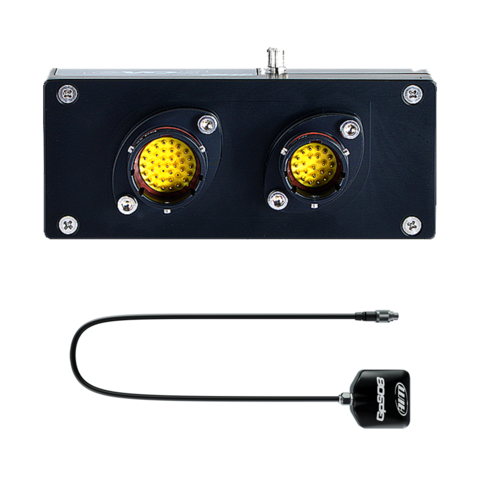

Showing data sampled by the new generation of Aim data loggers, EVO 4S and the Aim EVO 5. All data coming from your vehicle’s ECU, from the accelerometers, from the GPS module as well as from your custom sensors.

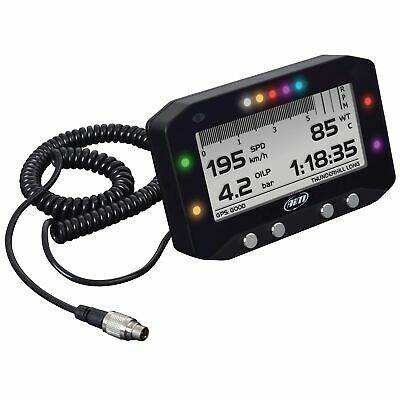

Aim GS-Dash Motorcycle Racing Dash Display

Easy and immediate readability

In its compact structure, GS-Dash motorcycle display features a wide 268 x 128 pixel display to maximise readability. The screen can be backlit in one of the seven available colours. The incorporated light sensor makes brightness and contrast ideal in all light conditions.

Up to 9 pages showing the data you wish, as you wish

GS-Dash Motorcycle Racing Dash Display swaps among pages showing lap times and data in a 100% customisable way: just choose your data and create your pages displaying up to 8 fields each. The "RPM and Lap Time" page layout is also available to display RPM Graph, Lap Time and three channels of your choice.

Lap times

You can visualise the rolling time, or static or predictive lap time (as an absolute value or as a difference vs. the Best Lap).

Fully configurable shift lights and alarm LEDs

GS-Dash Motorcycle Racing Dash Display features five individually configurable RGB LED shift lights: you will choose colour and value thresholds for their activation. In addition, they can also be configured to show your best lap/split time or monitor RPM level. Alarms LED's are configurable as well and can be managed in a very flexible way. You can choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch-off.

Easy configuration

Shift Lights and alarms are to be configured using Race Studio 3 configuration panel.

Recall your session highlights

A key-data summary is available at the end of each session: the three best laps of the session with their times, min/max speed and min/max RPM's. In the following pages you can also see a list of all the laps of the session.

Keyboard operations

GS-Dash Motorcycle Racing Dash Display can perform some operations via the pop-up keyboard:

• Enabling/disabling the backlight
• Selecting the track you are racing in the list of the 30 nearest tracks automatically prompted by GS-Dash
• Checking GS-Dash firmware version
• Deleting the data stored in EVO4S/EVO5 memory

Compact and resistant chassis

Its small dimension makes it particularly suitable for small cockpit installation (i.e. bikes, formula cars). Totally made in aluminium, with edge-to-edge glass and metallic push buttons, GS-Dash is robust and fully waterproof.
