Aim MXG 1.2 Motorcycle Dash Data Logger
Ask us
- $2,899.00
- $2,899.00
- Unit price
- per
Starting at $141/mo or 0% APR with Affirm. Check your purchasing power
Vendor:
AiM Sports
SKU:
X19MXGGPS130
This item is out of stock but available to order.
See Availability Remark below.
Choose Your Product Options:
Choose Region *
Choose your region
Painting Format *
Choose between high resolution ready-to-print digital image or a museum quality canvas print
Image Resolution *
Choose Image Resolution
Frame
Portrait Canvas Size (With Frame) *
Choose Canvas Size
Add HQ Digital Image
Add a high resolution 300 DPI ready-to-print digital image to go along with your canvas print
Mint as NFT
Mint this AI artwork as an NFT on Polygon and display it in our Legacy AI meta gallery

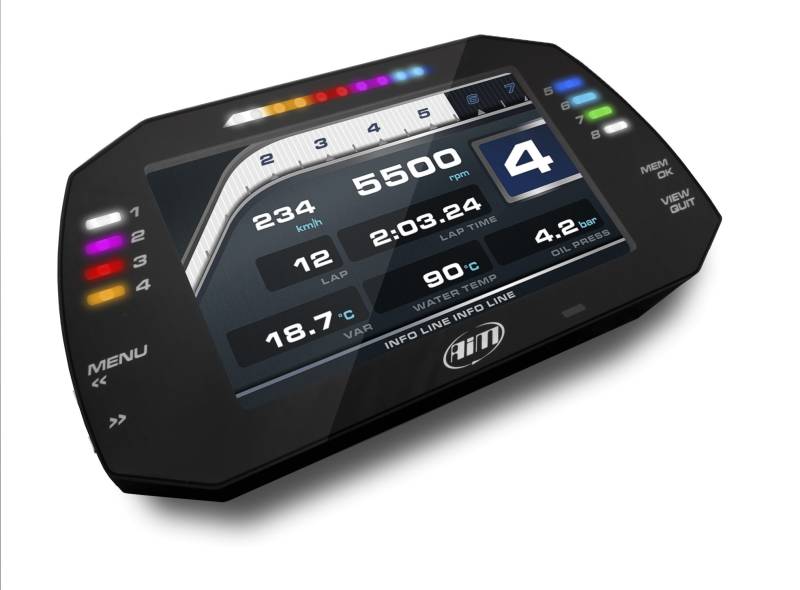

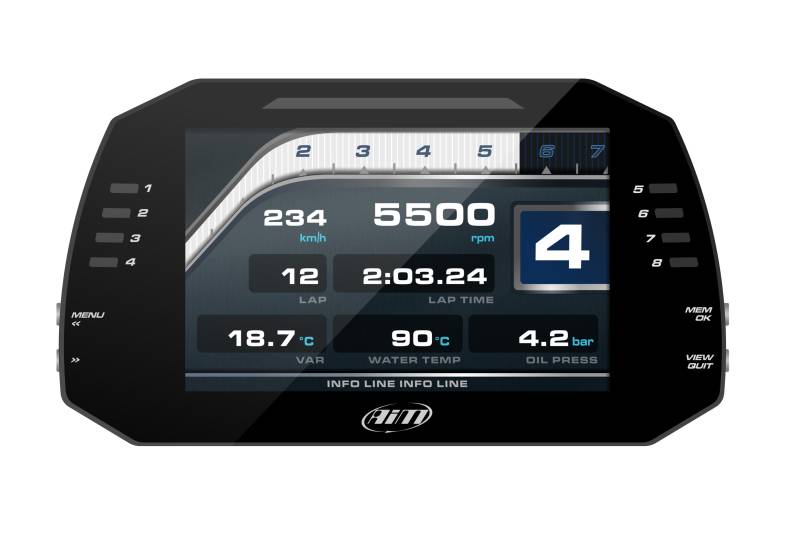

The 7” MXG 1.2 Motorcycle Dash Data Logger acquires data from your engine ECU, internal accelerometer, internal Gyro...
Included:

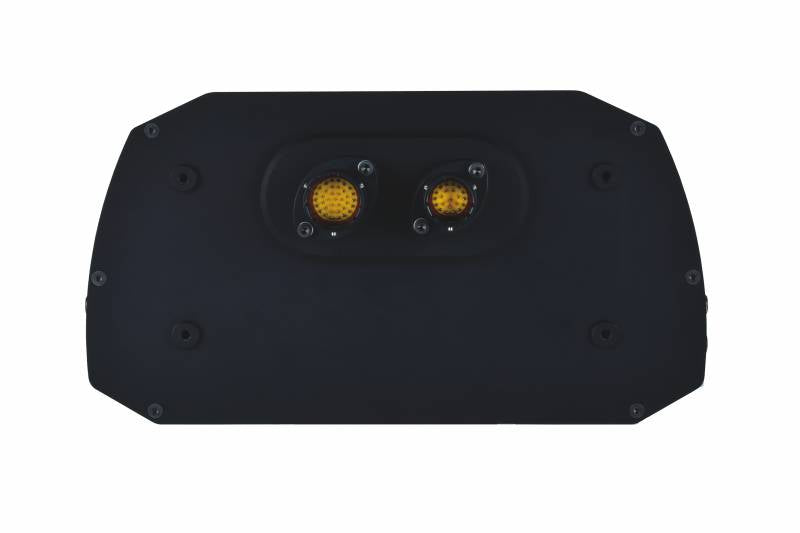

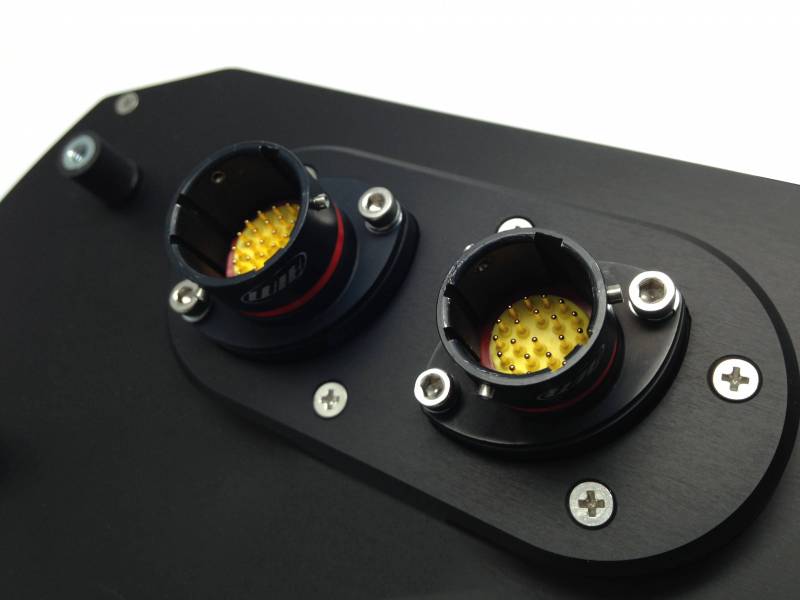

37-pin primary harness with bulkhead adaptor
1.3m GPS08 module
USB download cable

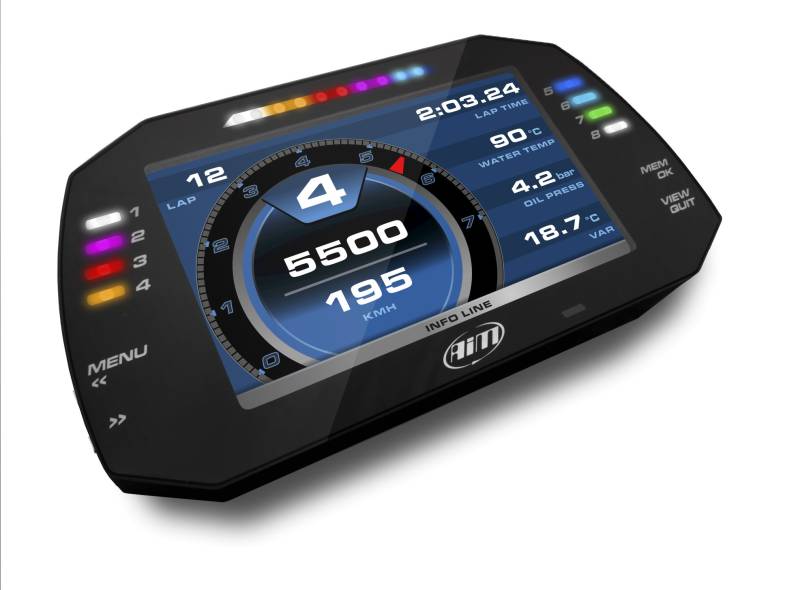

The 7” MXG 1.2 Motorcycle Dash Data Logger acquires data from your engine ECU, internal accelerometer, internal Gyro and GPS08 Module. Perfect for wider view.
A Wide Range of Data Sources

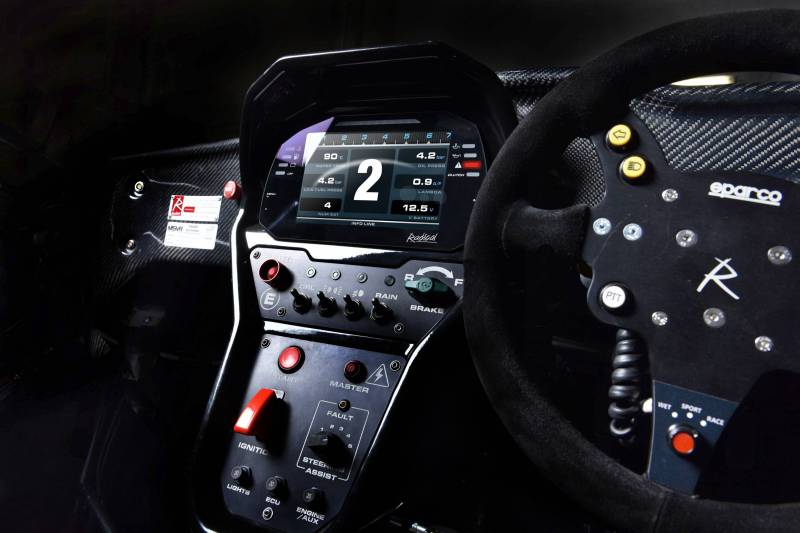

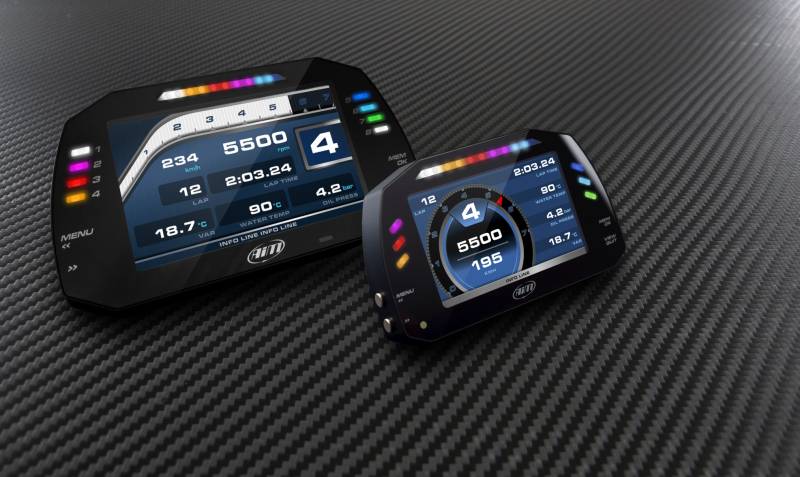

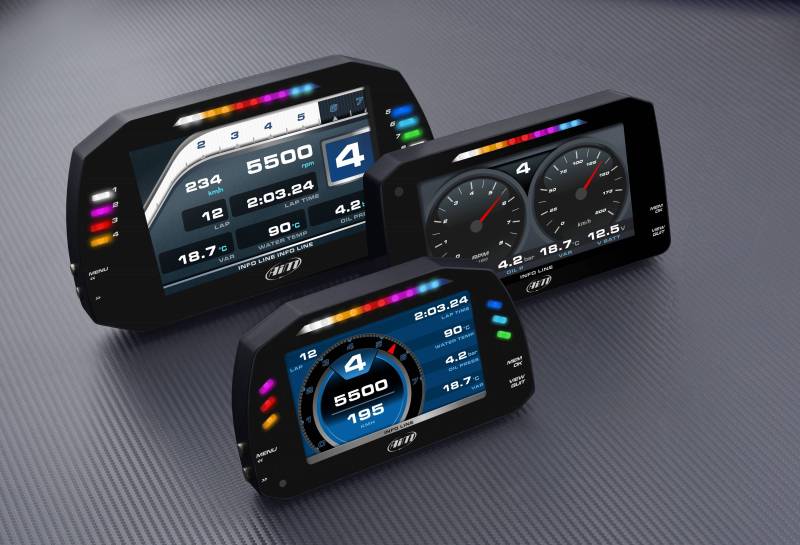

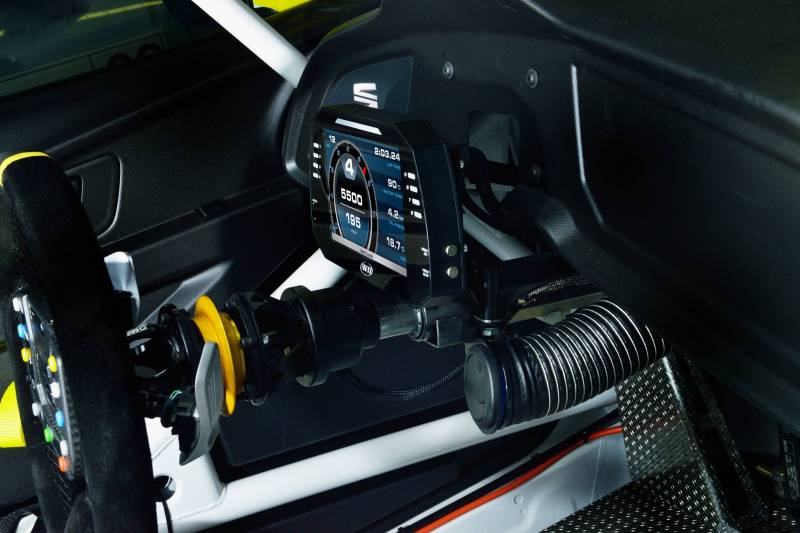

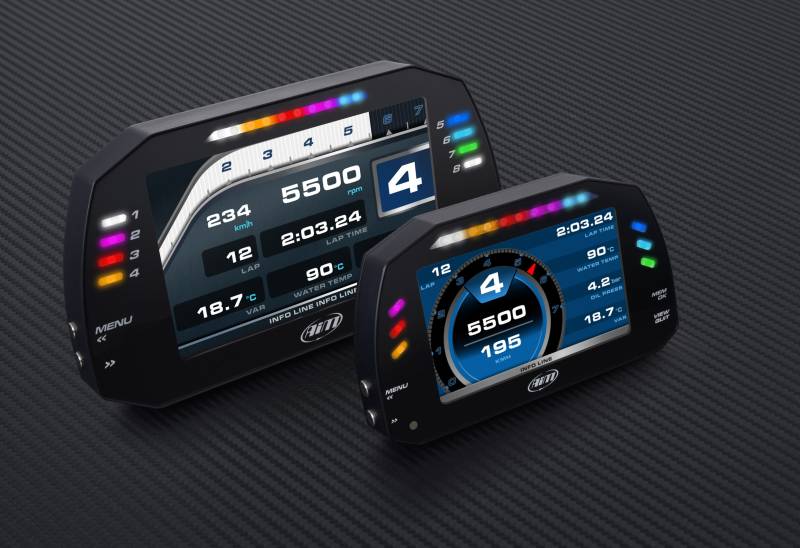

Performance and data acquired can also be incremented adding up to eight expansion modules. The only difference between the two is the MXS is a compact 5? display and Aim MXG 1.2 is a 7? display, a better fit for wide cockpit installations.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

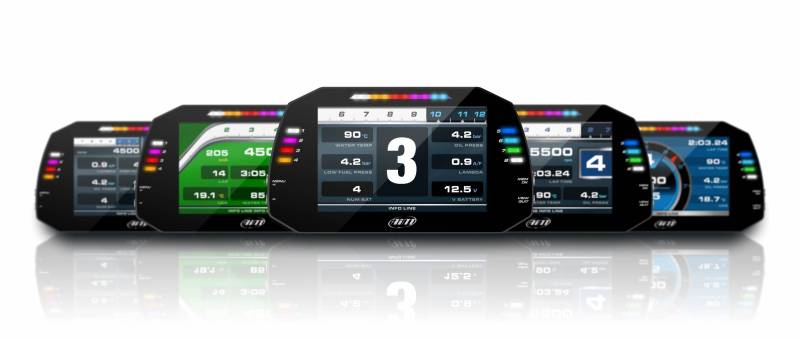

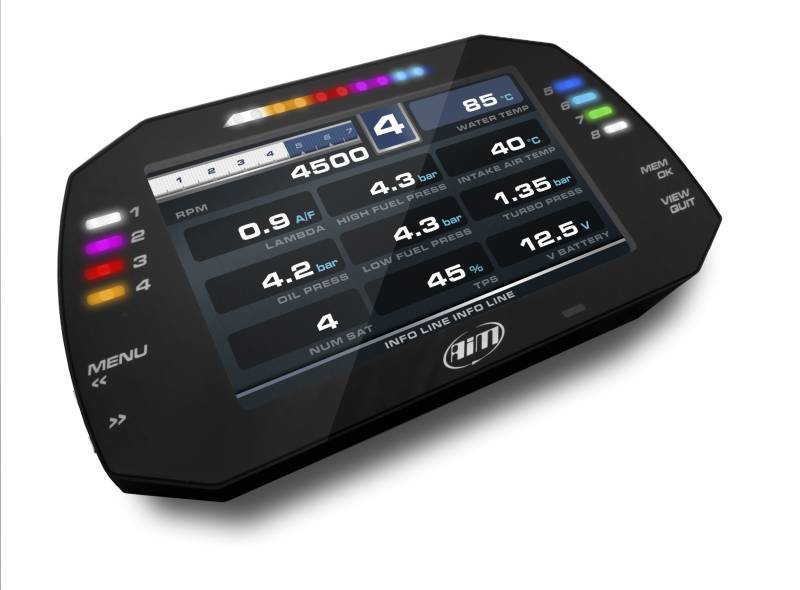

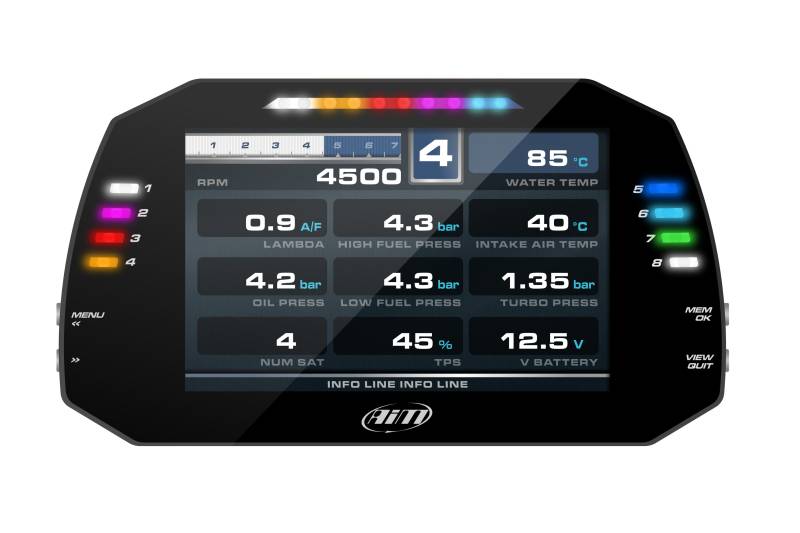

Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.

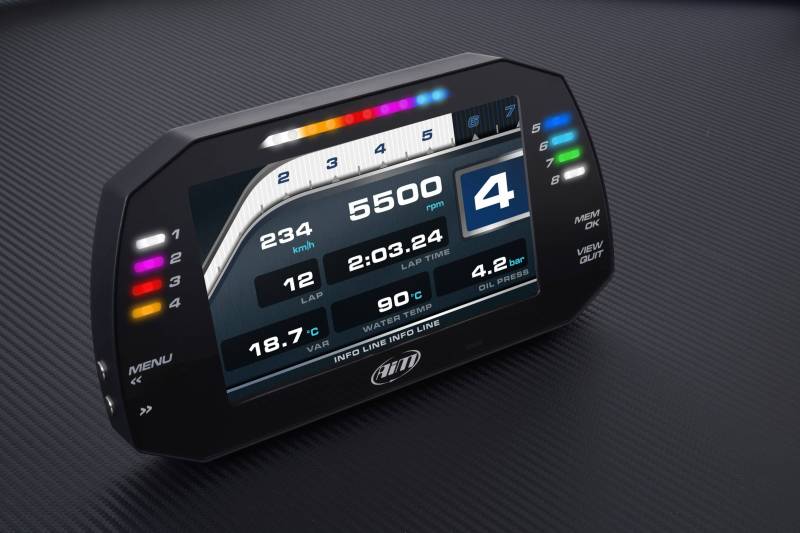

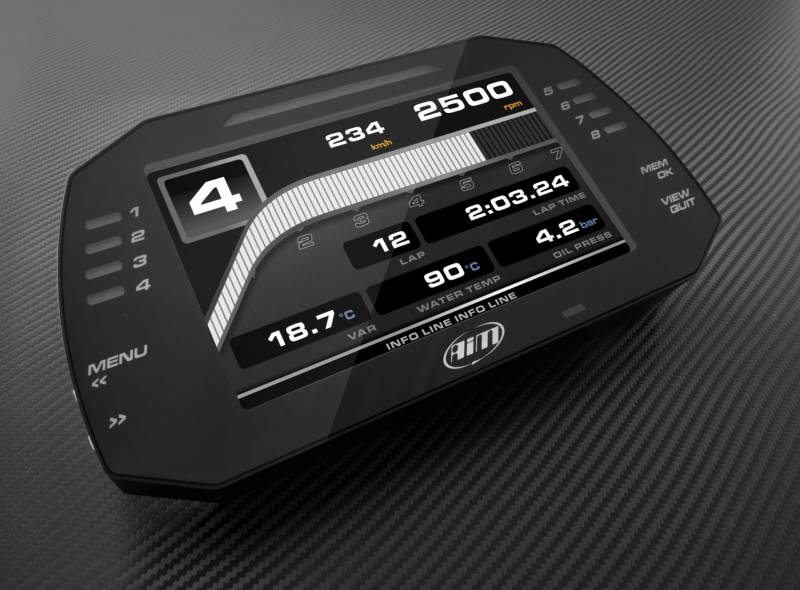

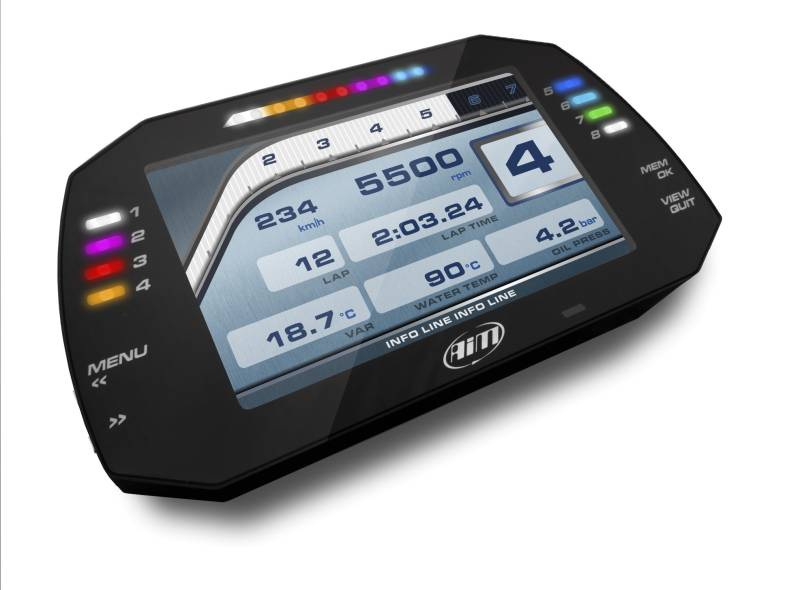

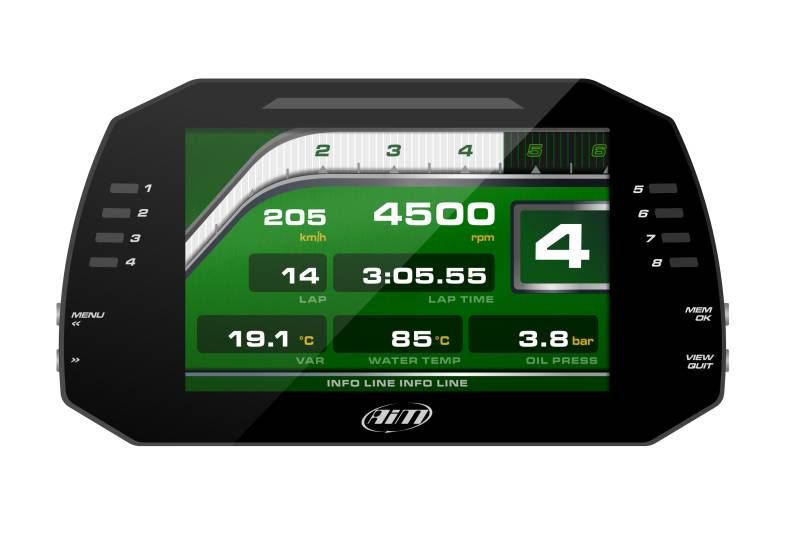

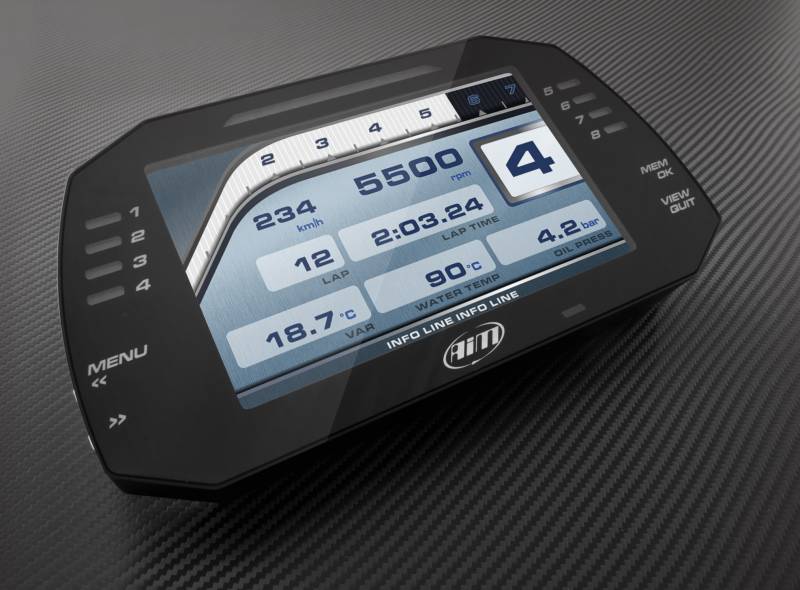

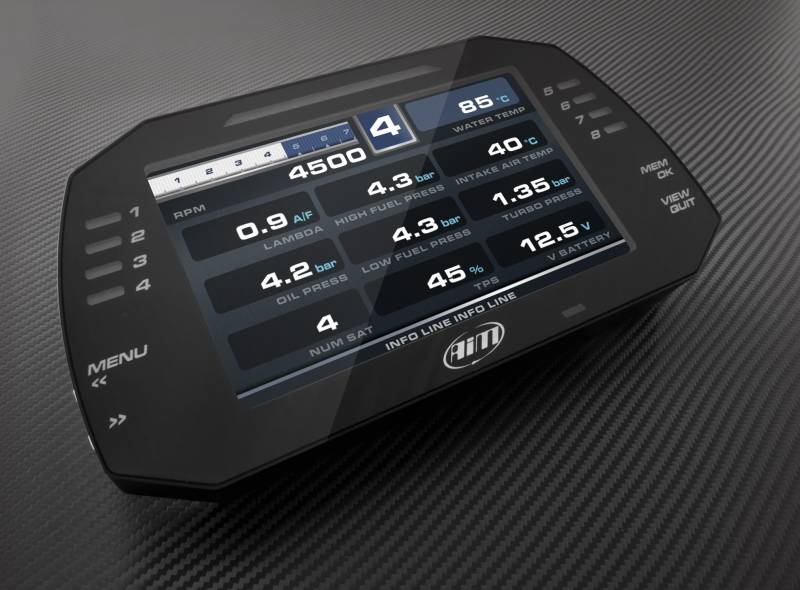

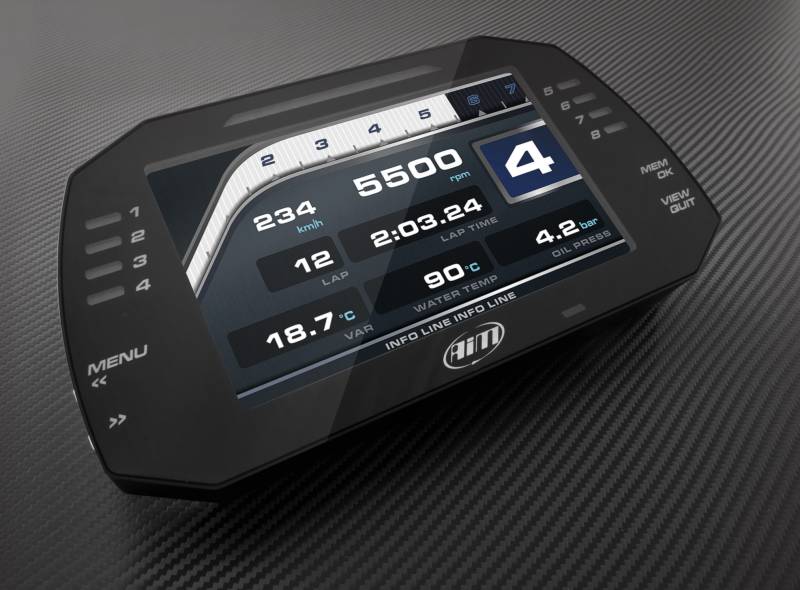

High Contrast 7? TFT display

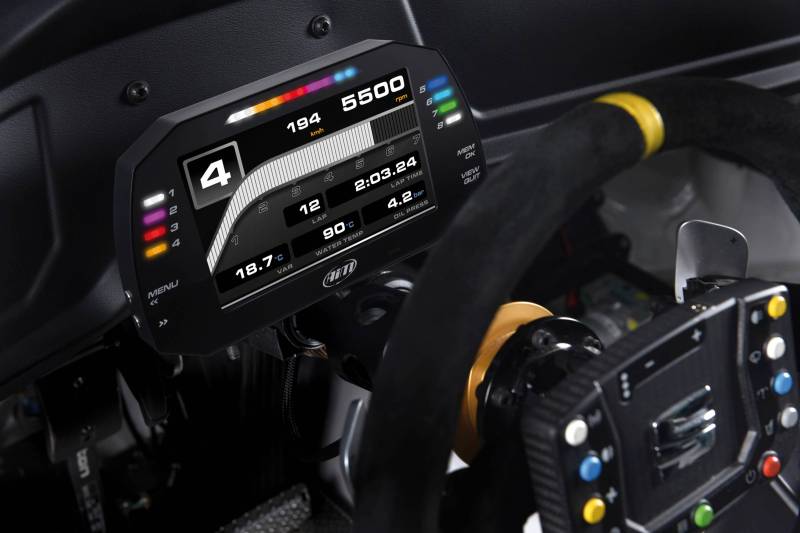

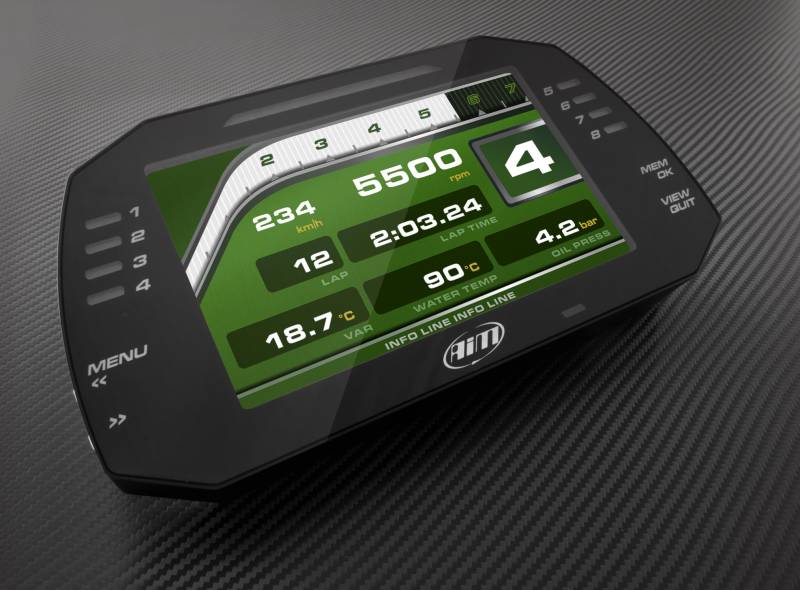

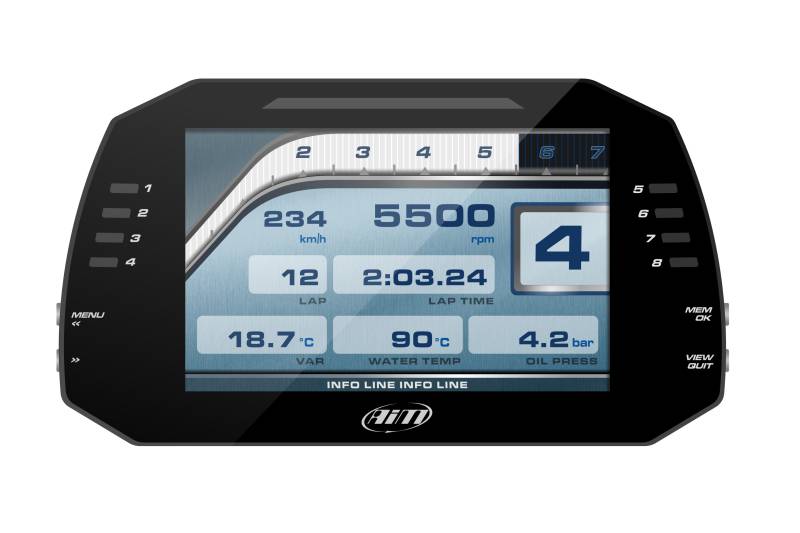

The MXG 1.2 Motorcycle Dash Data logger features a high contrast 7? TFT display, fully configurable by a dedicated software. An ambient light sensor keeps the back light at optimum brightness levels.
Flexible Alarms

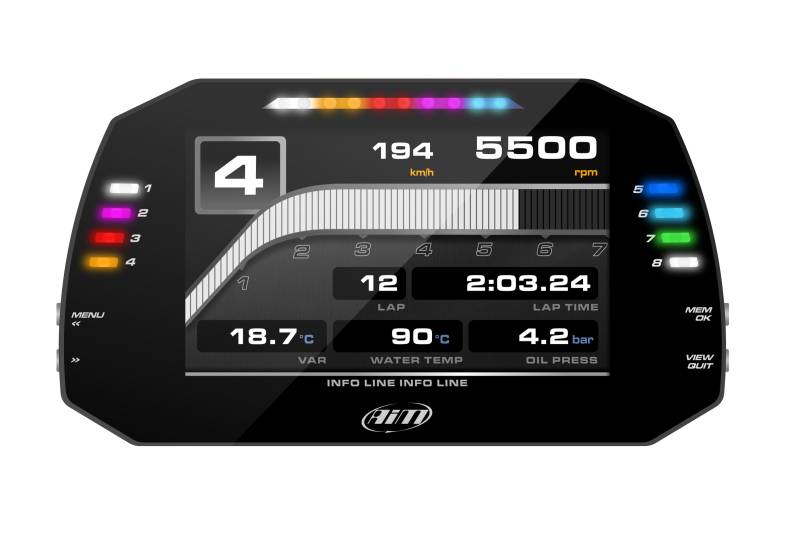

MXG 1.2 features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colours. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.
Two Digital Outputs
Aim MXG 1.2 Motorcycle Dash Data logger features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/deactivate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera inputs, also for mirror camera
Two analogue camera inputs are available, to swap your display into a mirror camera, through push button command or event management.

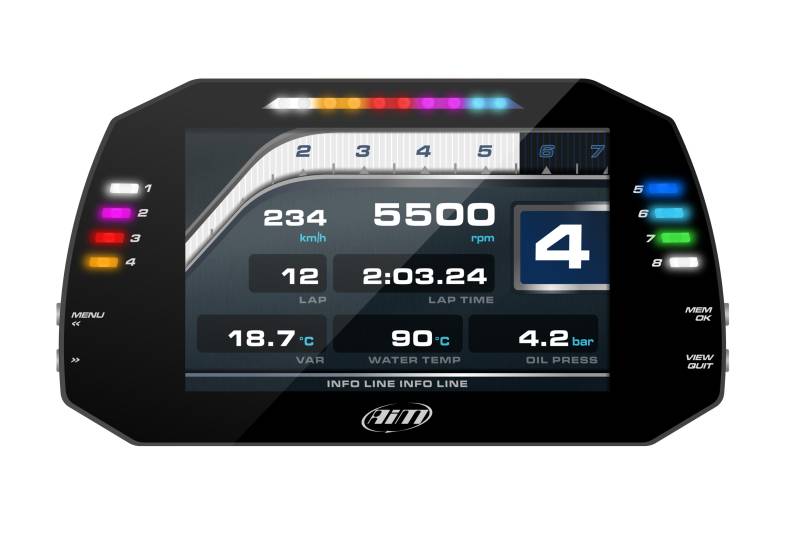

Integrated Shift Light Array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required.
Expand the system, according to your needs
Using the built-in CAN bus, you can add expansion modules to the MXG 1.2 to increment the performance and the data acquired:
GPS08 Module
Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
Channel Expansion
It permits to add 4 0-5Volt analogue channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
TC Hub
It adds 4 K thermocouples.
LCU-One CAN
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
Connection Example
Race Studio 3
Race Studio 3 is the heart of your Aim MXG 1.2 Motorcycle Dash Data logger managing all your racing activities.
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded by MXS 1.2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances
Wi-Fi Connectivity
Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 metres away.
