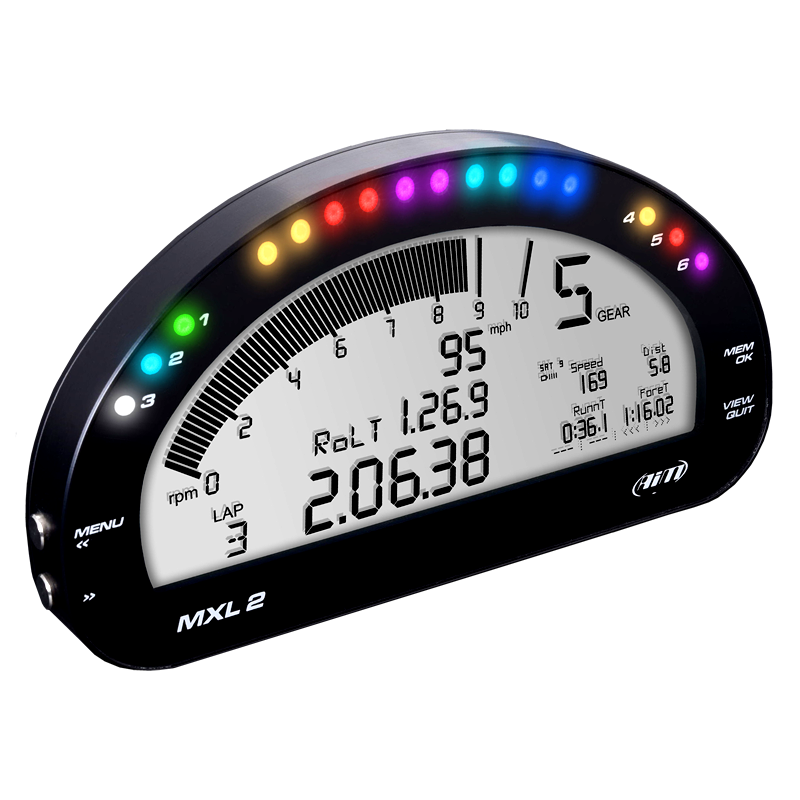

AiM MXL2 Motorcycle Racing Data Logger

The Aim MXL2 Motorcycle Racing, Dash Data logger, displays all the critical data needed by professional racing riders, to monitor your motorcycle and personal performance.

A wide range of data sources

MXL2 acquires and displays data from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules.

Custom pages

You can define up to eight different custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Here, examples of pages with 1, 2, 3 or 4 different data.

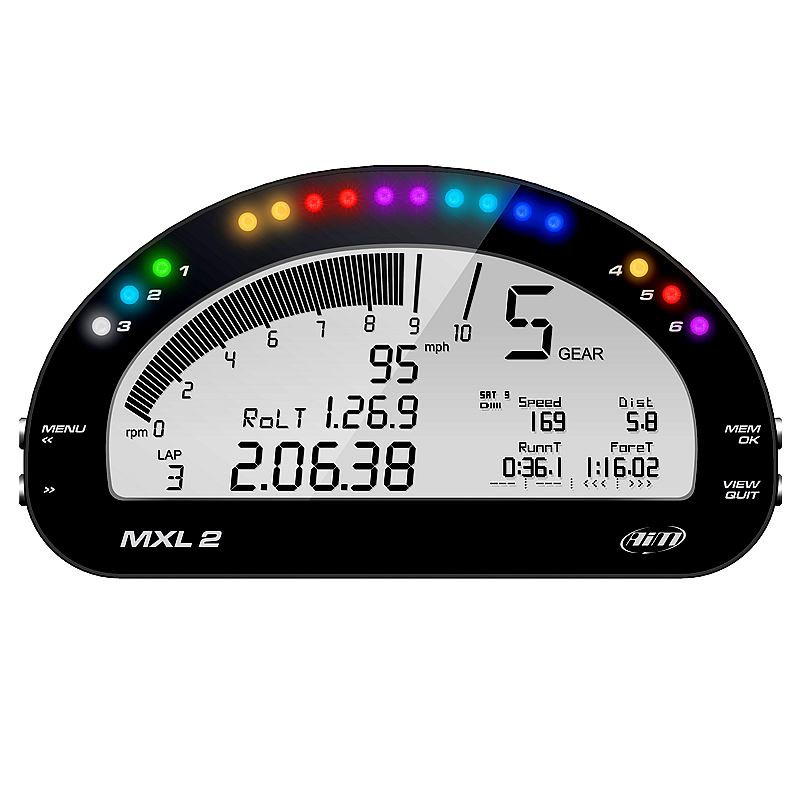

Sharp liquid crystal

The Aim MXL2 Motorcycle Racing Data Logger features a high contrast traditional LCD, with a black to white ratio nearly double its predecessor, fused with a graphical LCD offering great flexibility in information display and alerts. The MXL2 now offers a dual coloured back-light of high contrast white and red which can also be changed conditionally. An ambient light sensor keeps the back-light at optimum brightness levels.

Flexible alarms

Six different alarm LEDs: you choose the conditions, the colors and the flashing frequency. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, GPS information or math channels. You can also associate an alarm LED a message and a digital output with each event.

Two Digital Outputs

MXL2 Motorcycle Racing Data Logger features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Integrated Shift Light Array

An integrated shift light is a hallmark of the MXL, but an even better 10 LED shift light array is found in the MXL2. Choose from a host of advanced multicolour RGB shift light patterns that can be customised to your liking, and for each unique gear when required.

MXL2 Connection Examples

Race Studio 3

Race Studio 3 is the heart of your MXL2, managing all your racing activities. The Race Studio 3 can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.

WIFI Connectivity

Configure, calibrate, and download your data wirelessly over a secure 802.11 Wi-Fi connection.
