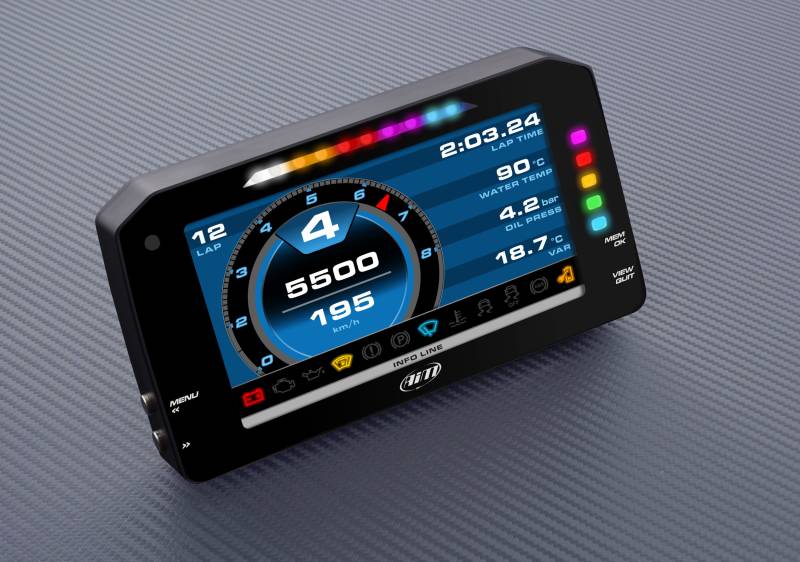

AiM MXP GPS 2 Meter Motorcycle Dash Logger

The 6” MXP Motorcycle Dash Data Logger has integrated shift array, configurable multi-colour alarms, Wi-Fi & USB connectivity, GPS, inertial platform, analogue and digital outputs.

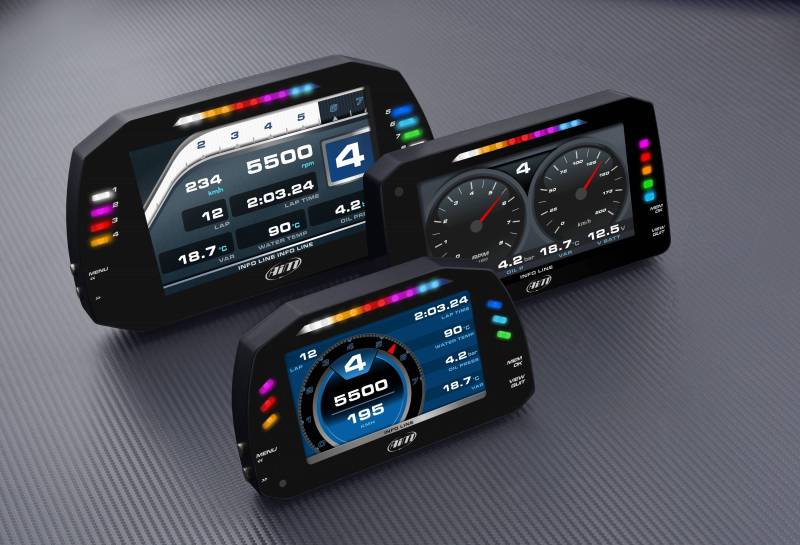

The MXP Motorcycle Dash Data Logger offers 50% more display area than the 5'' MXS display, in a similar dimension. The dash logger has an integrated shift array, configurable multicolour alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS Module, inertial platform, analogue and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.

MXP samples data coming from your ECU, the GPS Module, the 9 axis inertial platform (accelerometer, gyro and magnetometer), 8 fully configurable analogue inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.

MXP is also available in its STRADA version, a dash for road use, with similar characteristics but without logging feature.

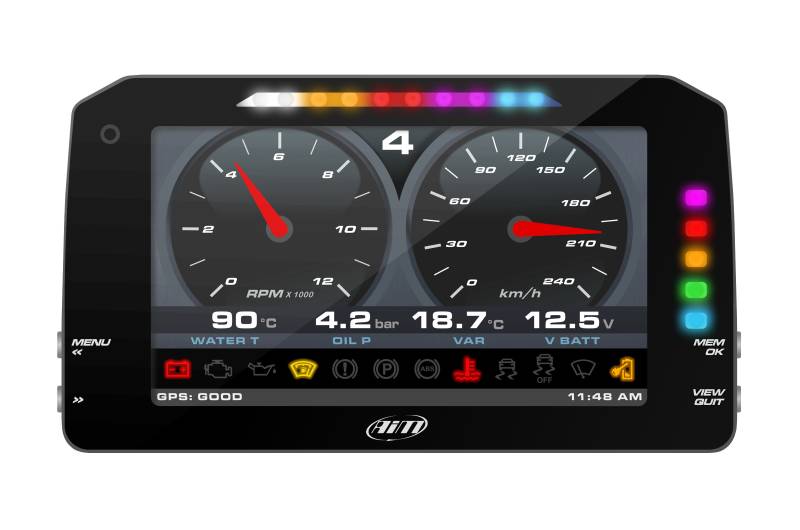

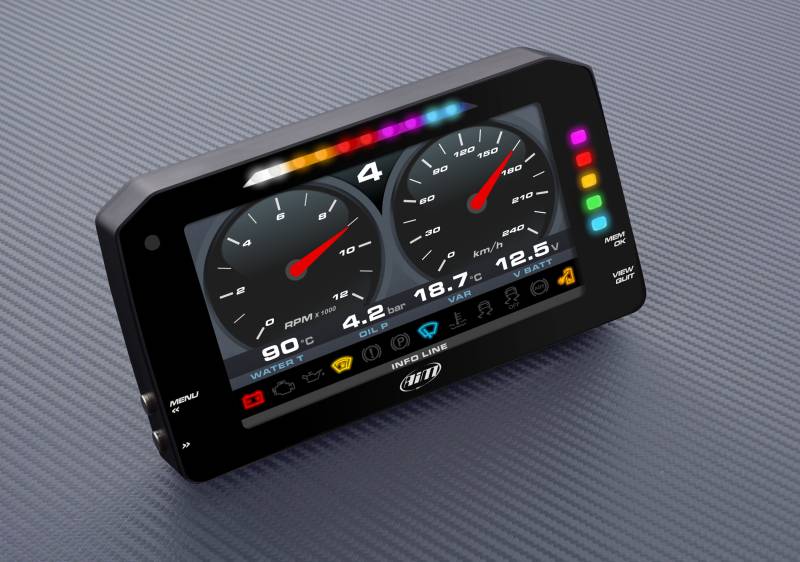

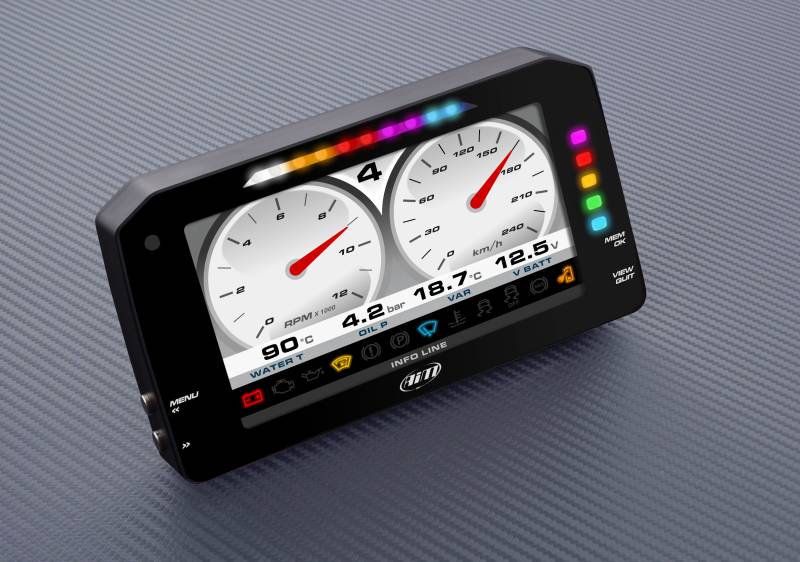

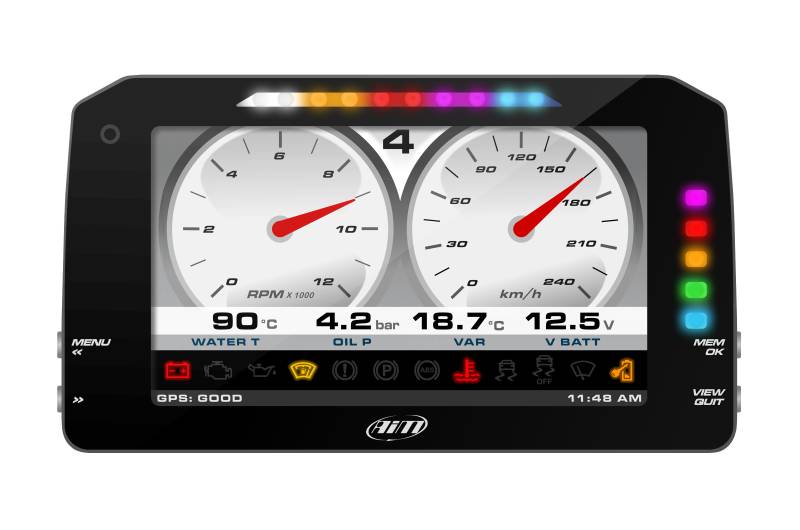

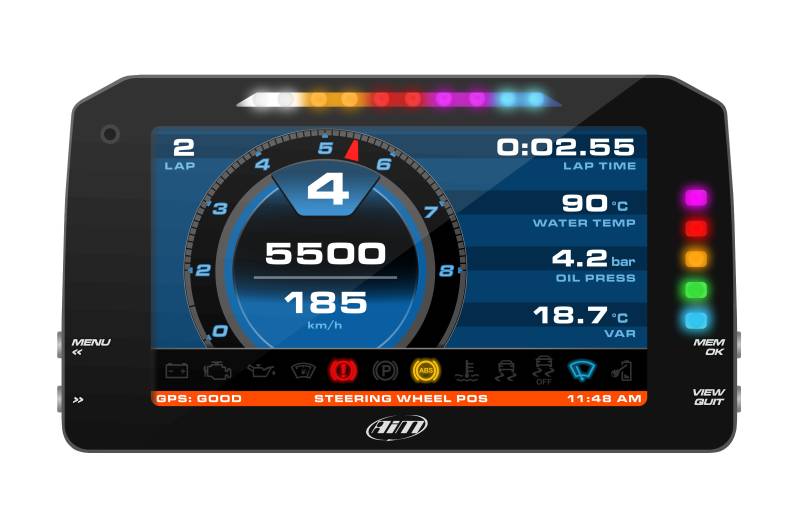

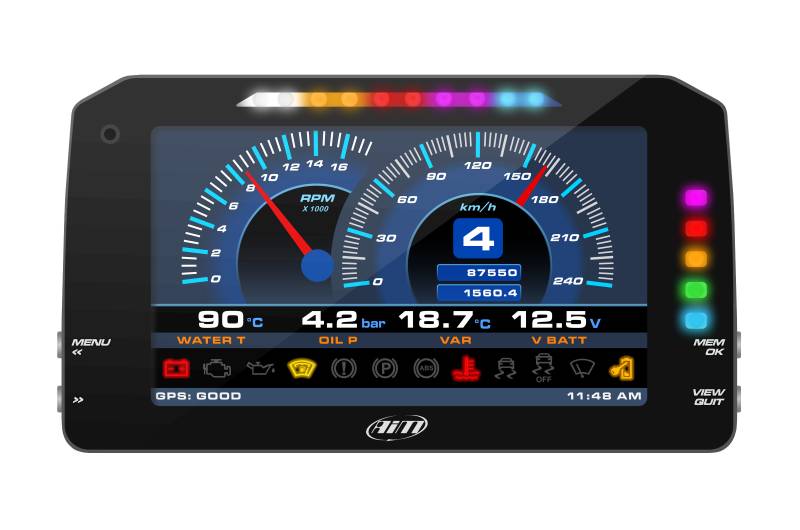

Freely configurable pages

High Contrast TFT Display

MXP Motorcycle Dash Data Logger features a high contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the back light at the best brightness levels. The dash is of course available also in the “Street Icons” version (fuel, oil, water temp etc.)

Flexible alarms & custom street icons

MXP features five configurable RGB alarm LED's. You choose the conditions, you choose the colours. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Select then the street icons you need among the wide list you will find in “Race Studio 3 – Icons Management” and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn’t be enough, you will be able to upload and set up your own customised icons.

Two Digital Outputs

Camera inputs, also for mirror camera

Two analogue camera inputs are available, to swap your display into a mirror camera, through push button command or event management.

Integrated shift light array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customised as you like and also for each unique gear when required.

Aim MXP Connection Examples

CAN output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Race Studio 3

Analysis

With Race Studio 3 you can also analyse all data recorded by MXS 1.2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances

Wi-Fi connectivity

Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 metres away.
